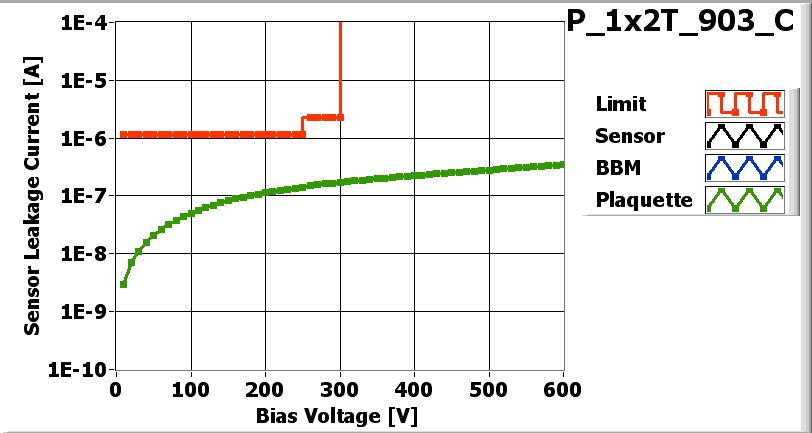

![[IMAGE] of](P_1x2T_903_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2T_903_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 236 V |
| Operational Voltage 276 V |
Parts committed by Bolla Gino on date 01/01/2001
| Part | ID |
|---|---|
| BBM | UNKNOWN |
| VHDI | UNKNOWN |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | UNKNOWN | UNKNOWN |
| ROC1 | UNKNOWN | UNKNOWN |
Inspected by Bolla Gino on date 01/01/2001
| LR_dev | 0.000 |
| LL_dev | 0.000 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Bolla Gino | NONE |
PLAQUETTE made READY for ENCAPSULATION on 01/01/2001 by Bolla Gino
PLAQUETTE encapsulated on 01/01/2001 by Bolla Gino
PLAQUETTE made READY for testing on 01/01/2001 by Bolla Gino
P_1x2T_903_Con 10/2/2007 12:46 PM
P_1x2T_903_Con 10/2/2007 12:46 PM
PLAQUETTE TESTED on 2007-10-02 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 172 | 168 | |
| Vana | 156 | 133 | |
| Cal_Del | 57 | 79 | |
| Vthrs_Comp | 90 | 74 | |
| Unbumped | 1 | 1 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 1 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

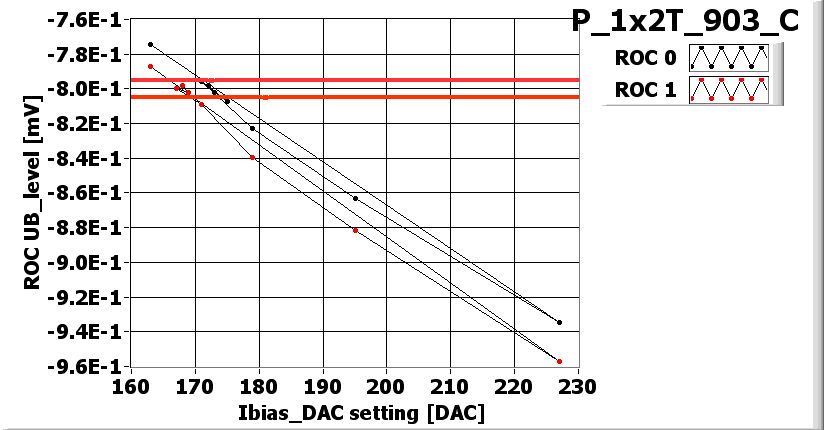

![[IMAGE] of](P_1x2T_903_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

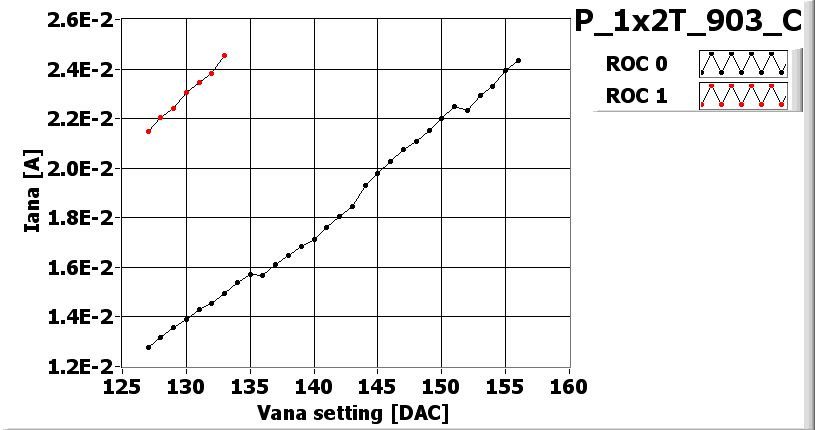

![[IMAGE] of](P_1x2T_903_C_Vana.jpg) |
VANA_XML-File |

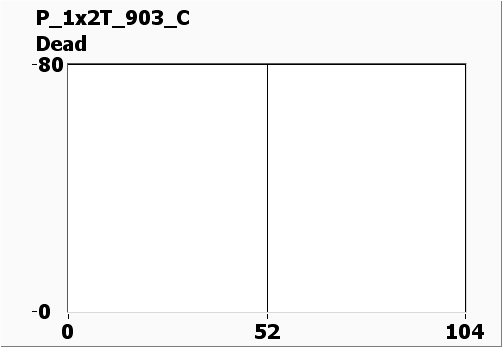

![[IMAGE] of](P_1x2T_903_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2T_903_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |

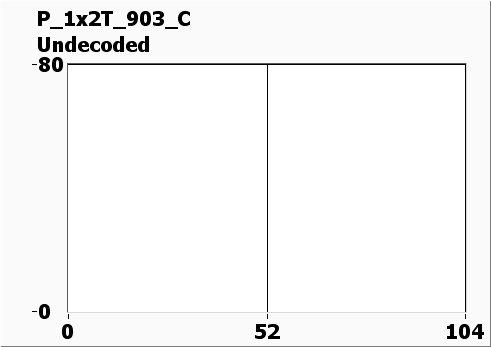

![[IMAGE] of](P_1x2T_903_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2T_903_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 115 |
| Vsf | 155 | 140 |
| VoffsetOp | 125 | 90 |
| VIbias_PH | 100 | 95 |

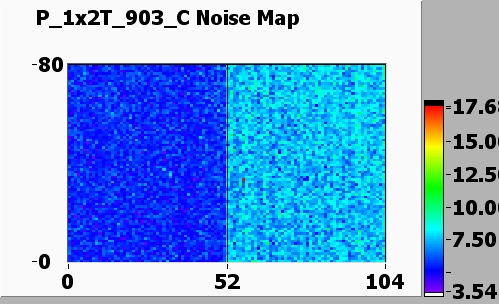

Noise MAP at VMAX
![[IMAGE] of](P_1x2T_903_C-580-noise.jpg)

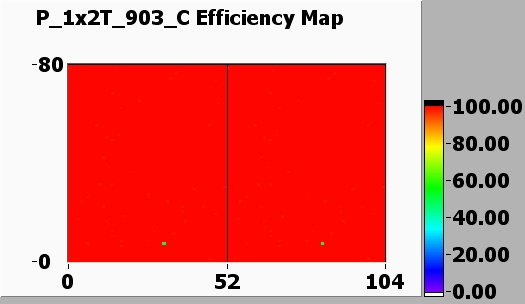

Efficiency MAP
![[IMAGE] of](P_1x2T_903_C-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_1x2T_903_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2T_903_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
