P_1x2T_901_C-1

Production testing

Date:10/2/2007

Operator: GG

start testing time:12:19 PM

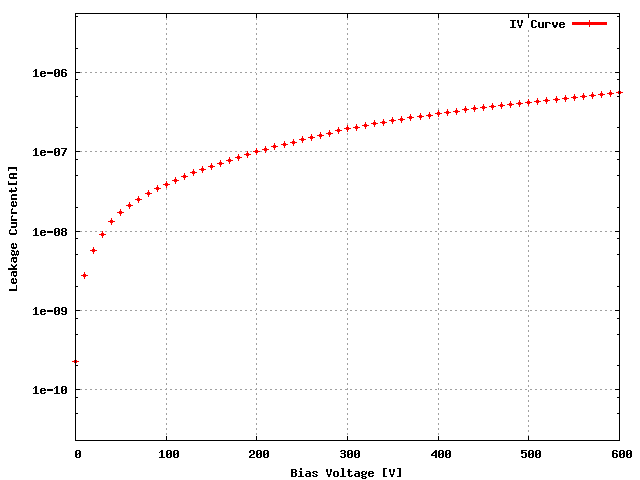

Sensor: S_1x2T_90, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0UNKNOWNUNKNOWN
ROC1UNKNOWNUNKNOWN

Depletion Voltage is -244 and suggested operational voltage is -284
Ibias_DAC, Ibias_DAC Data 158 158
Vana, VanaData 145 148
CalDelData and plots6982
VthrCompData and plots8279
TestDdata ,TestD Plots206
LightData ,Light Plots405240
Pass/Fail TestD GOOD GOOD
Pass/Fail LIGHT BAD BAD

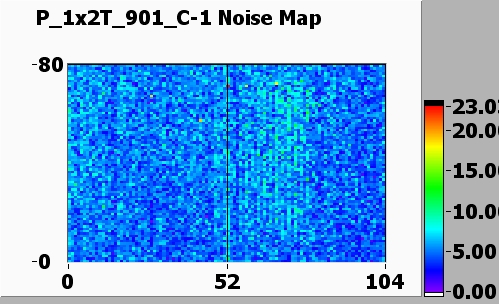

Noise MAP at VMAX

[IMAGE] of

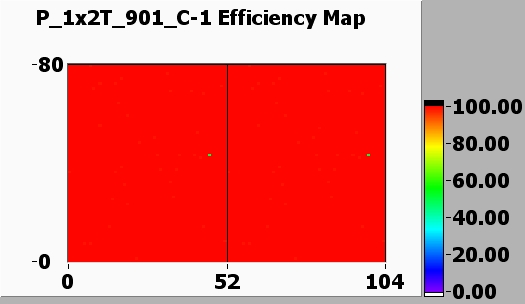

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe8590
Vsf145145
VoffsetOp10095
VIbias_PH100100
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.366788

SIGMA = 0.312959

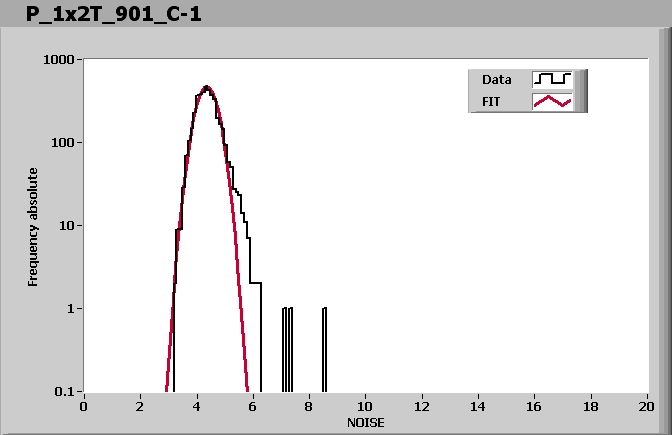

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.348521

SIGMA = 0.347343

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_1x2T_901_C.html,

End testing time: 12:45 PM
