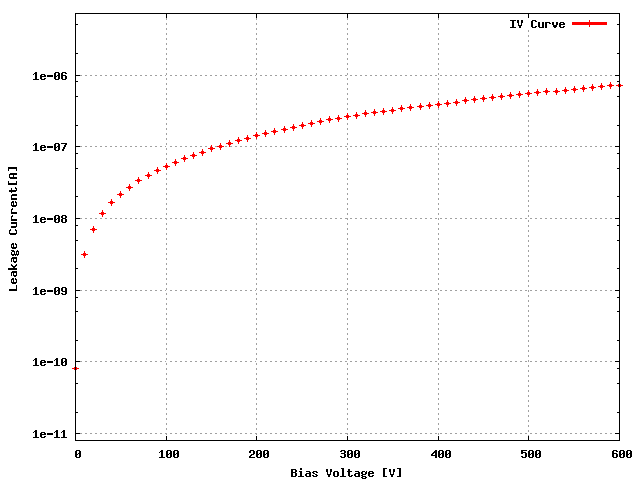

Sensor: S_1x2T_90, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| Ibias_DAC, Ibias_DAC Data | 158 | 158 |
| Vana, VanaData | 145 | 148 |
| CalDelData and plots | 69 | 82 |
| VthrCompData and plots | 82 | 79 | Depletion Voltage is -432 and suggested operational voltage is -472
| TestDdata ,TestD Plots | 5 | 1 |
| LightData ,Light Plots | 404 | 240 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | BAD | BAD |
Noise MAP at VMAX
![[IMAGE] of](P_1x2T_901_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2T_901_C-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 85 | 90 |
| Vsf | 145 | 145 |
| VoffsetOp | 100 | 95 |
| VIbias_PH | 100 | 100 |

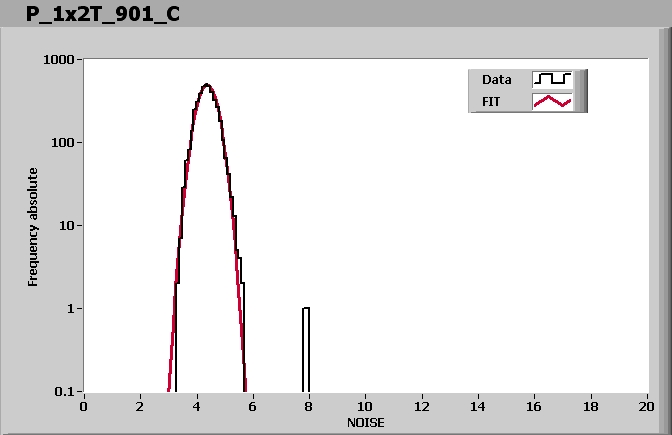

| ROC0 NOISE | ![[IMAGE] of](P_1x2T_901_C-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2T_901_C-580-noise-ROC0-HISTO.jpg) | MEAN = 4.361521SIGMA = 0.331469 |

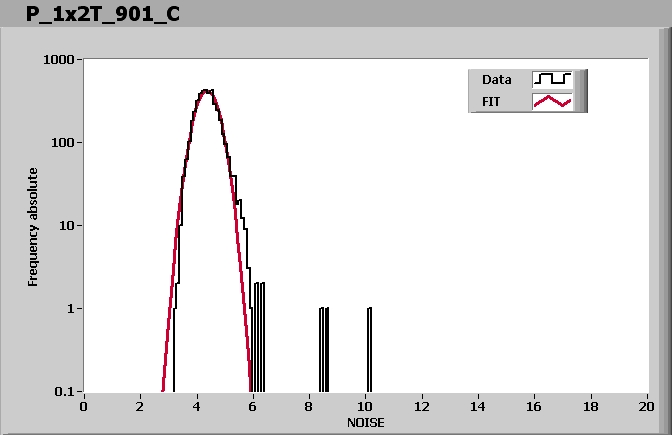

| ROC1 NOISE | ![[IMAGE] of](P_1x2T_901_C-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2T_901_C-580-noise-ROC1-HISTO.jpg) | MEAN = 4.357569SIGMA = 0.381378 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 11:45 AM
