![[IMAGE] of](P_1x2T_135_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

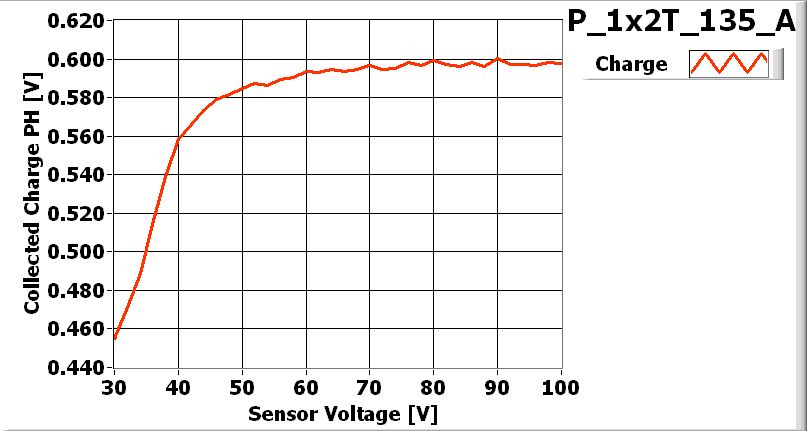

![[IMAGE] of](P_1x2T_135_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 01/01/2001
| Part | ID |
|---|---|
| BBM | BBM__135-1x1 |
| VHDI | 1x2R_690 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XD4K3LT | 20B |
| ROC1 | D3LQC5T | 44A |
Inspected by Bolla Gino on date 01/01/2001
| LR_dev | 0.000 |
| LL_dev | 0.000 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Bolla Gino | NONE |
PLAQUETTE made READY for ENCAPSULATION on 01/01/2001 by Bolla Gino
P_1x2T_135_Aon 11/8/2007 4:41 PM
P_1x2T_135_Aon 11/8/2007 4:41 PM
PLAQUETTE TESTED on 2007-11-08 by GIno
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 138 | 150 | |
| Vana | 118 | 150 | |
| Cal_Del | 79 | 95 | |
| Vthrs_Comp | 72 | 85 | |
| Unbumped | 1 | 4158 | |
| Dead | 0 | 1 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 1 | 4159 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

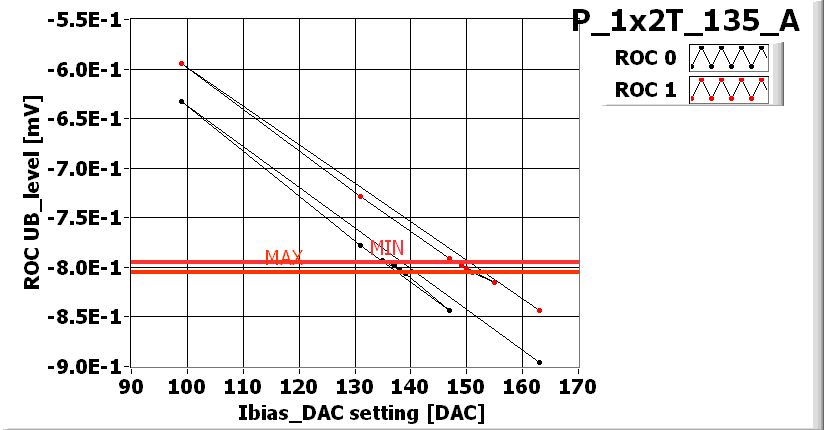

![[IMAGE] of](P_1x2T_135_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

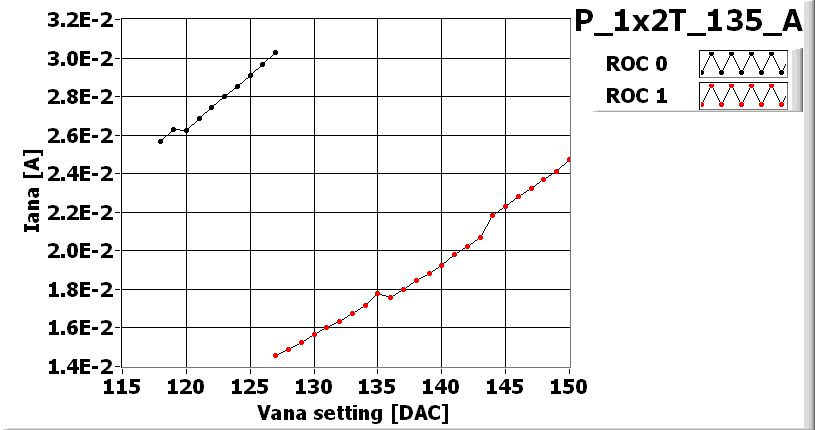

![[IMAGE] of](P_1x2T_135_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2T_135_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2T_135_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2T_135_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |

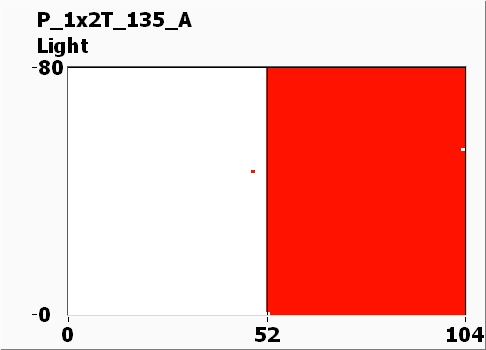

![[IMAGE] of](P_1x2T_135_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 130 | 95 |
| Vsf | 140 | 150 |
| VoffsetOp | 65 | 105 |
| VIbias_PH | 105 | 100 |

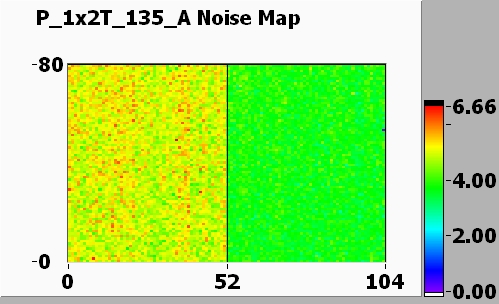

Noise MAP at VMAX
![[IMAGE] of](P_1x2T_135_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2T_135_A-580-efficiency.jpg)

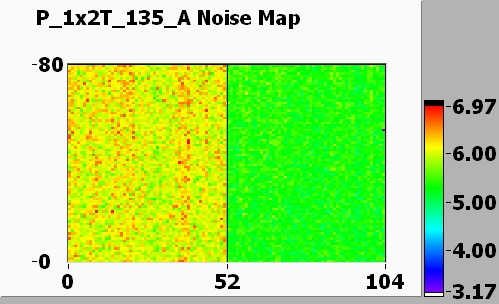

Noise MAP at -200 V
![[IMAGE] of](P_1x2T_135_A-200-noise.jpg)

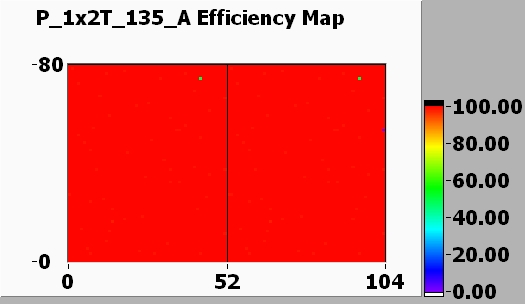

Efficiency MAP
![[IMAGE] of](P_1x2T_135_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
