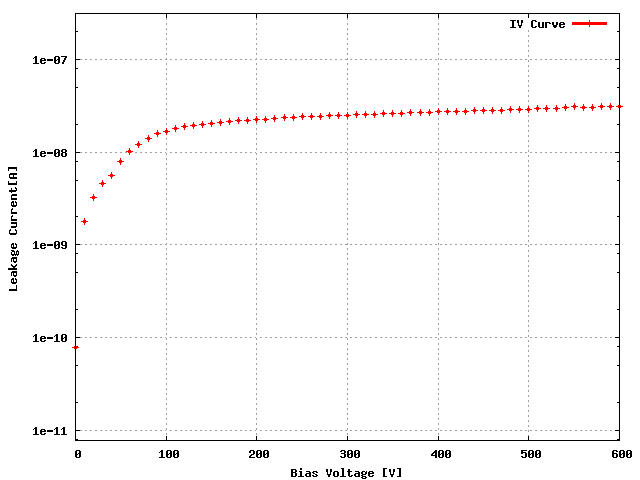

Sensor: S_1x2T_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XD4K3LT | 20B |
| ROC1 | D3LQC5T | 44A |
| Ibias_DAC, Ibias_DAC Data | 138 | 150 |
| Vana, VanaData | 118 | 150 |
| CalDelData and plots | 79 | 95 |
| VthrCompData and plots | 72 | 85 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 3 | 3940 |
| LightData ,Light Plots | 1 | 4158 |
| Pass/Fail TestD | GOOD | BAD |
| Pass/Fail LIGHT | GOOD | BAD |
Noise MAP at VMAX
![[IMAGE] of](P_1x2T_135_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2T_135_A-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 130 | 95 |
| Vsf | 140 | 150 |
| VoffsetOp | 65 | 105 |
| VIbias_PH | 105 | 100 |
| ROC0 NOISE | ![[IMAGE] of](P_1x2T_135_A-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2T_135_A-580-noise-ROC0-HISTO.jpg) | MEAN = 5.093774SIGMA = 0.406872 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2T_135_A-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2T_135_A-580-noise-ROC1-HISTO.jpg) | MEAN = 3.793896SIGMA = 0.308356 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 5:10 PM
