P_1x2R_178_C-1

Production testing

Date:5/15/2007

Operator: Emily Grace

start testing time:3:40 PM

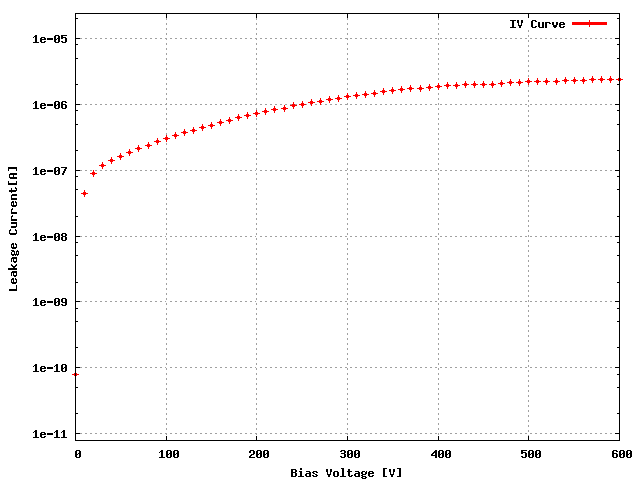

Sensor: S_1x2R_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0KFNG13T18B
ROC1KFNG13T28D

Depletion Voltage is -76 and suggested operational voltage is -116
Ibias_DAC, Ibias_DAC Data 166 170
Vana, VanaData 141 149
CalDelData and plots6773
VthrCompData and plots8785
TestDdata ,TestD Plots87
LightData ,Light Plots21
Pass/Fail TestD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe105100
Vsf145145
VoffsetOp9095
VIbias_PH105100

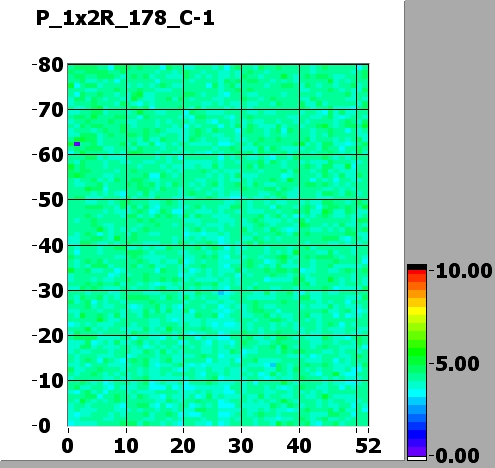

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.086624

SIGMA = 0.319158

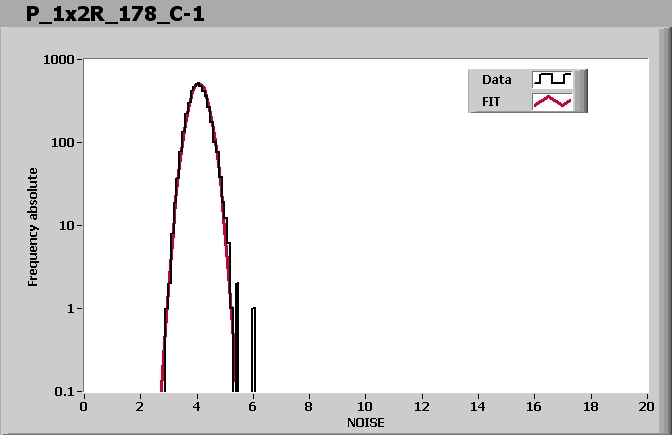

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.070305

SIGMA = 0.321067

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_1x2R_178_C.html,

End testing time: 4:03 PM
