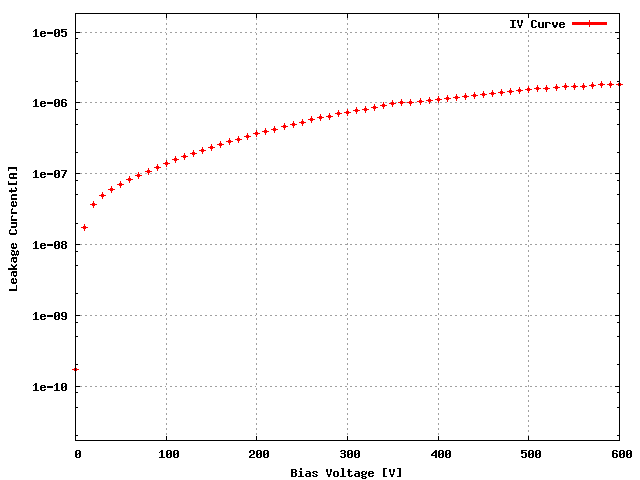

Sensor: S_1x2R_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KFNG13T | 18B |
| ROC1 | KFNG13T | 28D |
| Ibias_DAC, Ibias_DAC Data | 166 | 170 |
| Vana, VanaData | 141 | 150 |
| CalDelData and plots | 67 | 73 |
| VthrCompData and plots | 87 | 86 | Depletion Voltage is -66 and suggested operational voltage is -106
| TestDdata ,TestD Plots | 10 | 3 |
| LightData ,Light Plots | 2 | 1 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP at VMAX
![[IMAGE] of](P_1x2R_178_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2R_178_C-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 100 | 100 |
| Vsf | 145 | 145 |
| VoffsetOp | 90 | 95 |
| VIbias_PH | 105 | 105 |

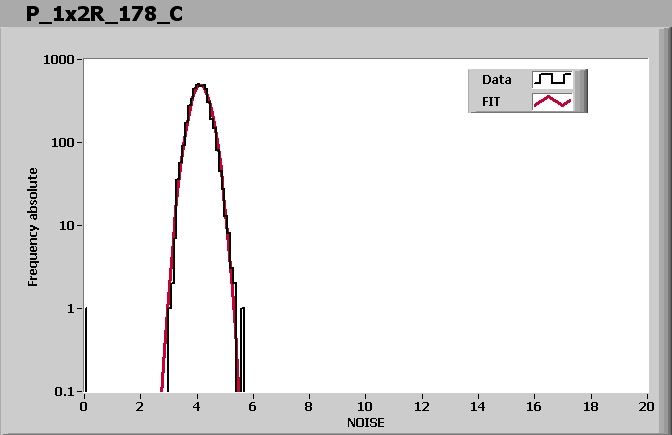

| ROC0 NOISE | ![[IMAGE] of](P_1x2R_178_C-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2R_178_C-580-noise-ROC0-HISTO.jpg) | MEAN = 4.127890SIGMA = 0.332762 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2R_178_C-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2R_178_C-580-noise-ROC1-HISTO.jpg) | MEAN = 4.160035SIGMA = 0.321109 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:38 PM
