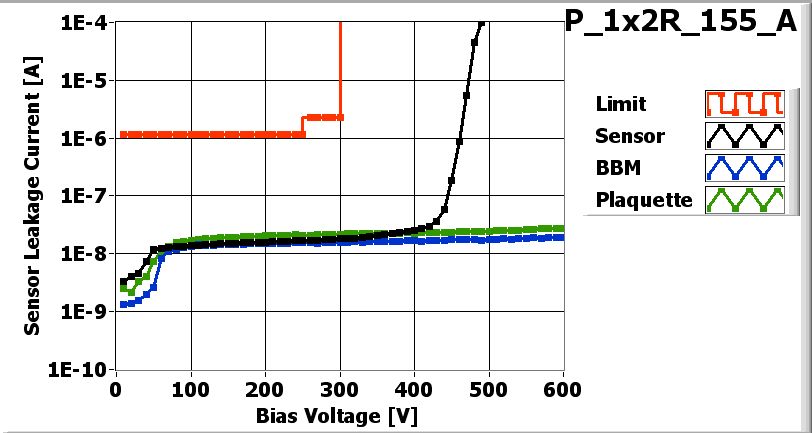

![[IMAGE] of](P_1x2R_155_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_155_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 42 V |
| Operational Voltage 82 V |
Parts committed by Bolla Gino on date 2/23/2007
| Part | ID |
|---|---|
| BBM | BBM_155-1x2T |
| VHDI | 1x2R_275 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W29_X64K5ST | 54A |
| ROC1 | W29_X64K5ST | 53B |
Inspected by Lockwood Gale on date 2/27/2007
| LR_dev | 0.022 |
| LL_dev | 0.026 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No problems. |
PLAQUETTE made READY for ENCAPSULATION on 2/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/1/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 3/1/2007 by Arndt Kirk
P_1x2R_155_Aon 3/2/2007 11:21 AM
P_1x2R_155_A-1on 3/2/2007 3:37 PM
P_1x2R_155_A-1on 3/2/2007 3:37 PM
PLAQUETTE TESTED on 2007-03-02 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 130 | 128 | |
| Vana | 128 | 141 | |
| Cal_Del | 83 | 62 | |
| Vthrs_Comp | 65 | 77 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

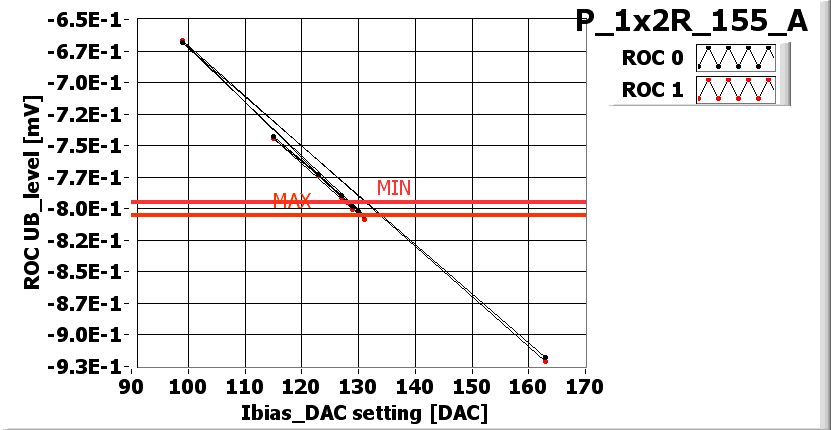

![[IMAGE] of](P_1x2R_155_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

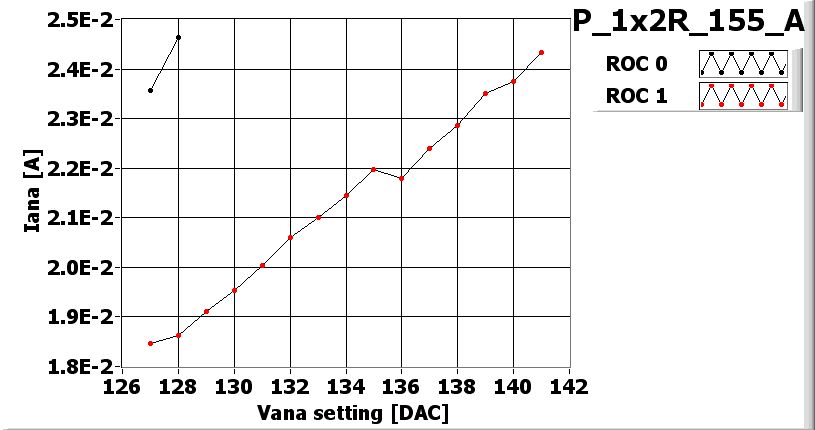

![[IMAGE] of](P_1x2R_155_A_Vana.jpg) |
VANA_XML-File |

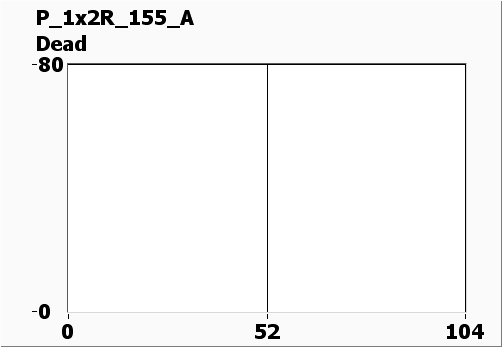

![[IMAGE] of](P_1x2R_155_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2R_155_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_155_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_155_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 110 | 110 |
| Vsf | 140 | 140 |
| VoffsetOp | 90 | 65 |
| VIbias_PH | 100 | 100 |

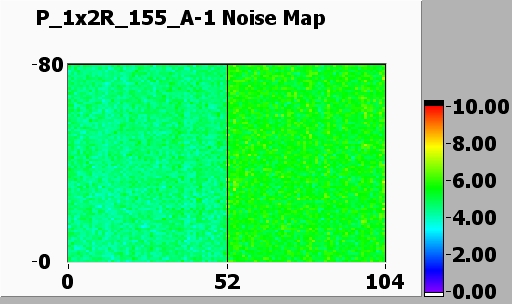

Noise MAP
![[IMAGE] of](P_1x2R_155_A-1-580-noise.jpg)

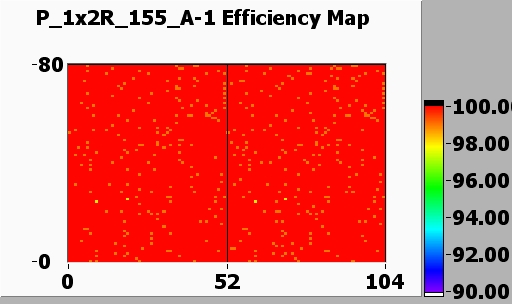

Efficiency MAP
![[IMAGE] of](P_1x2R_155_A-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
