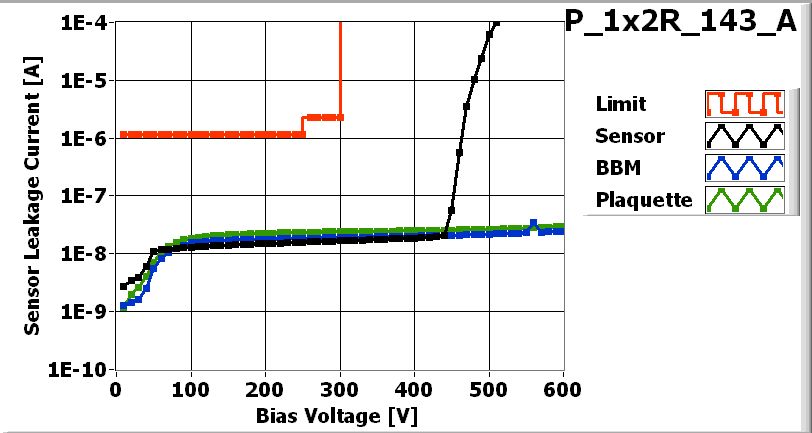

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_143_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 1/19/2007
| Part | ID |
|---|---|
| BBM | BBM_143-1x2T |
| VHDI | 1x2R_254 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W30_X74K5RT | 76D |
| ROC1 | W30_X74K5RT | 76C |
Inspected by Lockwood Gale on date 1/23/2007
| LR_dev | 0.025 |
| LL_dev | 0.046 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 1/23/2007 by Lockwood Gale
P_1x2R_143_Aon 1/23/2007 11:42 AM
P_1x2R_143_A-1on 1/23/2007 12:05 PM
P_1x2R_143_A-1on 1/23/2007 12:05 PM
PLAQUETTE TESTED on 2007-01-23 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 162 | 144 | |
| Vana | 142 | 131 | |
| Cal_Del | 75 | 77 | |
| Vthrs_Comp | 79 | 71 | |
| Unbumped | 0 | 1 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2R_143_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2R_143_A_Vana.jpg) |

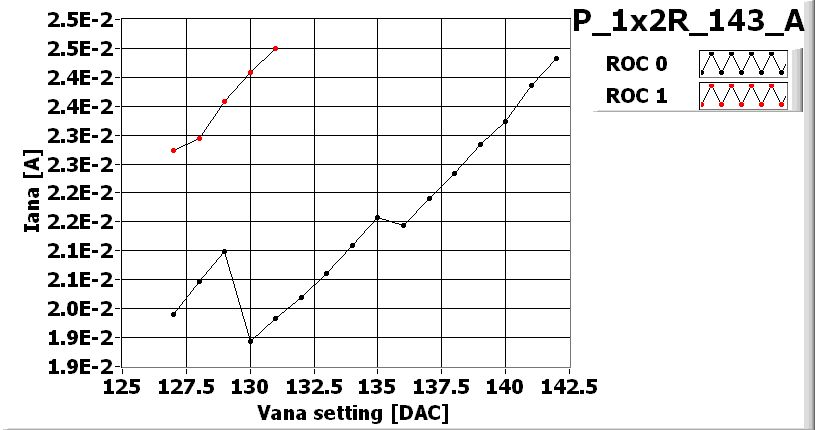

VANA_XML-File |
![[IMAGE] of](P_1x2R_143_ADead-PixelAlivetest.jpg){kind=tracking} |

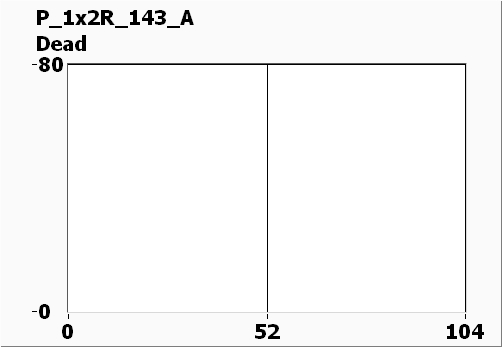

DEAD_XML-File |
![[IMAGE] of](P_1x2R_143_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_143_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_143_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY TO BE POTTED
