| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_114_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 1/30/2007
| Part | ID |
|---|---|
| BBM | BBM_114-1x2T |
| VHDI | 1x2R_264 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W30_X74K5RT | 36A |
| ROC1 | W30_X74K5RT | 35D |
Inspected by Arndt Kirk on date 2/1/2007
| LR_dev | 0.083 |
| LL_dev | 0.073 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for testing on 2/1/2007 by Arndt Kirk
P_1x2R_114_Aon 2/1/2007 4:21 PM
P_1x2R_114_Aon 2/1/2007 4:21 PM
PLAQUETTE TESTED on 2007-02-01 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 128 | 128 | |
| Vana | 131 | 138 | |
| Cal_Del | 82 | 85 | |
| Vthrs_Comp | 72 | 71 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2R_114_A_Ibias-dac.jpg) |

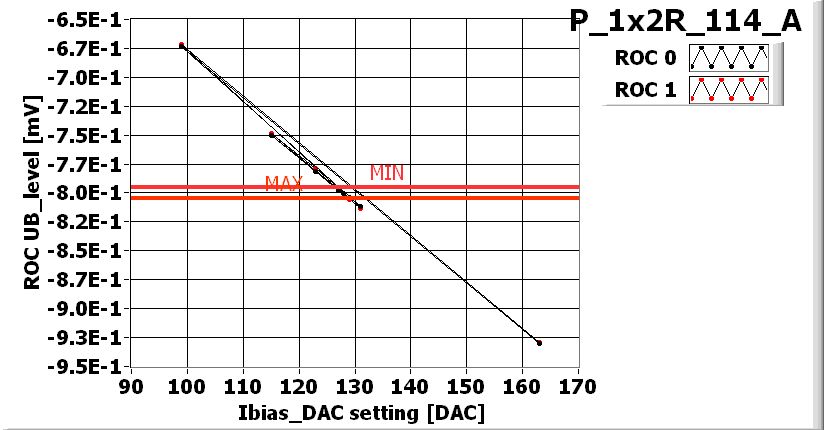

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2R_114_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2R_114_ADead-PixelAlivetest.jpg){kind=tracking} |

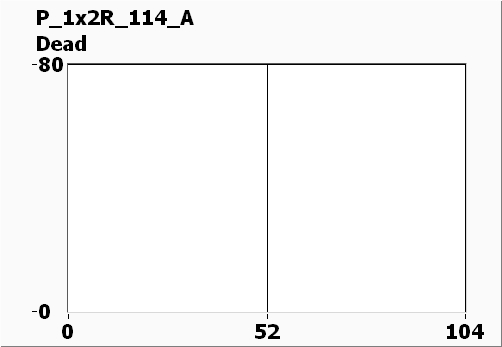

DEAD_XML-File |
![[IMAGE] of](P_1x2R_114_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_114_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_114_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY TO BE POTTED
