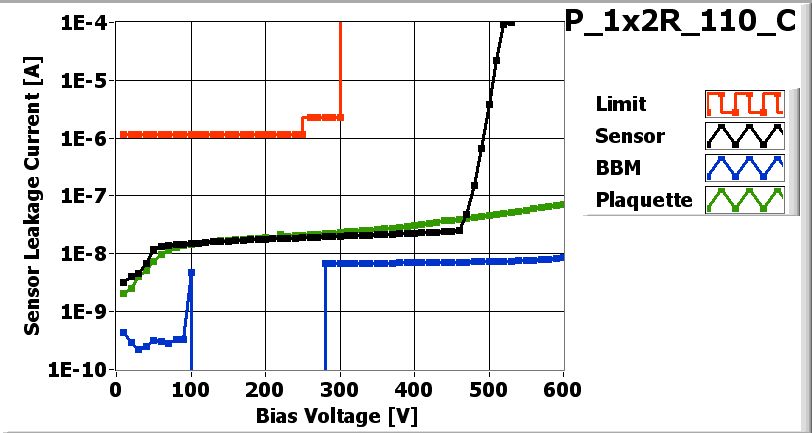

![[IMAGE] of](P_1x2R_110_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_110_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 4/10/2007
| Part | ID |
|---|---|
| BBM | BBM_110-1x2T |
| VHDI | 1x2R_241 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XW4KFXT | 05D |
| ROC1 | XW4KFXT | 12A |
Inspected by Lockwood Gale on date 4/13/2007
| LR_dev | 0.018 |
| LL_dev | 0.041 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Assembled at HALF-PRESSURE."ROC0 chn 19 two bond attempts, no other wirebonding problems." |
PLAQUETTE made READY for ENCAPSULATION on 4/13/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/13/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/13/2007 by Ozhan Koybasi
P_1x2R_110_Con 4/16/2007 2:50 PM
P_1x2R_110_Con 4/16/2007 2:50 PM
PLAQUETTE TESTED on 2007-04-16 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 138 | 130 | |
| Vana | 133 | 143 | |
| Cal_Del | 79 | 72 | |
| Vthrs_Comp | 83 | 90 | |
| Unbumped | 1 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

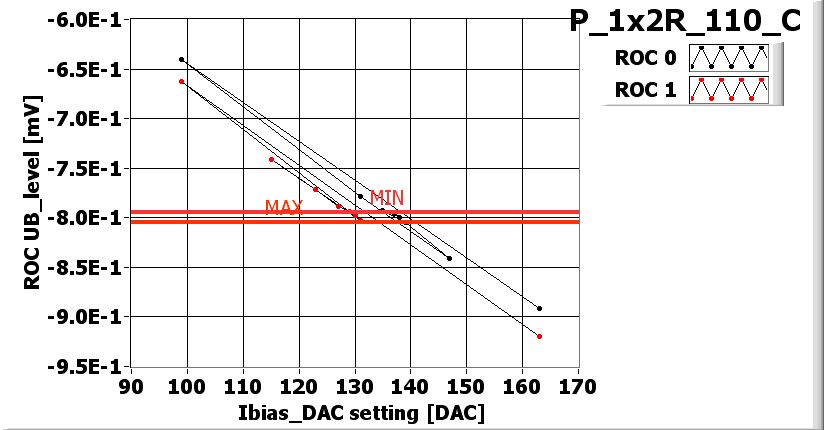

![[IMAGE] of](P_1x2R_110_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

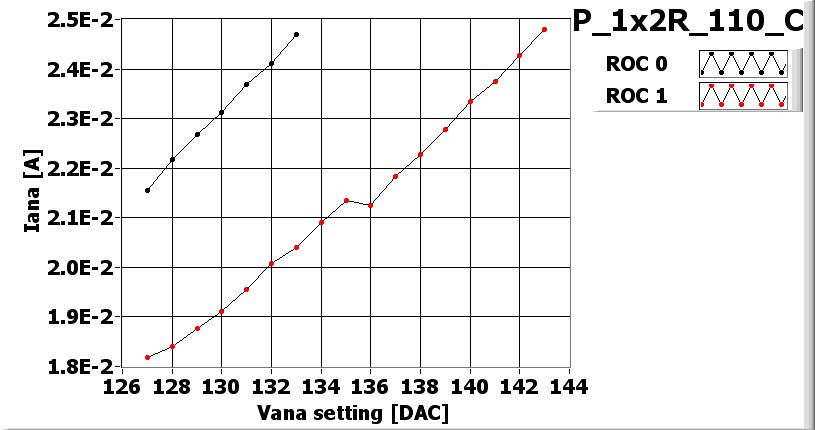

![[IMAGE] of](P_1x2R_110_C_Vana.jpg) |
VANA_XML-File |

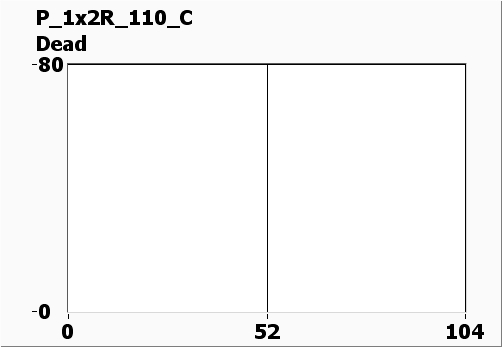

![[IMAGE] of](P_1x2R_110_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2R_110_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_110_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_110_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 110 | 110 |
| Vsf | 140 | 140 |
| VoffsetOp | 115 | 100 |
| VIbias_PH | 100 | 100 |
Noise MAP
![[IMAGE] of](P_1x2R_110_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2R_110_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
