P_1x2R_077_C-1

Production testing

Date:4/24/2007

Operator: Gino Bolla

start testing time:9:10 AM

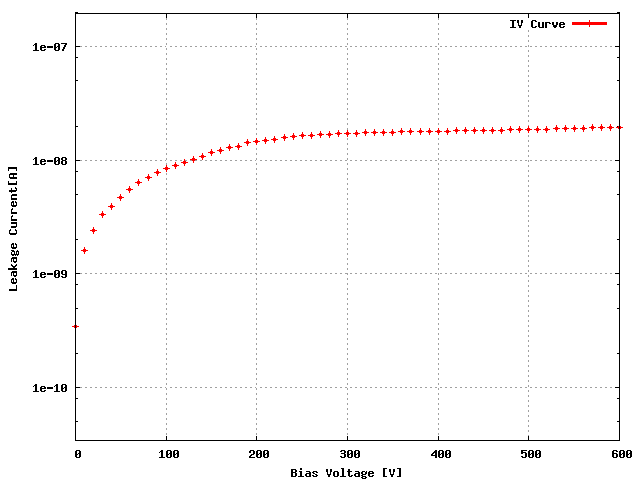

Sensor: S_1x2R_07, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0X94KFJT58A
ROC1X94KFJT37A

Depletion Voltage is -46 and suggested operational voltage is -86
Ibias_DAC, Ibias_DAC Data 140 158
Vana, VanaData 132 149
CalDelData and plots8877
VthrCompData and plots8682
TestDdata ,TestD Plots41604160
LightData ,Light Plots00
Pass/Fail TestD BAD BAD
Pass/Fail LIGHT GOOD GOOD

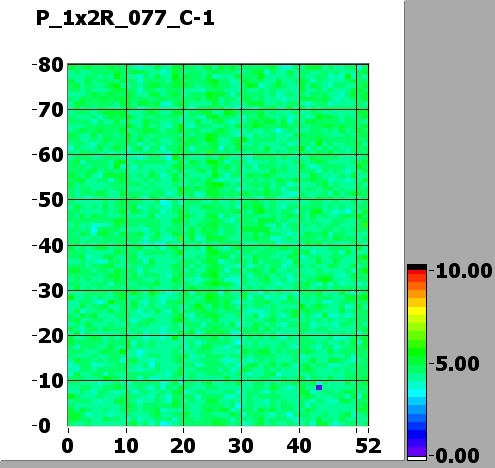

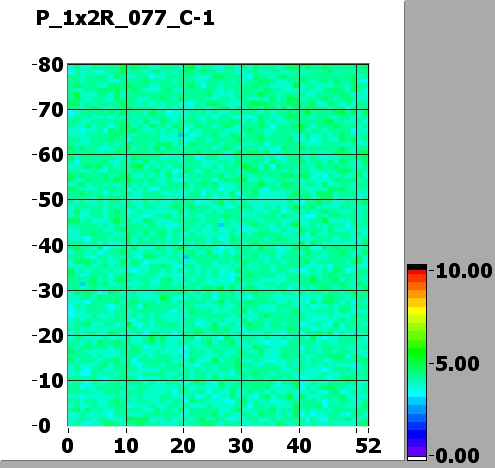

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe11595
Vsf140145
VoffsetOp105120
VIbias_PH100100
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.483182

SIGMA = 0.367690
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.048587

SIGMA = 0.311317

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_1x2R_077_C.html,

End testing time: 9:45 AM
