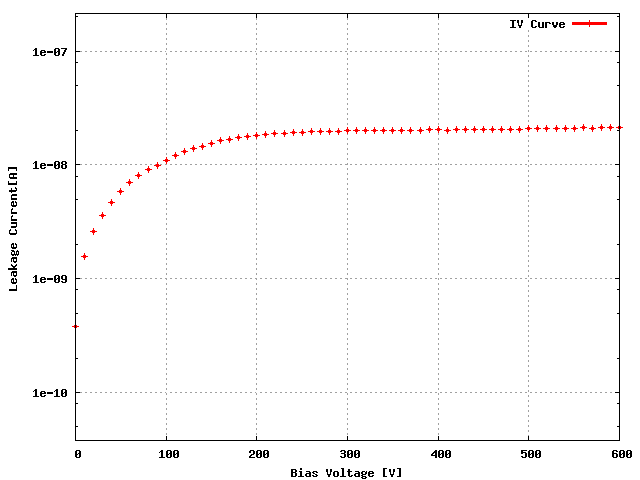

Sensor: S_1x2R_07, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X94KFJT | 58A |
| ROC1 | X94KFJT | 37A |
| Ibias_DAC, Ibias_DAC Data | 138 | 156 |
| Vana, VanaData | 131 | 149 |
| CalDelData and plots | 87 | 76 |
| VthrCompData and plots | 86 | 81 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 4088 | 4160 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | BAD | BAD |
| Pass/Fail LIGHT | GOOD | GOOD |

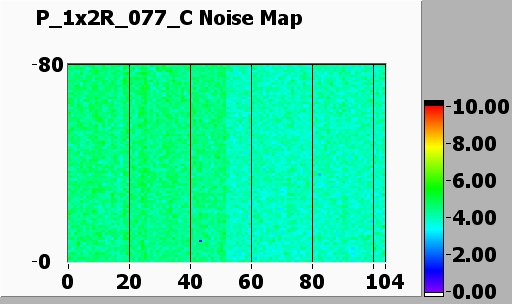

Noise MAP
![[IMAGE] of](P_1x2R_077_C-580-noise.jpg)

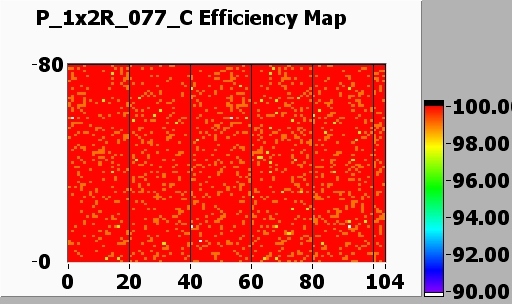

Efficiency MAP
![[IMAGE] of](P_1x2R_077_C-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 125 | 95 |
| Vsf | 140 | 145 |
| VoffsetOp | 105 | 125 |
| VIbias_PH | 100 | 100 |

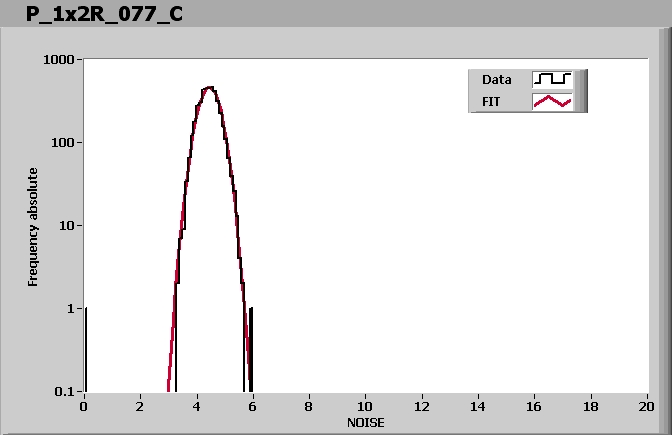

| ROC0 NOISE | ![[IMAGE] of](P_1x2R_077_C-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2R_077_C-580-noise-ROC0-HISTO.jpg) | MEAN = 4.437350SIGMA = 0.357041 |

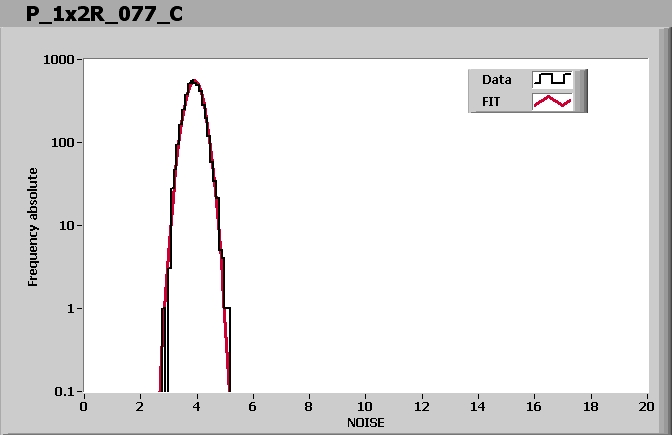

| ROC1 NOISE | ![[IMAGE] of](P_1x2R_077_C-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2R_077_C-580-noise-ROC1-HISTO.jpg) | MEAN = 3.910320SIGMA = 0.297937 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 4:38 PM
