| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_056_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 5/29/2007
| Part | ID |
|---|---|
| BBM | BBM_056-1x2T |
| VHDI | 1x2R_290 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KZNG1JT | 18C |
| ROC1 | KZNG1JT | 29D |
Inspected by Lockwood Gale on date 6/25/2007
| LR_dev | 0.030 |
| LL_dev | 0.009 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. Droplets of a hard substance on sensor (noted during BBM visual inspection). No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/25/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/25/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/25/2007 by Kozak Brian
P_1x2R_056_Con 6/26/2007 11:31 AM
P_1x2R_056_Con 6/26/2007 11:31 AM
PLAQUETTE TESTED on 2007-06-26 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 154 | 156 | |
| Vana | 148 | 146 | |
| Cal_Del | 73 | 78 | |
| Vthrs_Comp | 83 | 88 | |
| Unbumped | 4 | 1 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 4 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2R_056_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

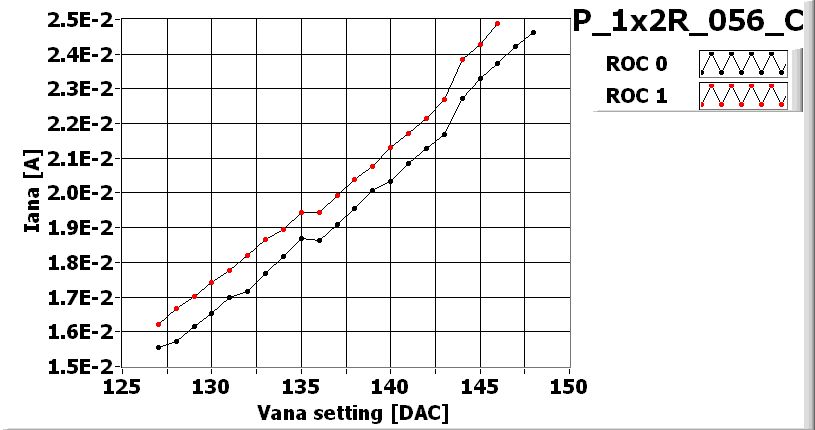

![[IMAGE] of](P_1x2R_056_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2R_056_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2R_056_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |

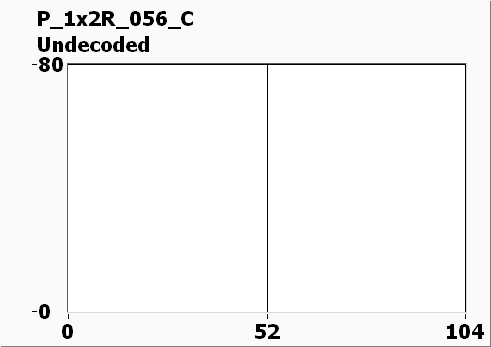

![[IMAGE] of](P_1x2R_056_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_056_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 95 |
| Vsf | 150 | 145 |
| VoffsetOp | 90 | 85 |
| VIbias_PH | 95 | 100 |

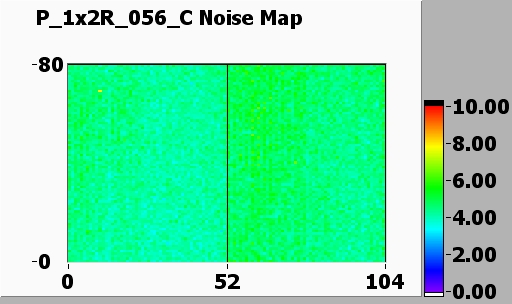

Noise MAP at VMAX
![[IMAGE] of](P_1x2R_056_C-580-noise.jpg)

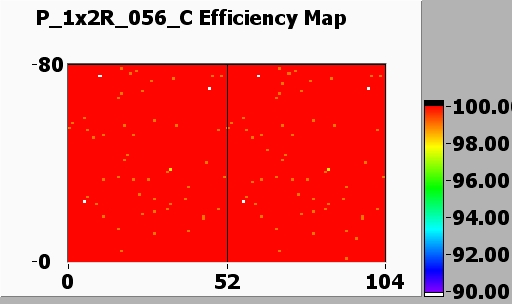

Efficiency MAP
![[IMAGE] of](P_1x2R_056_C-580-efficiency.jpg)

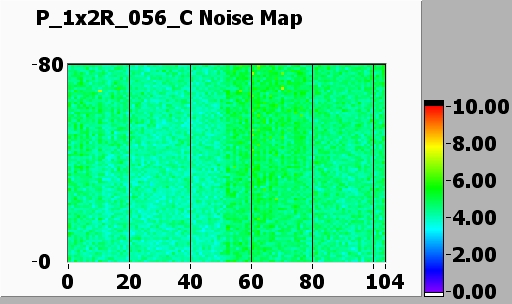

Noise MAP at -200 V
![[IMAGE] of](P_1x2R_056_C-200-noise.jpg)

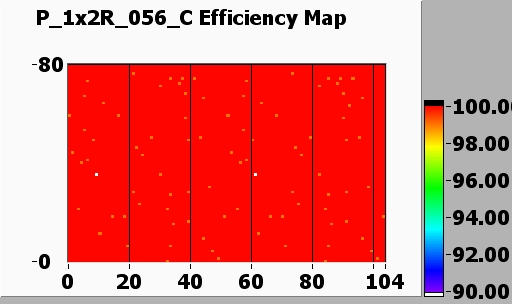

Efficiency MAP
![[IMAGE] of](P_1x2R_056_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
