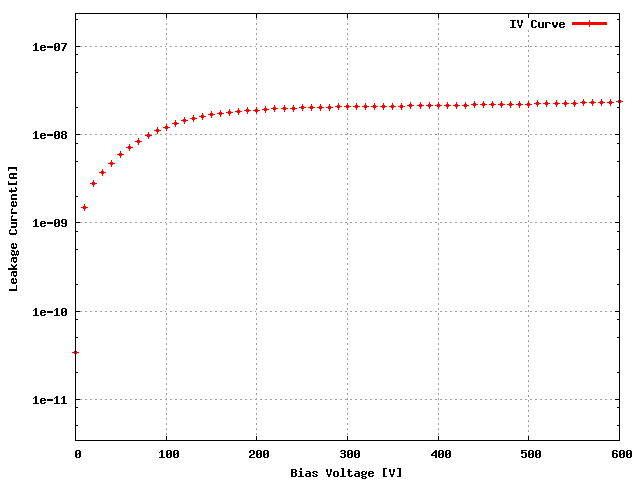

Sensor: S_1x2R_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KZNG1JT | 18C |
| ROC1 | KZNG1JT | 29D |
| Ibias_DAC, Ibias_DAC Data | 154 | 156 |
| Vana, VanaData | 148 | 146 |
| CalDelData and plots | 73 | 78 |
| VthrCompData and plots | 83 | 88 | Depletion Voltage is -44 and suggested operational voltage is -84
| TestDdata ,TestD Plots | 3 | 1 |
| LightData ,Light Plots | 4 | 1 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP at VMAX
![[IMAGE] of](P_1x2R_056_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2R_056_C-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 90 | 95 |
| Vsf | 150 | 145 |
| VoffsetOp | 90 | 85 |
| VIbias_PH | 95 | 100 |
| ROC0 NOISE | ![[IMAGE] of](P_1x2R_056_C-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2R_056_C-580-noise-ROC0-HISTO.jpg) | MEAN = 4.216606SIGMA = 0.340201 |

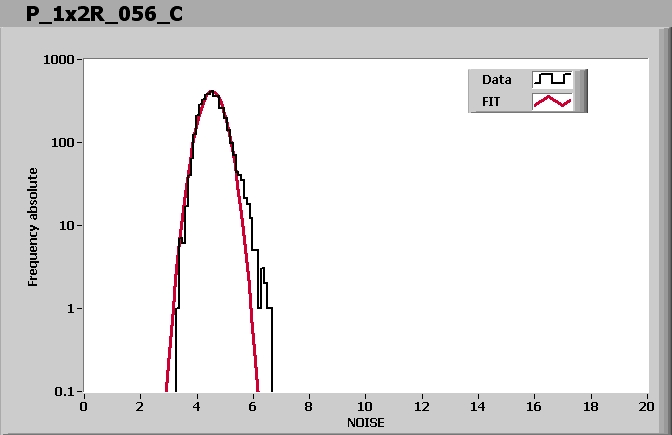

| ROC1 NOISE | ![[IMAGE] of](P_1x2R_056_C-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2R_056_C-580-noise-ROC1-HISTO.jpg) | MEAN = 4.538457SIGMA = 0.398953 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 11:55 AM
