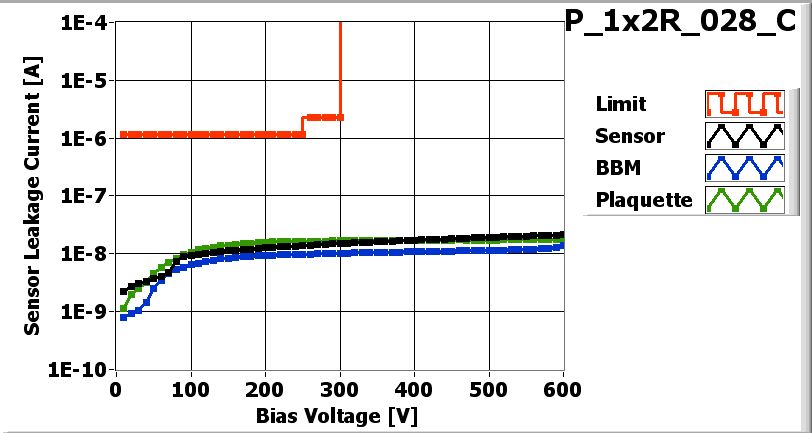

![[IMAGE] of](P_1x2R_028_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_028_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 2/5/2007
| Part | ID |
|---|---|
| BBM | BBM_028-1x2T |
| VHDI | 1x2R_268 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4K3KT | 48A |
| ROC1 | XE4K3KT | 47B |
Inspected by Arndt Kirk on date 2/8/2007
| LR_dev | 0.088 |
| LL_dev | 0.082 |
| FINAL COMMENT by Arndt Kirk | No assembly problem. No wirebond problem. |
PLAQUETTE made READY for testing on 2/8/2007 by Arndt Kirk
P_1x2R_028_Con 2/8/2007 3:57 PM
P_1x2R_028_C-1on 2/8/2007 3:59 PM
P_1x2R_028_C-1on 2/8/2007 3:59 PM
PLAQUETTE TESTED on 2007-02-08 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 134 | 134 | |
| Vana | 121 | 120 | |
| Cal_Del | 95 | 97 | |
| Vthrs_Comp | 72 | 57 | |
| Unbumped | 1 | 1 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 1 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

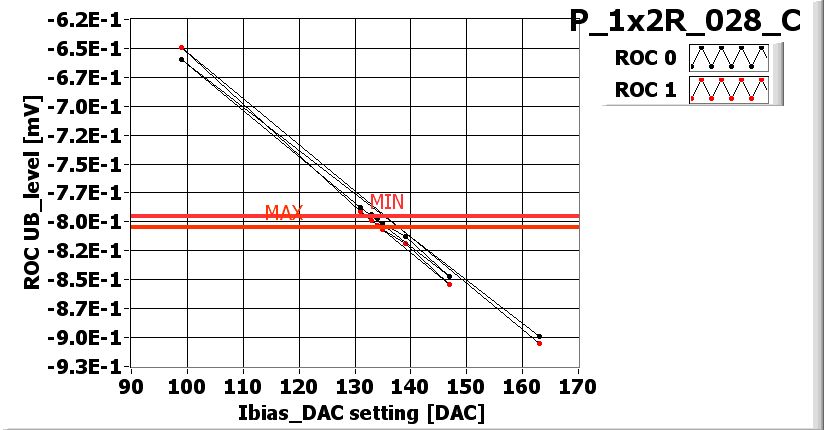

![[IMAGE] of](P_1x2R_028_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

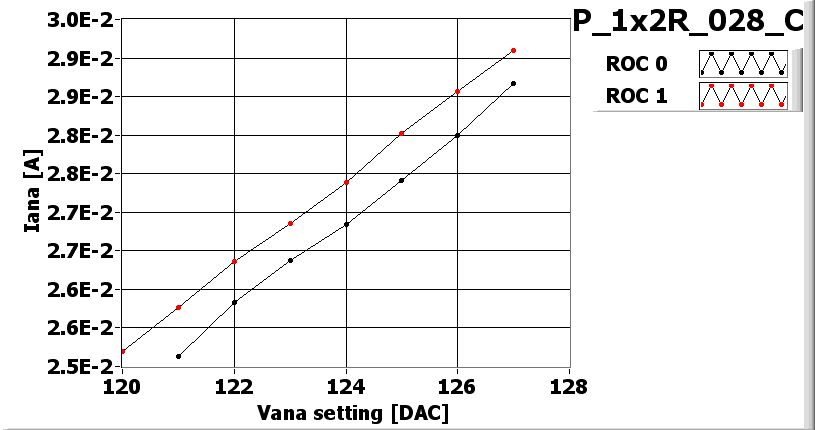

![[IMAGE] of](P_1x2R_028_C_Vana.jpg) |
VANA_XML-File |

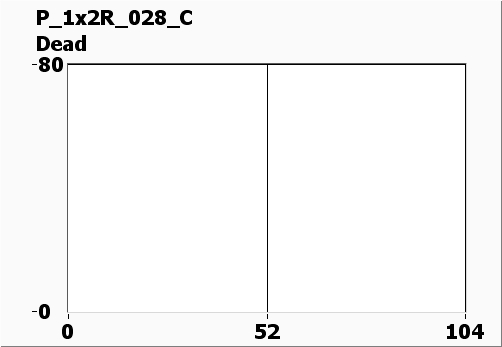

![[IMAGE] of](P_1x2R_028_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2R_028_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_028_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_028_Cno-bump-light.jpg) |
LIGHT_XML-File |
Noise MAP
![[IMAGE] of](P_1x2R_028_C-1-100-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2R_028_C-1-100-efficiency.jpg)
| ROC0 NOISE | ![[IMAGE] of](P_1x2R_028_C-1-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2R_028_C-1-100-noise-ROC0-HISTO.jpg) | MEAN = 4.221127SIGMA = 0.322499 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2R_028_C-1-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2R_028_C-1-100-noise-ROC1-HISTO.jpg) | MEAN = 4.272498SIGMA = 0.320124 |
PLAQUETTE READY TO BE POTTED
