P_1x2R_028_C-1

Production testing

Date:2/8/2007

Operator: Isaac Childres

start testing time:3:59 PM

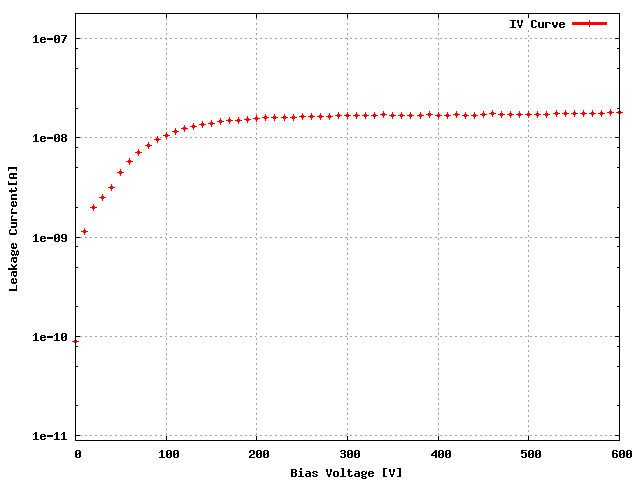

Sensor: S_1x2R_02, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0XE4K3KT48A
ROC1XE4K3KT47B

Depletion Voltage is -48 and suggested operational voltage is -88
Ibias_DAC, Ibias_DAC Data 134 134
Vana, VanaData 121 120
CalDelData and plots9597
VthrCompData and plots7257
TestDdata ,TestD Plots10
LightData ,Light Plots11
Pass/Fail TestD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD

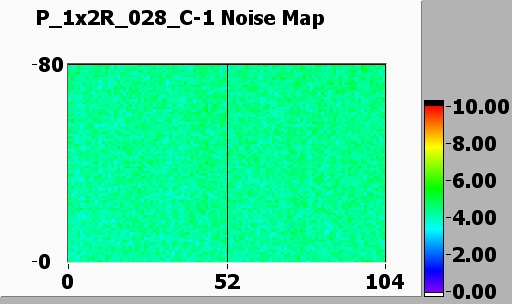

Noise MAP

[IMAGE] of

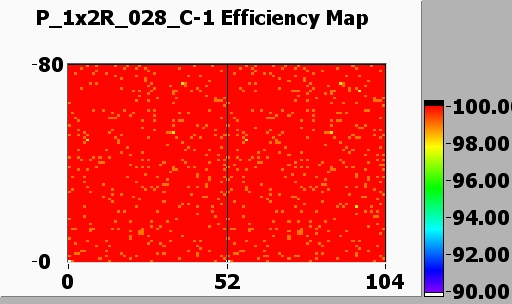

Efficiency MAP

[IMAGE] of

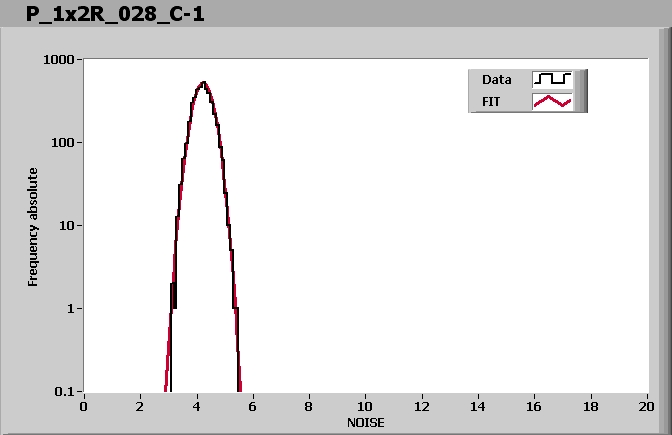

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.221127

SIGMA = 0.322499
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.272498

SIGMA = 0.320124

Comment (if any): Okay.

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_1x2R_028_C.html,

End testing time: 4:13 PM
