| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_026_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 42 V |
| Operational Voltage 82 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_026-1x2T |
| VHDI | 1x2R_215 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XL4K3DT | 26A |
| ROC1 | XL4K3DT | 24B |
Inspected by Arndt Kirk on date 2006-07-27
| LR_dev | 0.116 |
| LL_dev | 0.101 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-27 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-27 by Stacy Kouba
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 168 | 165 | |
| Vana | 127 | 141 | |
| Cal_Del | 93 | 102 | |
| Vthrs_Comp | 72 | 76 | |
| Unbumped | 0 | 1 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

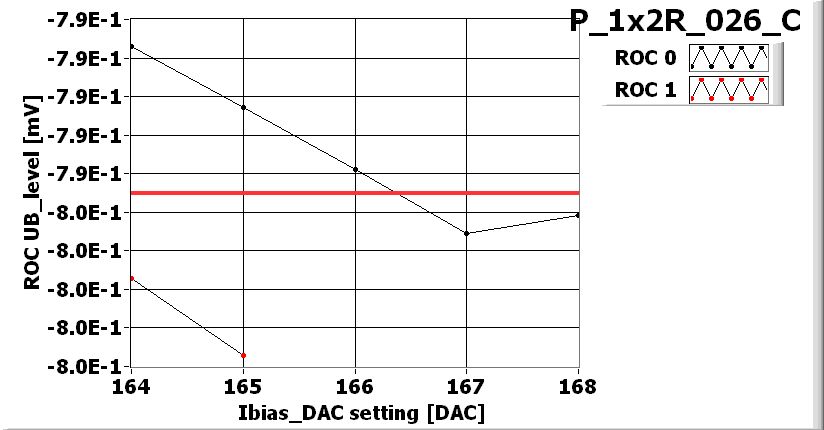

![[IMAGE] of](P_1x2R_026_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

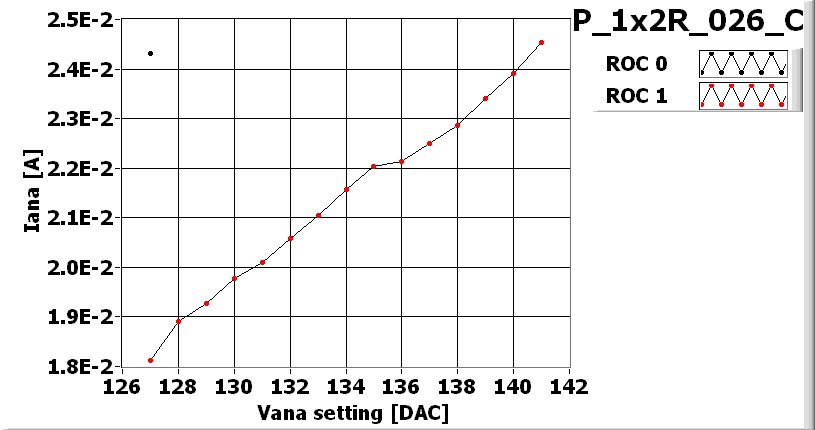

![[IMAGE] of](P_1x2R_026_C_Vana.jpg) |
VANA_XML-File |

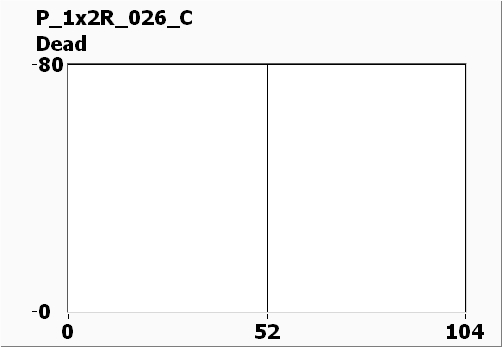

![[IMAGE] of](P_1x2R_026_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2R_026_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_026_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_026_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-31
