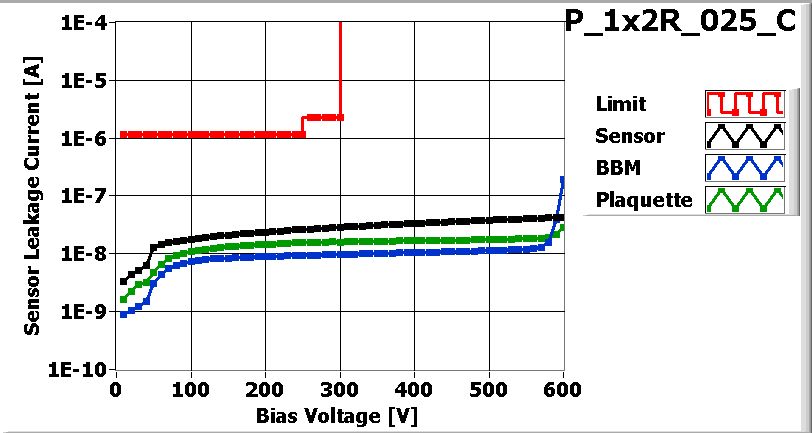

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_025_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 1/16/2007
| Part | ID |
|---|---|
| BBM | BBM_025-1x2T |
| VHDI | 1x2R_253 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4KFET | 06B |
| ROC1 | XE4KFET | 15C |
Inspected by Lockwood Gale on date 1/19/2007
| LR_dev | 0.125 |
| LL_dev | 0.086 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 1/19/2007 by Lockwood Gale
P_1x2R_025_Con 1/19/2007 1:19 PM
P_1x2R_025_Con 1/19/2007 1:19 PM
PLAQUETTE TESTED on 2007-01-19 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 136 | 134 | |
| Vana | 140 | 130 | |
| Cal_Del | 96 | 83 | |
| Vthrs_Comp | 76 | 84 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2R_025_C_Ibias-dac.jpg) |

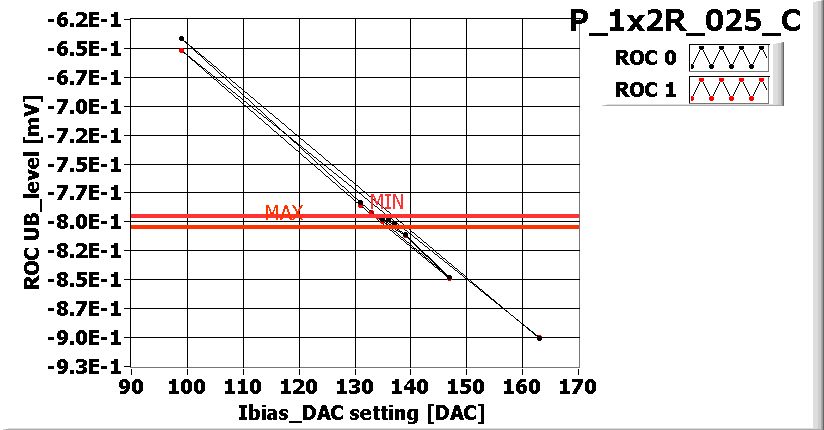

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2R_025_C_Vana.jpg) |

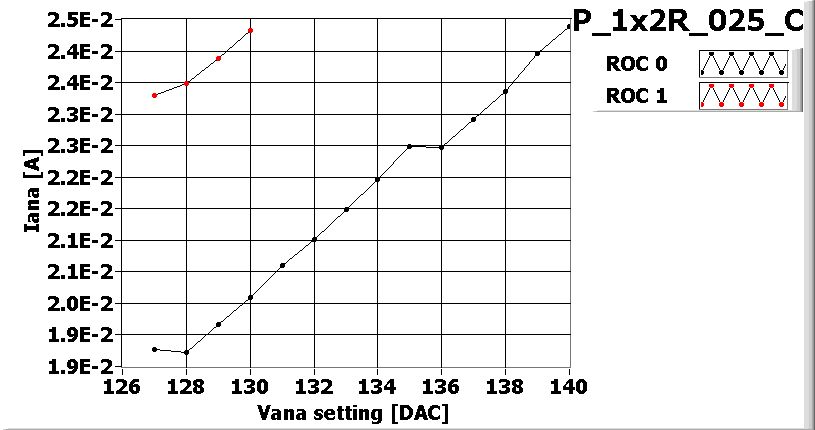

VANA_XML-File |
![[IMAGE] of](P_1x2R_025_CDead-PixelAlivetest.jpg){kind=tracking} |

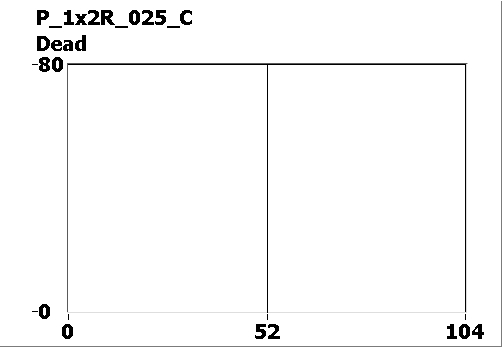

DEAD_XML-File |
![[IMAGE] of](P_1x2R_025_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_025_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_025_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY TO BE POTTED
