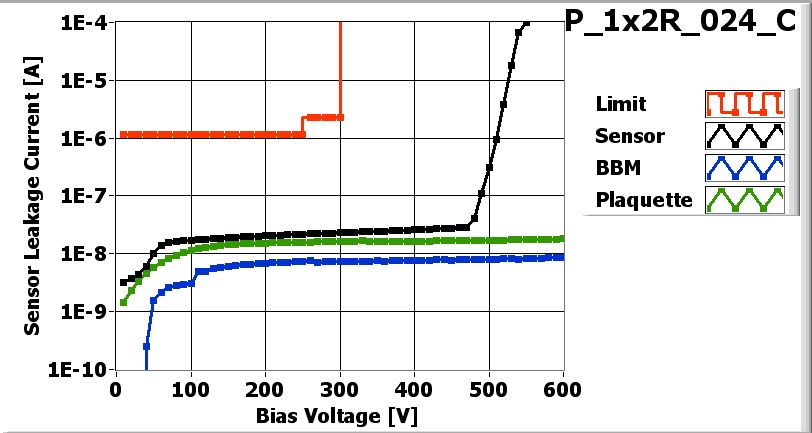

![[IMAGE] of](P_1x2R_024_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_024_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 4/24/2007
| Part | ID |
|---|---|
| BBM | BBM_024-1x2T |
| VHDI | 1x2R_251 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X94KFJT | 75C |
| ROC1 | X94KFJT | 75A |
Inspected by Lockwood Gale on date 4/27/2007
| LR_dev | 0.069 |
| LL_dev | 0.071 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. ROC 0 Channel 34,35, no wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/1/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 5/1/2007 by Ozhan Koybasi
P_1x2R_024_Con 5/2/2007 11:17 AM
P_1x2R_024_Con 5/2/2007 11:17 AM
PLAQUETTE TESTED on 2007-05-02 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 134 | 136 | |
| Vana | 138 | 114 | |
| Cal_Del | 87 | 78 | |
| Vthrs_Comp | 69 | 82 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2R_024_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

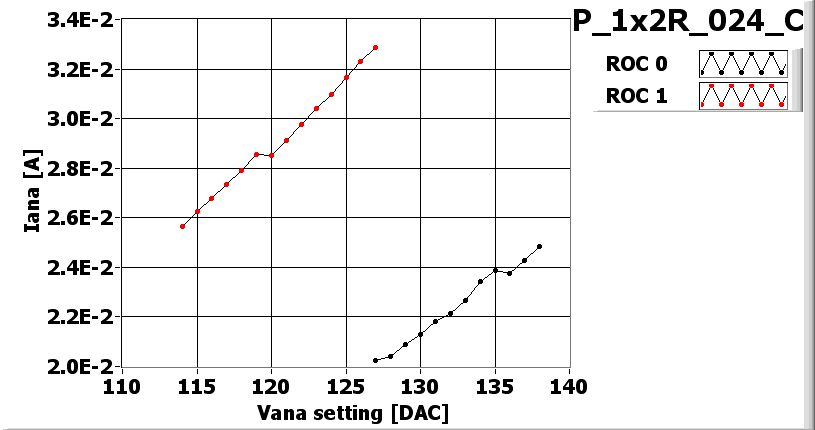

![[IMAGE] of](P_1x2R_024_C_Vana.jpg) |
VANA_XML-File |

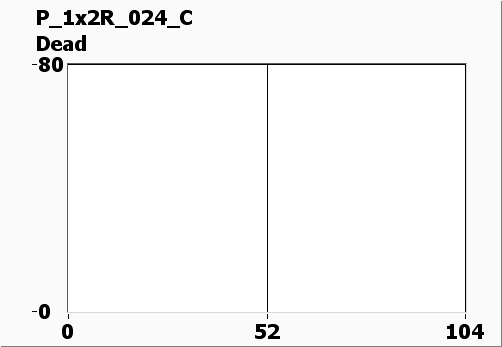

![[IMAGE] of](P_1x2R_024_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2R_024_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_024_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_024_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 185 |
| Vsf | 135 | 135 |
| VoffsetOp | 60 | 75 |
| VIbias_PH | 105 | 105 |
Noise MAP
![[IMAGE] of](P_1x2R_024_C-580-noise.jpg)

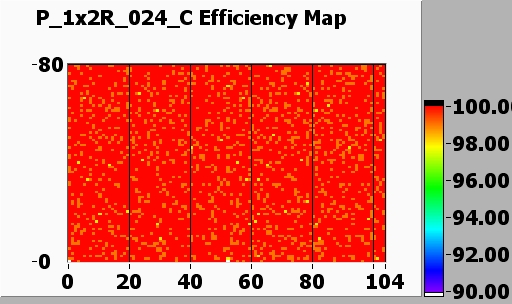

Efficiency MAP
![[IMAGE] of](P_1x2R_024_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
