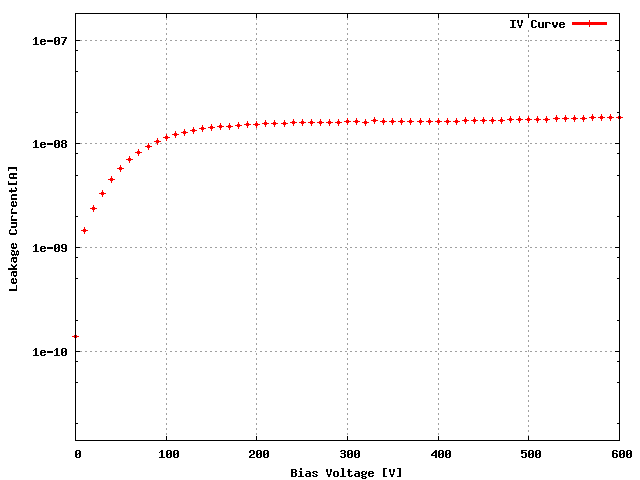

Sensor: S_1x2R_02, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X94KFJT | 75C |
| ROC1 | X94KFJT | 75A |
| Ibias_DAC, Ibias_DAC Data | 134 | 136 |
| Vana, VanaData | 138 | 114 |
| CalDelData and plots | 87 | 78 |
| VthrCompData and plots | 69 | 82 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP
![[IMAGE] of](P_1x2R_024_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2R_024_C-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 105 | 185 |
| Vsf | 135 | 135 |
| VoffsetOp | 60 | 75 |
| VIbias_PH | 105 | 105 |

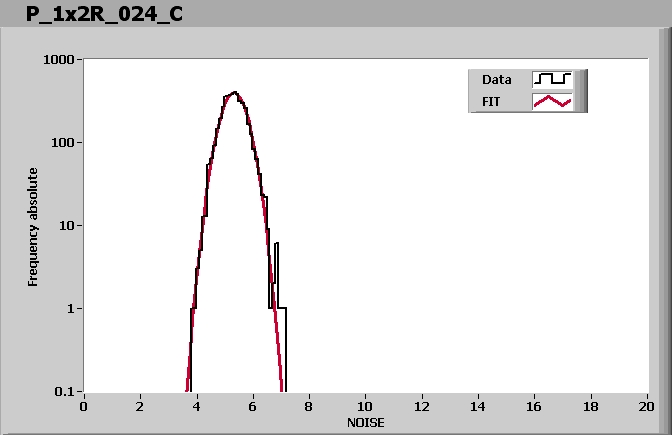

| ROC0 NOISE | ![[IMAGE] of](P_1x2R_024_C-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2R_024_C-580-noise-ROC0-HISTO.jpg) | MEAN = 5.320538SIGMA = 0.415136 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2R_024_C-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2R_024_C-580-noise-ROC1-HISTO.jpg) | MEAN = 4.760858SIGMA = 0.388015 |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 11:36 AM
