![[IMAGE] of](P_1x2R_014_C_IV.jpg)

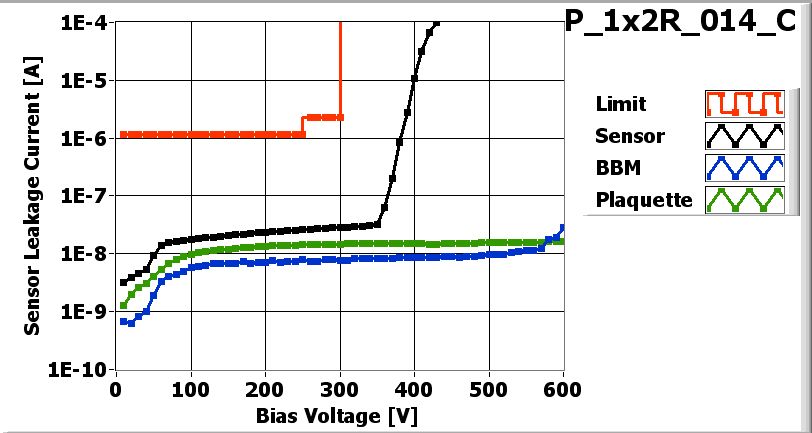

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_014_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 2/5/2007
| Part | ID |
|---|---|
| BBM | BBM_014-1x2T |
| VHDI | 1x2R_269 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4K3KT | 35C |
| ROC1 | XE4K3KT | 33C |
Inspected by Arndt Kirk on date 2/7/2007
| LR_dev | 0.080 |
| LL_dev | 0.101 |
| FINAL COMMENT by Arndt Kirk | No assembly problem. No wirebond problem. |
PLAQUETTE made READY for testing on 2/7/2007 by Arndt Kirk
P_1x2R_014_Con 2/8/2007 8:24 AM
P_1x2R_014_Con 2/8/2007 8:24 AM
PLAQUETTE TESTED on 2007-02-08 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 132 | 142 | |
| Vana | 122 | 125 | |
| Cal_Del | 85 | 89 | |
| Vthrs_Comp | 65 | 70 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2R_014_C_Ibias-dac.jpg) |

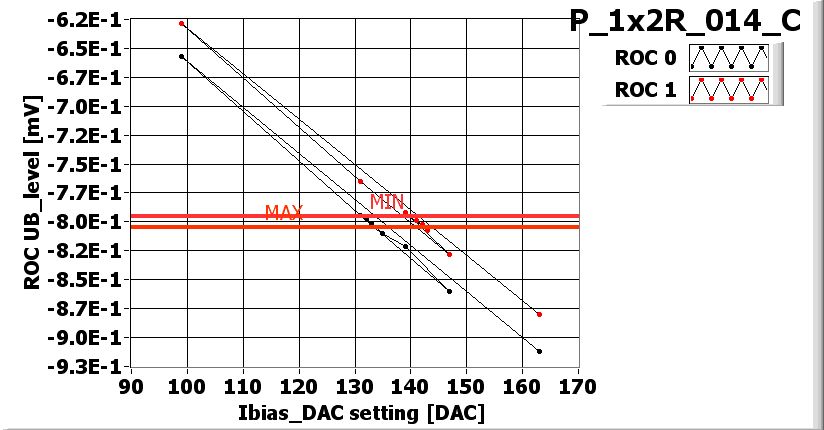

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2R_014_C_Vana.jpg) |

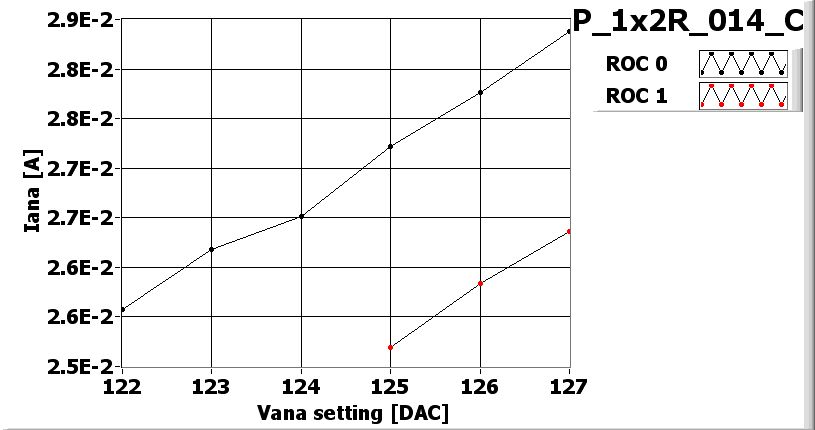

VANA_XML-File |
![[IMAGE] of](P_1x2R_014_CDead-PixelAlivetest.jpg){kind=tracking} |

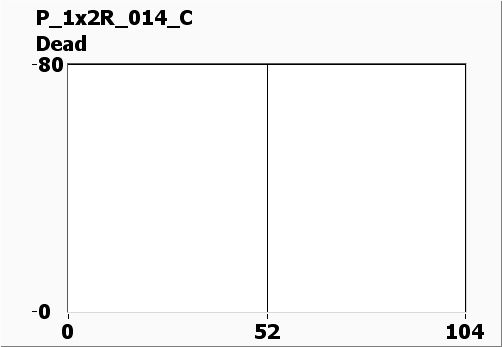

DEAD_XML-File |
![[IMAGE] of](P_1x2R_014_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_014_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_014_Cno-bump-light.jpg) |
LIGHT_XML-File |
Noise MAP
![[IMAGE] of](P_1x2R_014_C-1-100-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2R_014_C-1-100-efficiency.jpg)
| ROC0 NOISE | ![[IMAGE] of](P_1x2R_014_C-1-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2R_014_C-1-100-noise-ROC0-HISTO.jpg) | MEAN = 4.232646SIGMA = 0.321137 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2R_014_C-1-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2R_014_C-1-100-noise-ROC1-HISTO.jpg) | MEAN = 4.244336SIGMA = 0.327687 |
