![[IMAGE] of](P_1x2R_007_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_007_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 58 V |
| Operational Voltage 98 V |
Parts committed by Bolla Gino on date 2/18/2008
| Part | ID |
|---|---|
| BBM | BBM_007-1x2T |
| VHDI | 1x2R_616 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W53_DXLQY9T | 04C |
| ROC1 | W53_DXLQY9T | 04B |
Inspected by Lockwood Gale on date 2/22/2008
| LR_dev | 0.057 |
| LL_dev | 0.046 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2 kg per ROC. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 2/22/2008 by Lockwood Gale
PLAQUETTE encapsulated on 2/23/2008 by Ozhan Koybasi
PLAQUETTE made READY for testing on 2/23/2008 by Ozhan Koybasi
P_1x2R_007_Aon 2/26/2008 12:29 AM
P_1x2R_007_A-1on 2/26/2008 1:13 PM
P_1x2R_007_A-1on 2/26/2008 1:13 PM
PLAQUETTE TESTED on 2008-02-26 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 162 | 154 | |
| Vana | 148 | 158 | |
| Cal_Del | 76 | 86 | |
| Vthrs_Comp | 89 | 93 | |
| Unbumped | 0 | 0 | |
| Dead | 2 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 2 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2R_007_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

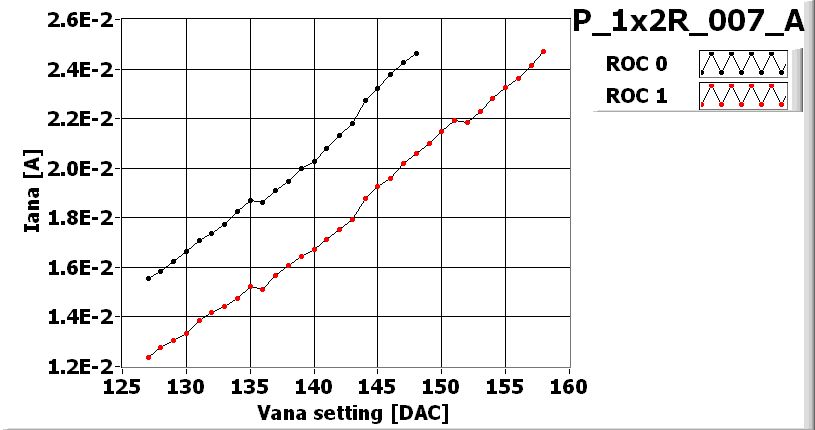

![[IMAGE] of](P_1x2R_007_A_Vana.jpg) |
VANA_XML-File |

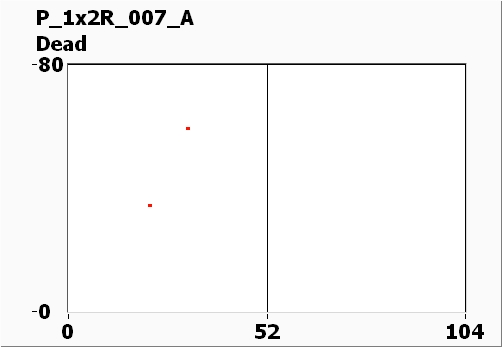

![[IMAGE] of](P_1x2R_007_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2R_007_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_007_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_007_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 100 |
| Vsf | 145 | 155 |
| VoffsetOp | 100 | 110 |
| VIbias_PH | 100 | 105 |
Noise MAP at VMAX
![[IMAGE] of](P_1x2R_007_A-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2R_007_A-1-580-efficiency.jpg)

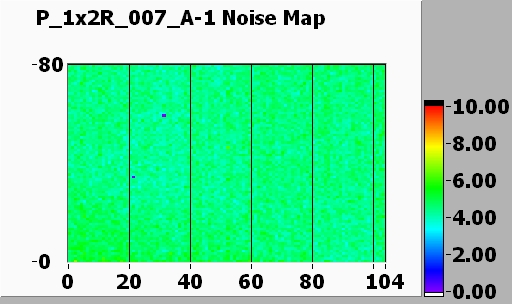

Noise MAP at -200 V
![[IMAGE] of](P_1x2R_007_A-1-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2R_007_A-1-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
