P_1x2R_007_A-1

Production testing

Date:2/26/2008

Operator: Ozhan Koybasi

start testing time:1:13 PM

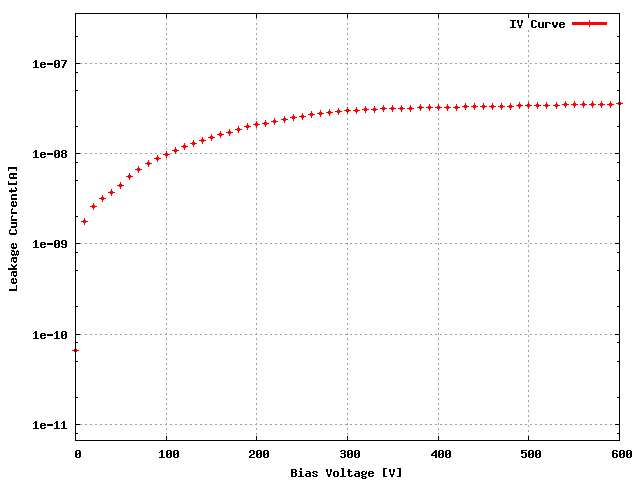

Sensor: S_1x2R_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0W53_DXLQY9T04C
ROC1W53_DXLQY9T04B

Depletion Voltage is -58 and suggested operational voltage is -98
Ibias_DAC, Ibias_DAC Data 162 154
Vana, VanaData 148 158
CalDelData and plots7686
VthrCompData and plots8993
TestDdata ,TestD Plots20
LightData ,Light Plots00
Pass/Fail TestD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD

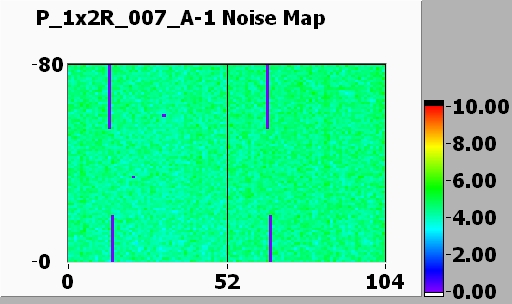

Noise MAP at VMAX

[IMAGE] of

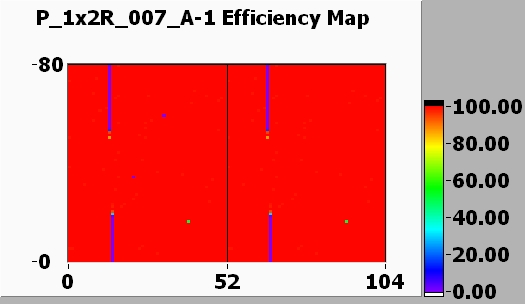

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe105100
Vsf145155
VoffsetOp100110
VIbias_PH100105
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.293843

SIGMA = 0.326151

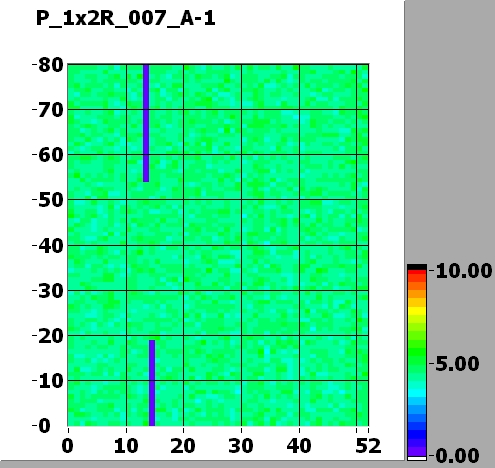

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.419363

SIGMA = 0.343852

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_1x2R_007_A.html,

End testing time: 1:38 PM
