| IV_XML-File |

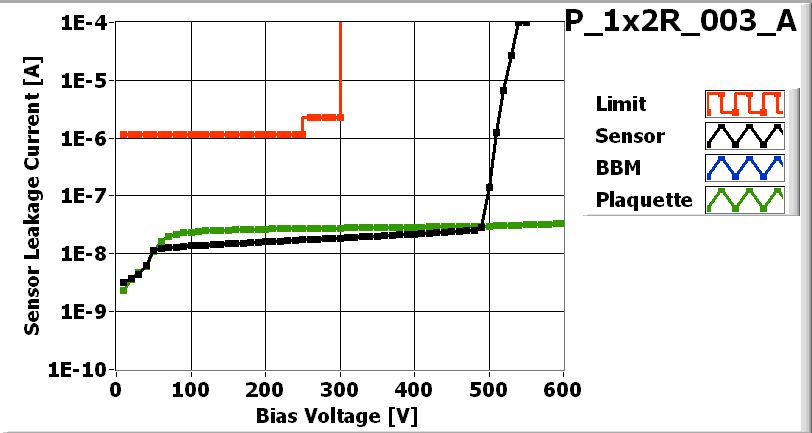

| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_003_A_LASER.jpg)
| LASER_XML-File |

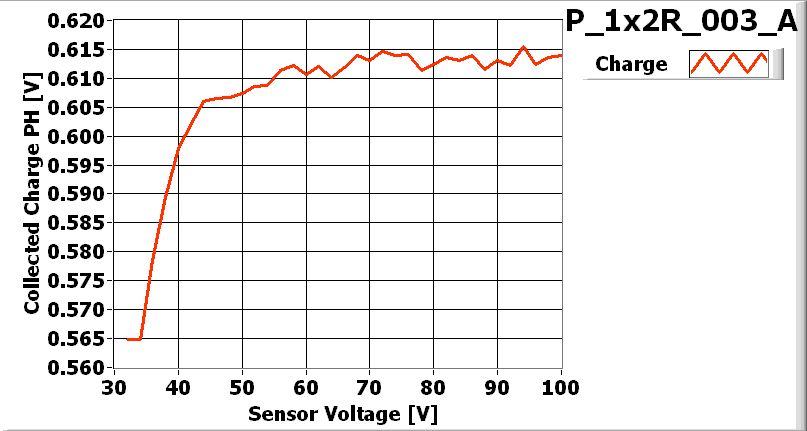

| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 2/18/2008
| Part | ID |
|---|---|
| BBM | BBM_003-1x2T |
| VHDI | 1x2R_615 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W53_DXLQY9T | 21D |
| ROC1 | W53_DXLQY9T | 21B |
Inspected by Arndt Kirk on date 2/19/2008
| LR_dev | 0.017 |
| LL_dev | 0.038 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Force used to join BBM to VHDI = 2 kg per ROC. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 2/19/2008 by Arndt Kirk
PLAQUETTE encapsulated on 2/20/2008 by Ozhan Koybasi
PLAQUETTE made READY for testing on 2/20/2008 by Ozhan Koybasi
P_1x2R_003_Aon 2/20/2008 1:50 PM
P_1x2R_003_Aon 2/20/2008 1:50 PM
PLAQUETTE TESTED on 2008-02-20 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 156 | 158 | |
| Vana | 145 | 134 | |
| Cal_Del | 67 | 80 | |
| Vthrs_Comp | 88 | 88 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2R_003_A_Ibias-dac.jpg) |

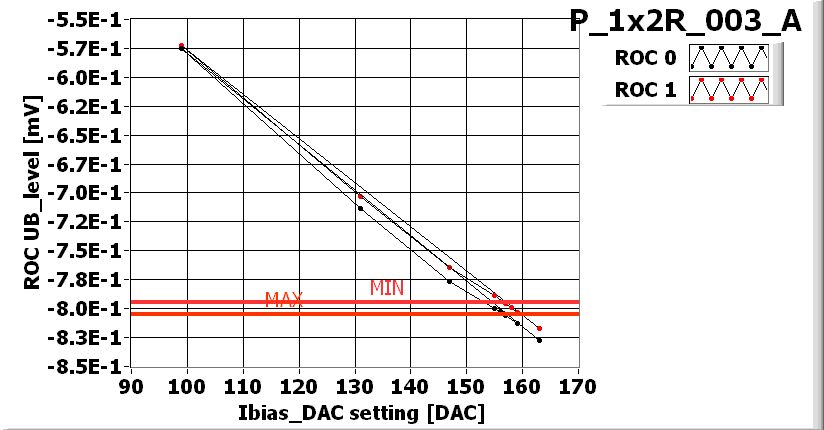

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2R_003_A_Vana.jpg) |

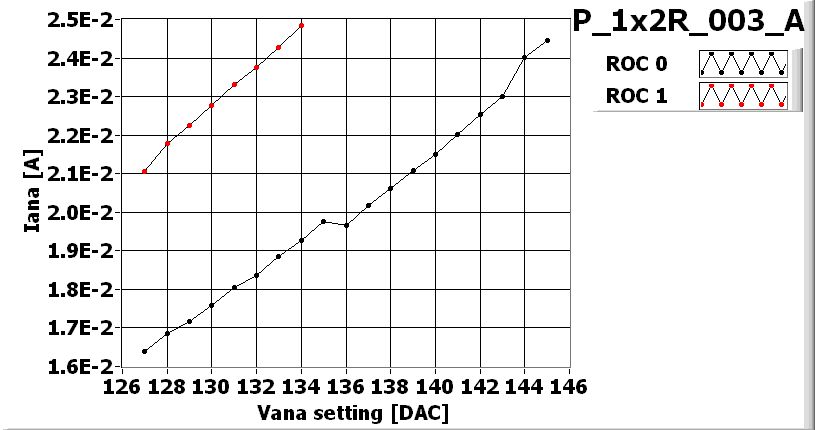

VANA_XML-File |
![[IMAGE] of](P_1x2R_003_ADead-PixelAlivetest.jpg){kind=tracking} |

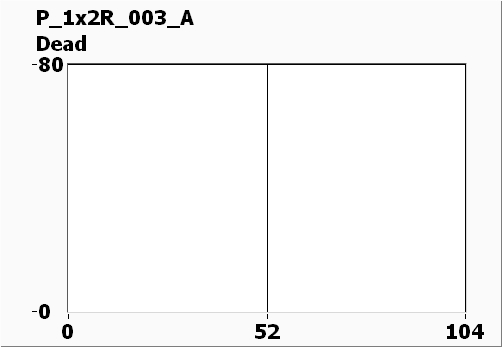

DEAD_XML-File |
![[IMAGE] of](P_1x2R_003_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_003_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_003_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 110 |
| Vsf | 145 | 140 |
| VoffsetOp | 110 | 105 |
| VIbias_PH | 100 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_1x2R_003_A-580-noise.jpg)

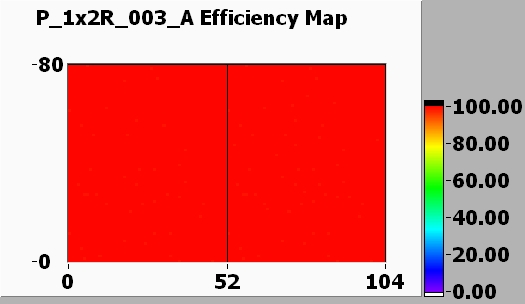

Efficiency MAP
![[IMAGE] of](P_1x2R_003_A-580-efficiency.jpg)

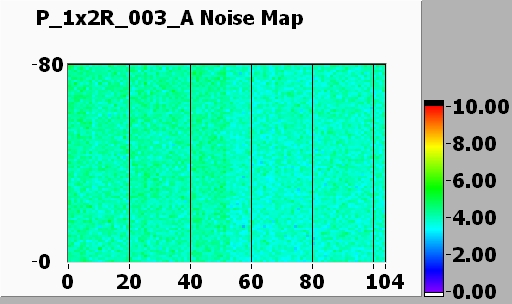

Noise MAP at -200 V
![[IMAGE] of](P_1x2R_003_A-200-noise.jpg)

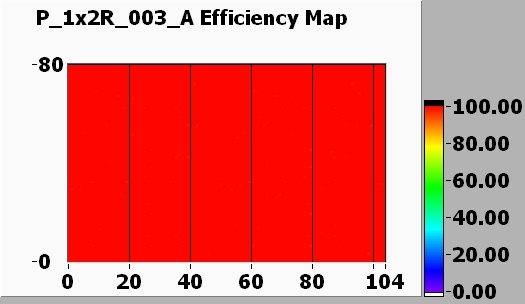

Efficiency MAP
![[IMAGE] of](P_1x2R_003_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
