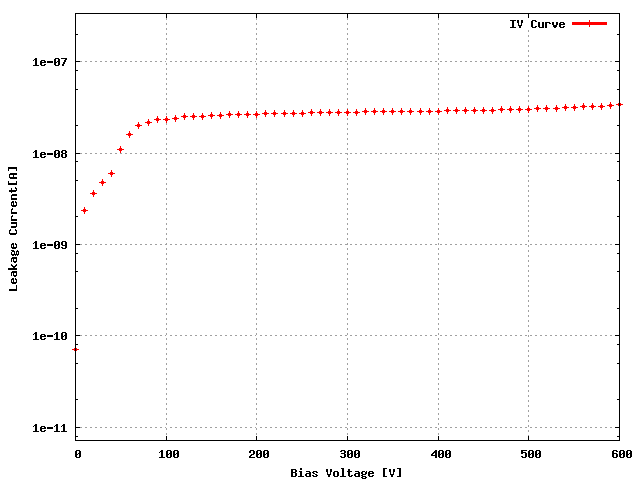

Sensor: S_1x2R_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W53_DXLQY9T | 21D |
| ROC1 | W53_DXLQY9T | 21B |
| Ibias_DAC, Ibias_DAC Data | 156 | 158 |
| Vana, VanaData | 145 | 134 |
| CalDelData and plots | 67 | 80 |
| VthrCompData and plots | 88 | 88 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 1 | 0 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP at VMAX
![[IMAGE] of](P_1x2R_003_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2R_003_A-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 95 | 110 |
| Vsf | 145 | 140 |
| VoffsetOp | 110 | 105 |
| VIbias_PH | 100 | 100 |
| ROC0 NOISE | ![[IMAGE] of](P_1x2R_003_A-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2R_003_A-580-noise-ROC0-HISTO.jpg) | MEAN = 4.073334SIGMA = 0.309188 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2R_003_A-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2R_003_A-580-noise-ROC1-HISTO.jpg) | MEAN = 3.819441SIGMA = 0.303804 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 2:21 PM
