![[IMAGE] of](P_1x2L_176_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

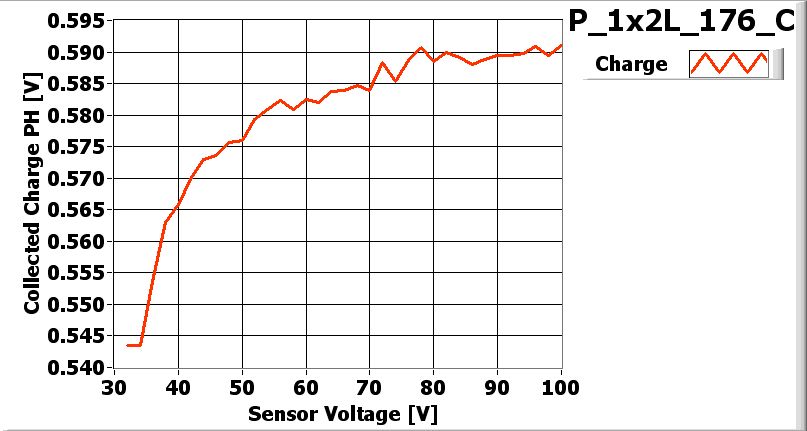

![[IMAGE] of](P_1x2L_176_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Arndt Kirk on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_176-1x2T |
| VHDI | 1x2L_265 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KFNG13T | 65D |
| ROC1 | KFNG13T | 65C |
Inspected by Lockwood Gale on date 5/11/2007
| LR_dev | 0.033 |
| LL_dev | 0.040 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/11/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/11/2007 by Ortiz Jason
PLAQUETTE made READY for testing on 5/11/2007 by Ortiz Jason
P_1x2L_176_Con 5/14/2007 1:32 PM
P_1x2L_176_Con 5/14/2007 1:32 PM
PLAQUETTE TESTED on 2007-05-14 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 166 | 162 | |
| Vana | 135 | 141 | |
| Cal_Del | 60 | 79 | |
| Vthrs_Comp | 93 | 85 | |
| Unbumped | 1 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

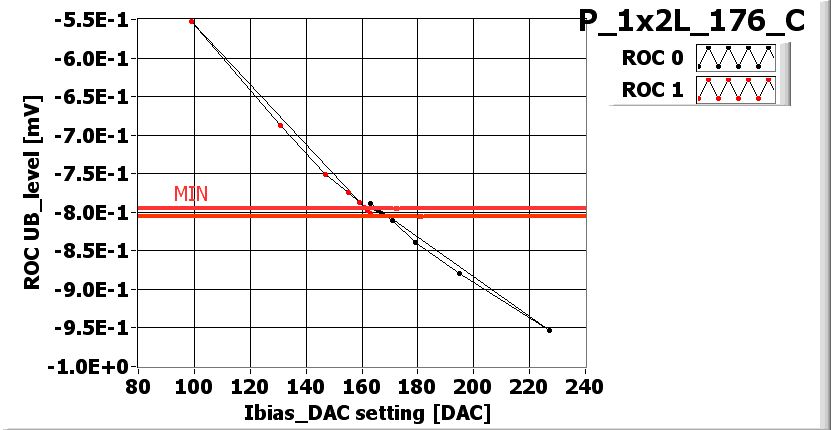

![[IMAGE] of](P_1x2L_176_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2L_176_C_Vana.jpg) |
VANA_XML-File |

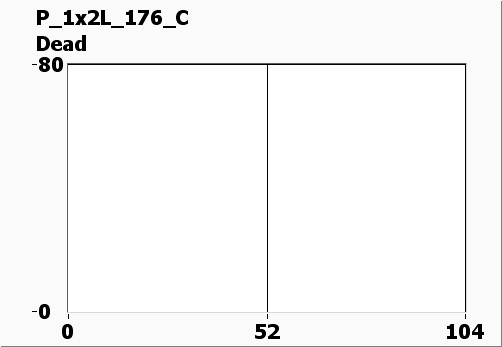

![[IMAGE] of](P_1x2L_176_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_176_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_176_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_176_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 95 |
| Vsf | 140 | 145 |
| VoffsetOp | 105 | 95 |
| VIbias_PH | 100 | 100 |

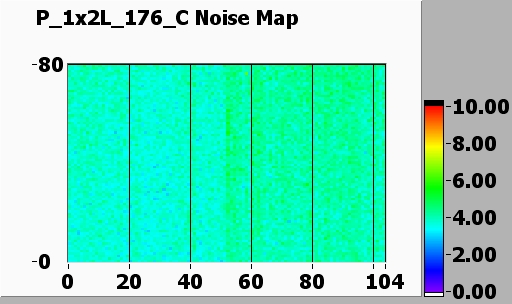

Noise MAP
![[IMAGE] of](P_1x2L_176_C-580-noise.jpg)

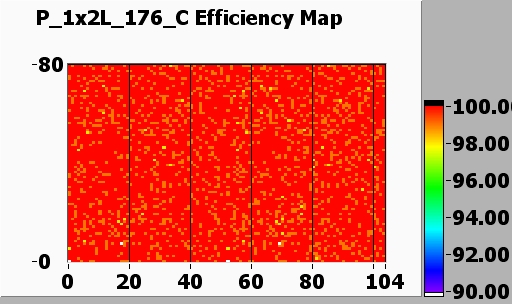

Efficiency MAP
![[IMAGE] of](P_1x2L_176_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
