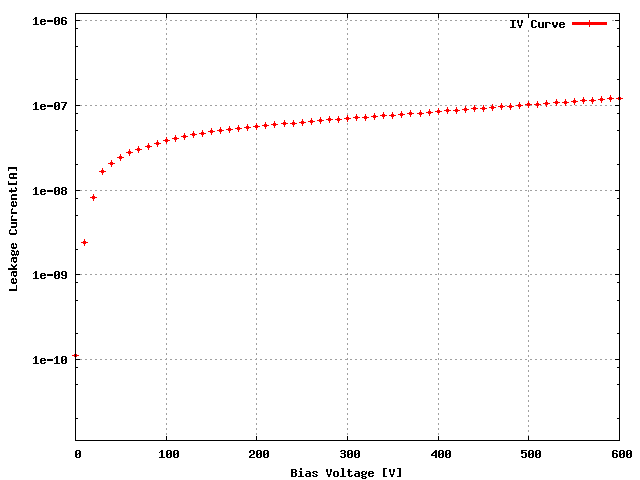

Sensor: S_1x2L_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KFNG13T | 65D |
| ROC1 | KFNG13T | 65C |
| Ibias_DAC, Ibias_DAC Data | 166 | 162 |
| Vana, VanaData | 135 | 141 |
| CalDelData and plots | 60 | 79 |
| VthrCompData and plots | 93 | 85 | Depletion Voltage is -50 and suggested operational voltage is -90
| TestDdata ,TestD Plots | 1 | 0 |
| LightData ,Light Plots | 1 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP
![[IMAGE] of](P_1x2L_176_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_176_C-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 120 | 95 |
| Vsf | 140 | 145 |
| VoffsetOp | 105 | 95 |
| VIbias_PH | 100 | 100 |

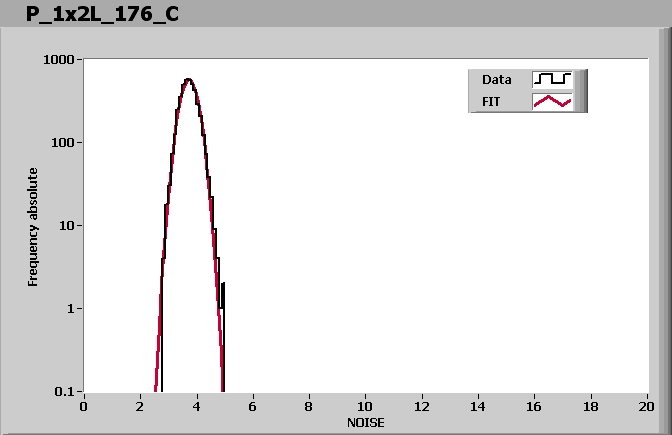

| ROC0 NOISE | ![[IMAGE] of](P_1x2L_176_C-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_176_C-580-noise-ROC0-HISTO.jpg) | MEAN = 3.722739SIGMA = 0.289133 |

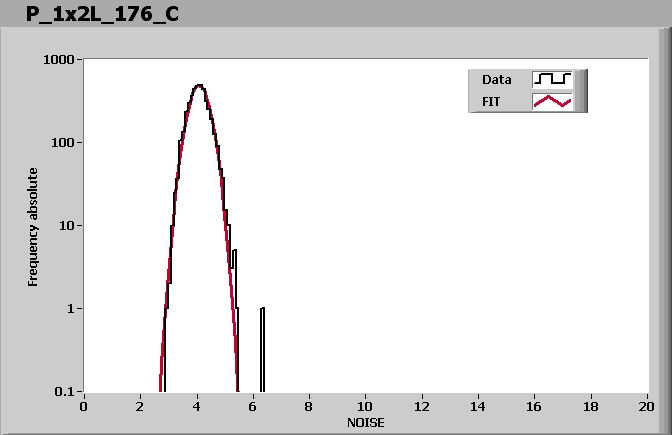

| ROC1 NOISE | ![[IMAGE] of](P_1x2L_176_C-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_176_C-580-noise-ROC1-HISTO.jpg) | MEAN = 4.076648SIGMA = 0.337446 |
Comment (if any): GOOD
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:48 PM
