![[IMAGE] of](P_1x2L_175_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

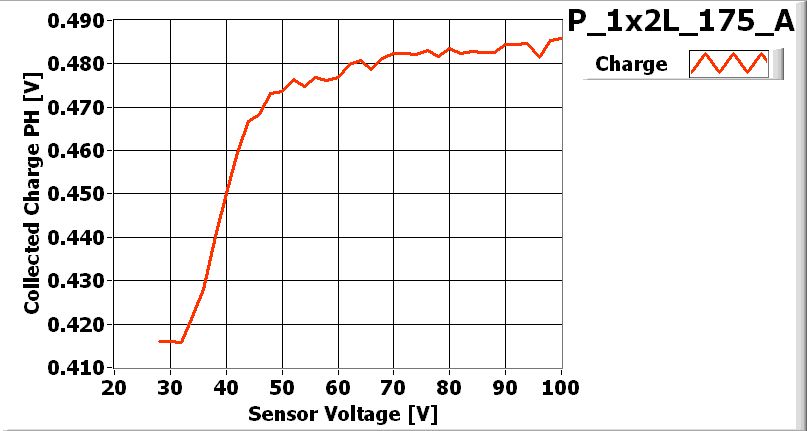

![[IMAGE] of](P_1x2L_175_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 1/19/2007
| Part | ID |
|---|---|
| BBM | BBM_175-1x2T |
| VHDI | 1x2L_216 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 53B |
| ROC1 | W28_X54K5TT | 53A |
Inspected by Lockwood Gale on date 1/23/2007
| LR_dev | 0.123 |
| LL_dev | 0.131 |
| FINAL COMMENT by Lockwood Gale | No assembly problem. No wirebonding problems. |
PLAQUETTE made READY for testing on 1/23/2007 by Lockwood Gale
P_1x2L_175_Aon 1/23/2007 11:21 AM
P_1x2L_175_Aon 1/23/2007 11:21 AM
PLAQUETTE TESTED on 2007-01-23 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 142 | 150 | |
| Vana | 141 | 143 | |
| Cal_Del | 64 | 70 | |
| Vthrs_Comp | 88 | 82 | |
| Unbumped | 1 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

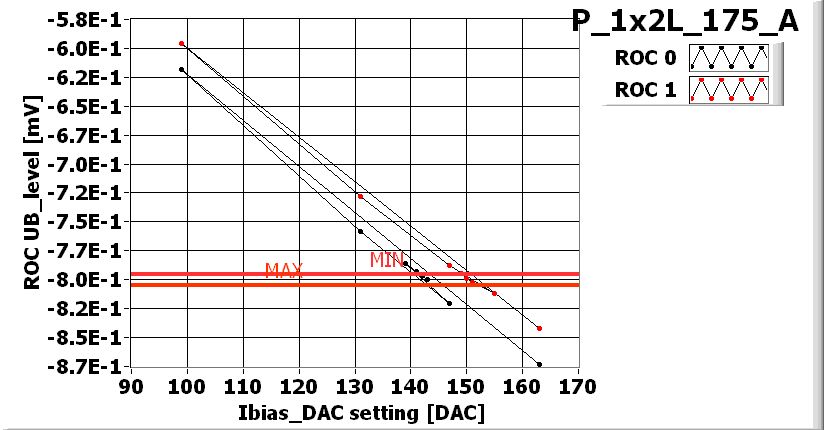

![[IMAGE] of](P_1x2L_175_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2L_175_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_175_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_175_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_175_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_175_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY TO BE POTTED
