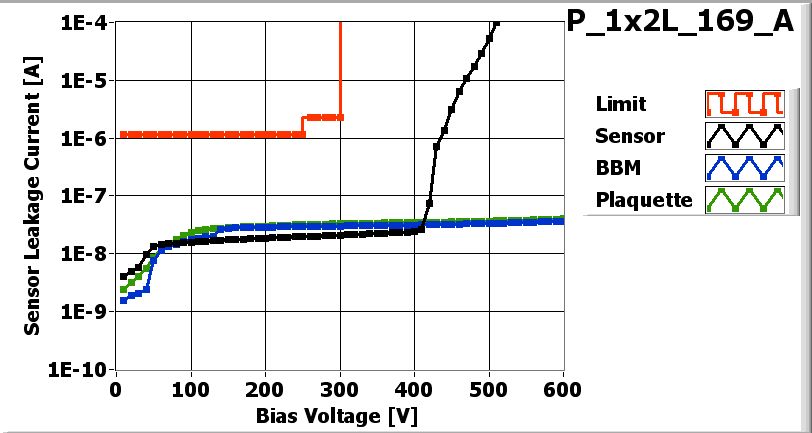

![[IMAGE] of](P_1x2L_169_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

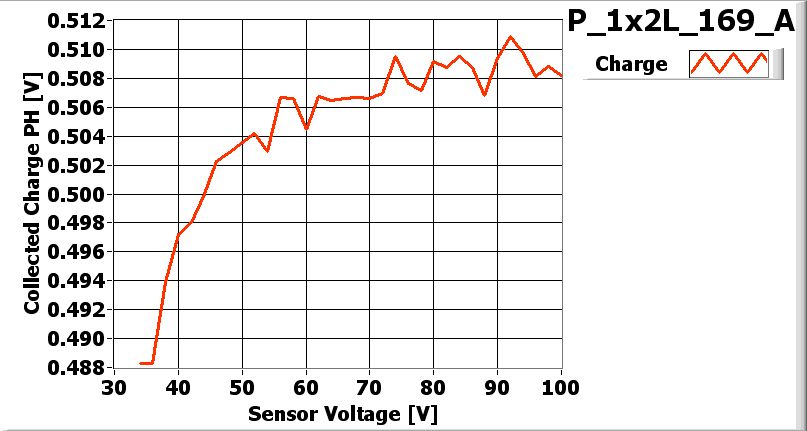

![[IMAGE] of](P_1x2L_169_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 52 V |
| Operational Voltage 92 V |
Parts committed by Isaac Childres on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_169-1x2T |
| VHDI | 1x2L_266 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W46_D3LQC5T | 63B |
| ROC1 | W46_D3LQC5T | 63A |
Inspected by Lockwood Gale on date 5/18/2007
| LR_dev | 0.042 |
| LL_dev | 0.031 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Released pusher before releasing joining force. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/18/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/18/2007 by Ortiz Jason
PLAQUETTE made READY for testing on 5/18/2007 by Ortiz Jason
P_1x2L_169_Aon 5/22/2007 11:29 AM
P_1x2L_169_A-1on 5/22/2007 1:20 PM
P_1x2L_169_A-1on 5/22/2007 1:20 PM
PLAQUETTE TESTED on 2007-05-22 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 148 | 148 | |
| Vana | 145 | 126 | |
| Cal_Del | 84 | 93 | |
| Vthrs_Comp | 88 | 82 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 4 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 4 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

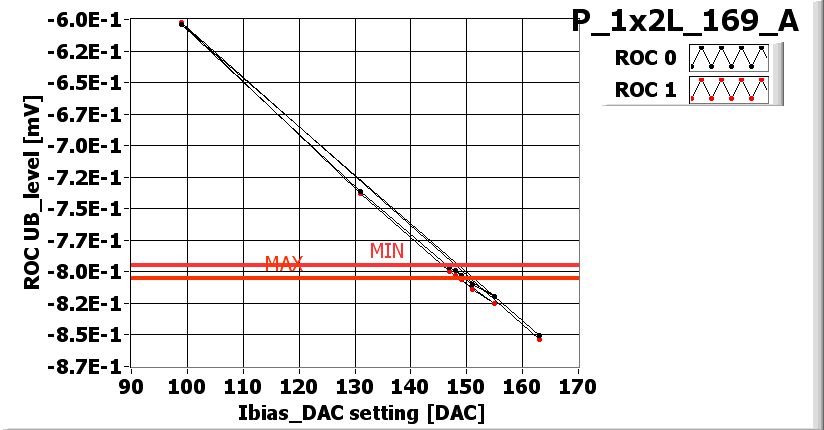

![[IMAGE] of](P_1x2L_169_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

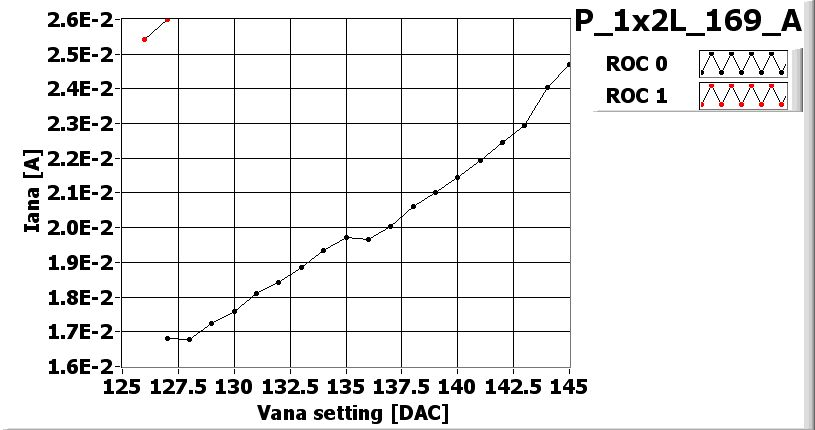

![[IMAGE] of](P_1x2L_169_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_169_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_169_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_169_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_169_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 100 |
| Vsf | 150 | 135 |
| VoffsetOp | 105 | 90 |
| VIbias_PH | 105 | 95 |
Noise MAP at VMAX
![[IMAGE] of](P_1x2L_169_A-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_169_A-1-580-efficiency.jpg)

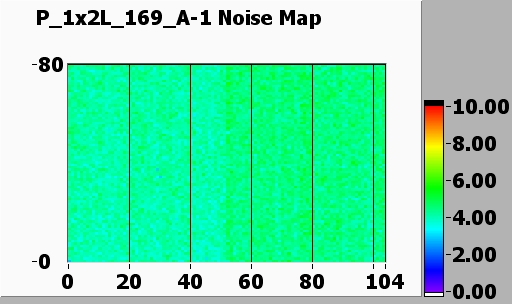

Noise MAP at -200 V
![[IMAGE] of](P_1x2L_169_A-1-200-noise.jpg)

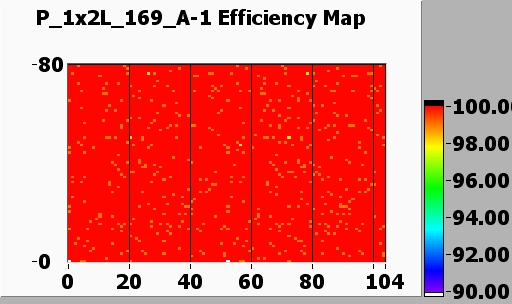

Efficiency MAP
![[IMAGE] of](P_1x2L_169_A-1-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
