P_1x2L_169_A-1

Production testing

Date:5/22/2007

Operator: Gino Bolla

start testing time:1:20 PM

Sensor: S_1x2L_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0W46_D3LQC5T63B
ROC1W46_D3LQC5T63A

Depletion Voltage is -52 and suggested operational voltage is -92
Ibias_DAC, Ibias_DAC Data 148 148
Vana, VanaData 145 126
CalDelData and plots8493
VthrCompData and plots8882
TestDdata ,TestD Plots020
LightData ,Light Plots00
Pass/Fail TestD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD

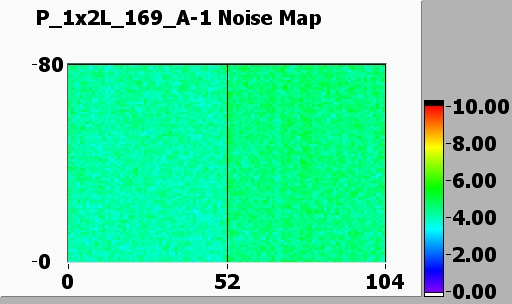

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe100100
Vsf150135
VoffsetOp10590
VIbias_PH10595
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.099051

SIGMA = 0.319614
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.427899

SIGMA = 0.351968

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_1x2L_169_A.html,

End testing time: 1:42 PM
