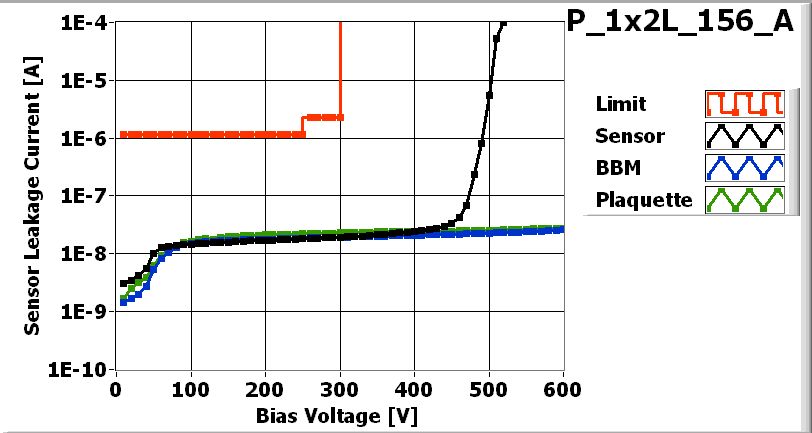

![[IMAGE] of](P_1x2L_156_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

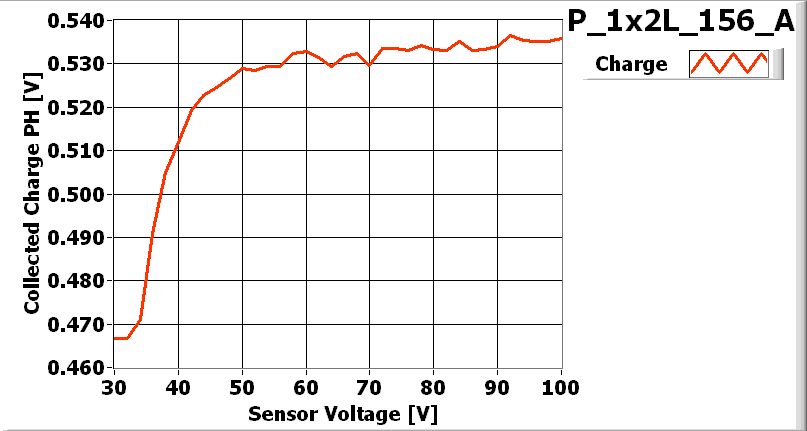

![[IMAGE] of](P_1x2L_156_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 1/22/2007
| Part | ID |
|---|---|
| BBM | BBM_156-1x2T |
| VHDI | 1x2L_223 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 61D |
| ROC1 | W28_X54K5TT | 61C |
Inspected by Lockwood Gale on date 1/24/2007
| LR_dev | 0.060 |
| LL_dev | 0.075 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 1/24/2007 by Lockwood Gale
P_1x2L_156_Aon 1/24/2007 1:34 PM
P_1x2L_156_Aon 1/24/2007 1:34 PM
PLAQUETTE TESTED on 2007-01-24 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 134 | 142 | |
| Vana | 135 | 125 | |
| Cal_Del | 72 | 75 | |
| Vthrs_Comp | 79 | 85 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

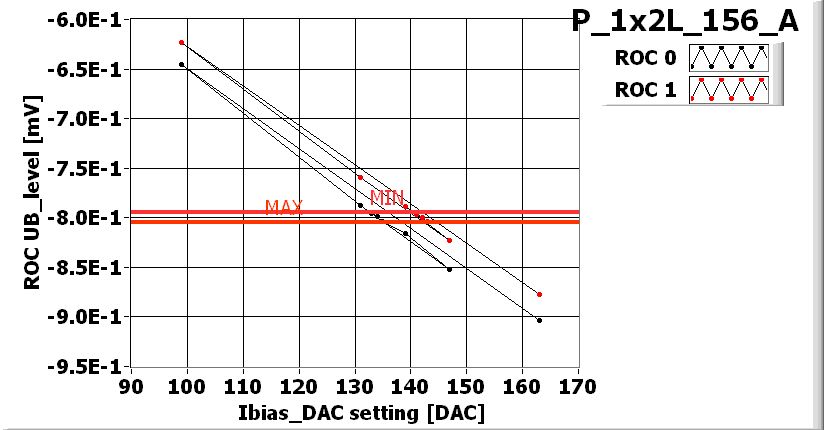

![[IMAGE] of](P_1x2L_156_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

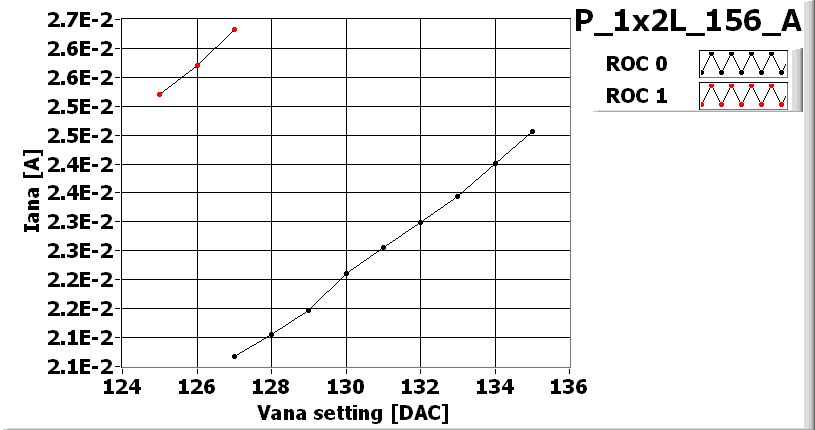

![[IMAGE] of](P_1x2L_156_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_156_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_156_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_156_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_156_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY TO BE POTTED
