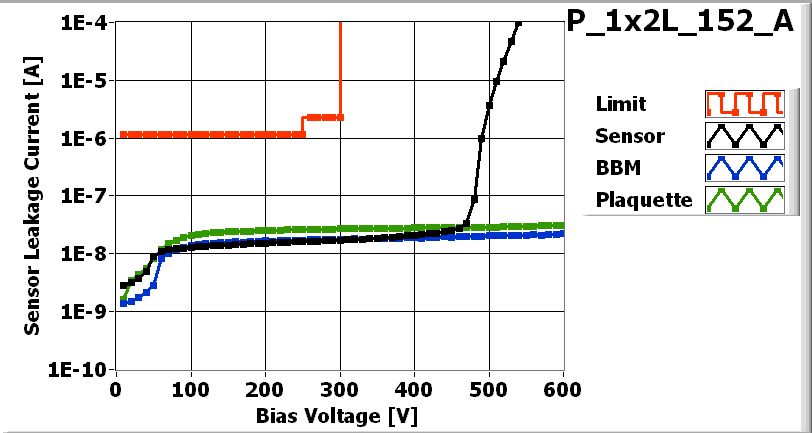

![[IMAGE] of](P_1x2L_152_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2L_152_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Arndt Kirk on date 2/27/2007
| Part | ID |
|---|---|
| BBM | BBM_152-1x2T |
| VHDI | 1x2L_248 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W34_XA4K3PT | 62C |
| ROC1 | W34_XA4K3PT | 62A |
Inspected by Arndt Kirk on date 3/7/2007
| LR_dev | 0.121 |
| LL_dev | 0.131 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 3/7/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/7/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/7/2007 by Ozhan Koybasi
P_1x2L_152_Aon 3/8/2007 10:04 AM
P_1x2L_152_Aon 3/8/2007 10:04 AM
PLAQUETTE TESTED on 2007-03-08 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 132 | 130 | |
| Vana | 134 | 120 | |
| Cal_Del | 82 | 78 | |
| Vthrs_Comp | 85 | 74 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2L_152_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2L_152_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_152_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_152_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_152_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_152_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 165 |
| Vsf | 140 | 140 |
| VoffsetOp | 90 | 75 |
| VIbias_PH | 100 | 100 |

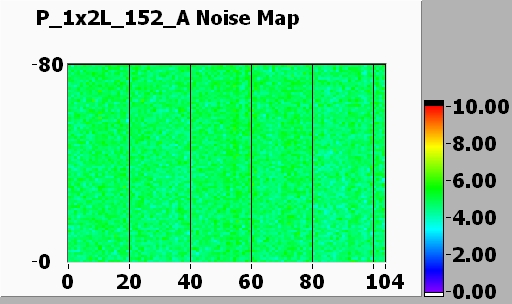

Noise MAP
![[IMAGE] of](P_1x2L_152_A-580-noise.jpg)

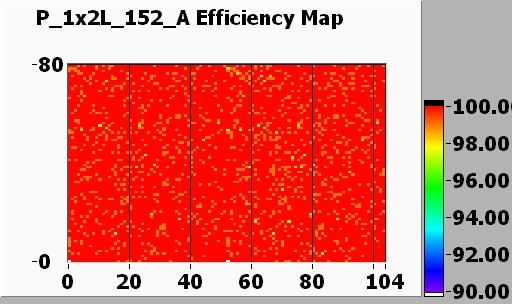

Efficiency MAP
![[IMAGE] of](P_1x2L_152_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
