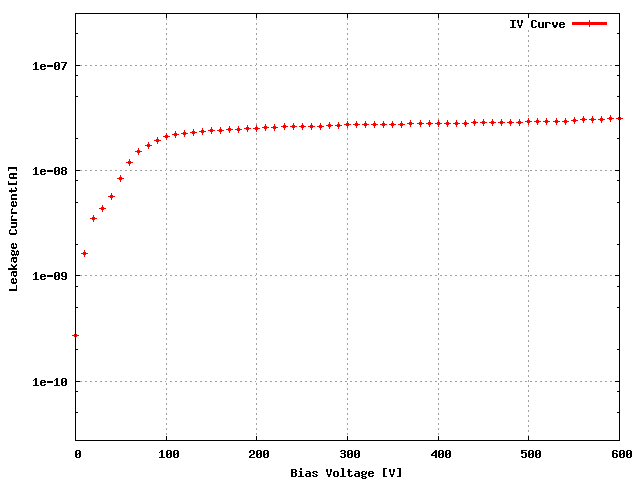

Sensor: S_1x2L_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W34_XA4K3PT | 62C |
| ROC1 | W34_XA4K3PT | 62A |
| Ibias_DAC, Ibias_DAC Data | 132 | 130 |
| Vana, VanaData | 134 | 120 |
| CalDelData and plots | 82 | 78 |
| VthrCompData and plots | 85 | 74 | Depletion Voltage is -50 and suggested operational voltage is -90
| TestDdata ,TestD Plots | 0 | 0 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP
![[IMAGE] of](P_1x2L_152_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_152_A-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 120 | 165 |
| Vsf | 140 | 140 |
| VoffsetOp | 90 | 75 |
| VIbias_PH | 100 | 100 |
| ROC0 NOISE | ![[IMAGE] of](P_1x2L_152_A-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_152_A-580-noise-ROC0-HISTO.jpg) | MEAN = 4.739796SIGMA = 0.358528 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2L_152_A-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_152_A-580-noise-ROC1-HISTO.jpg) | MEAN = 4.709903SIGMA = 0.384854 |
Comment (if any): Good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:22 AM
