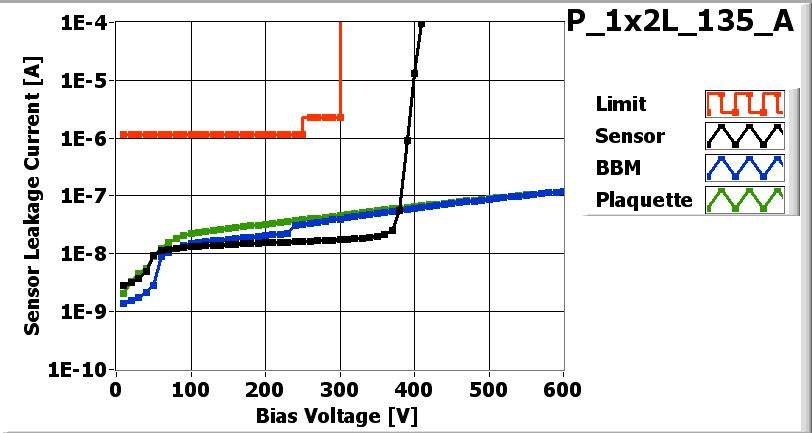

![[IMAGE] of](P_1x2L_135_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2L_135_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 3/20/2007
| Part | ID |
|---|---|
| BBM | BBM_135-1x2T |
| VHDI | 1x2L_252 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W36_XD4K3LT | 35C |
| ROC1 | W36_XD4K3LT | 35B |
Inspected by Lockwood Gale on date 3/27/2007
| LR_dev | 0.061 |
| LL_dev | 0.054 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 3/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/28/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/28/2007 by Ozhan Koybasi
P_1x2L_135_Aon 3/29/2007 10:38 AM
P_1x2L_135_Aon 3/29/2007 10:38 AM
PLAQUETTE TESTED on 2007-03-29 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 124 | 132 | |
| Vana | 120 | 125 | |
| Cal_Del | 85 | 79 | |
| Vthrs_Comp | 73 | 71 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

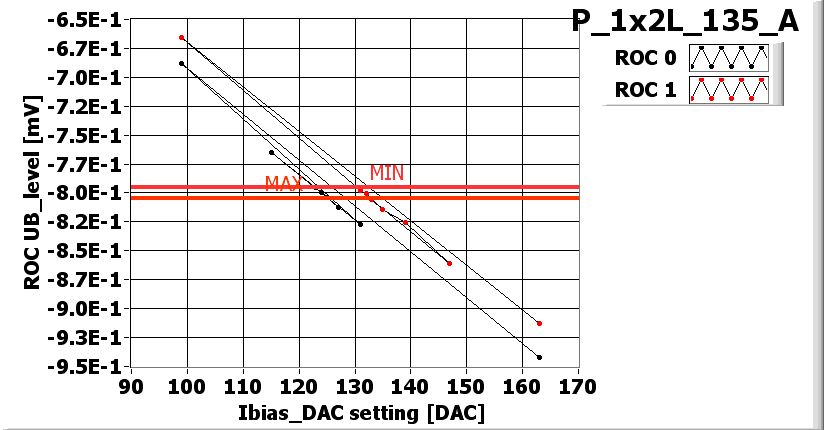

![[IMAGE] of](P_1x2L_135_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

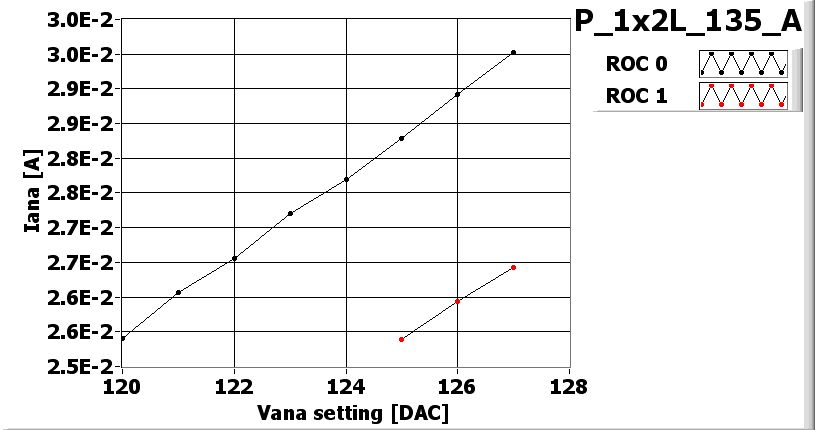

![[IMAGE] of](P_1x2L_135_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_135_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_135_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_135_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_135_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 125 | 120 |
| Vsf | 130 | 135 |
| VoffsetOp | 55 | 80 |
| VIbias_PH | 95 | 95 |

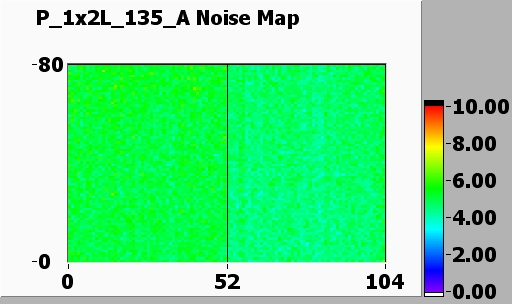

Noise MAP
![[IMAGE] of](P_1x2L_135_A-580-noise.jpg)

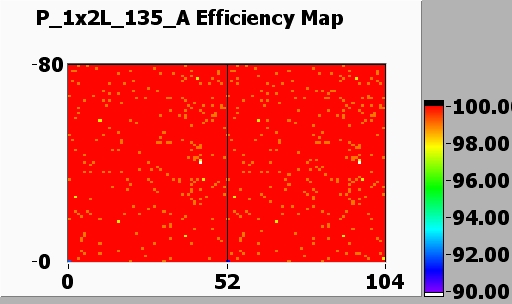

Efficiency MAP
![[IMAGE] of](P_1x2L_135_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
