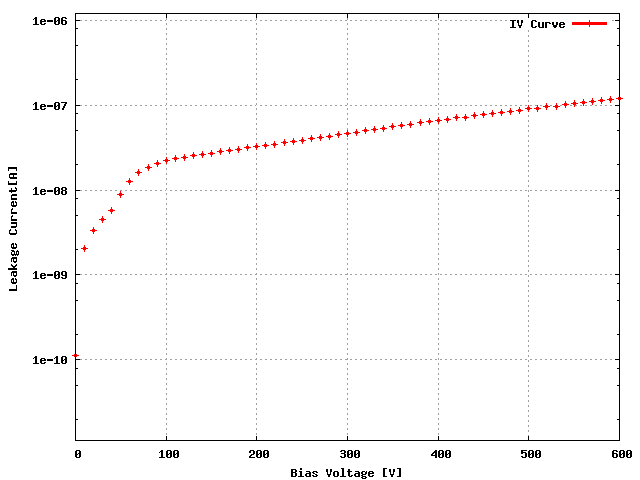

Sensor: S_1x2L_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W36_XD4K3LT | 35C |
| ROC1 | W36_XD4K3LT | 35B |
| Ibias_DAC, Ibias_DAC Data | 124 | 132 |
| Vana, VanaData | 120 | 125 |
| CalDelData and plots | 85 | 79 |
| VthrCompData and plots | 73 | 71 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 1 | 0 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP
![[IMAGE] of](P_1x2L_135_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_135_A-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 125 | 120 |
| Vsf | 130 | 135 |
| VoffsetOp | 55 | 80 |
| VIbias_PH | 95 | 95 |

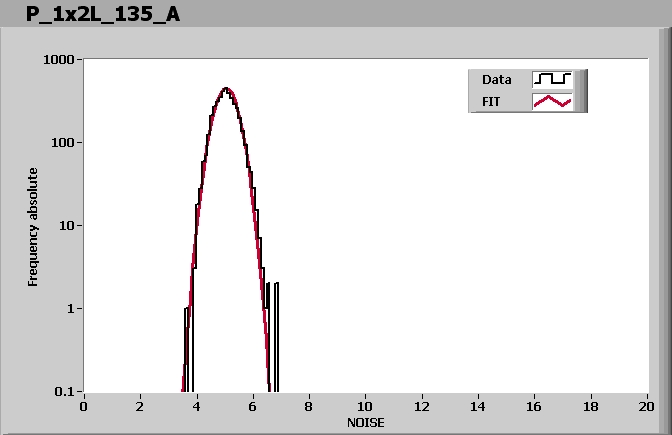

| ROC0 NOISE | ![[IMAGE] of](P_1x2L_135_A-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_135_A-580-noise-ROC0-HISTO.jpg) | MEAN = 5.041883SIGMA = 0.377195 |

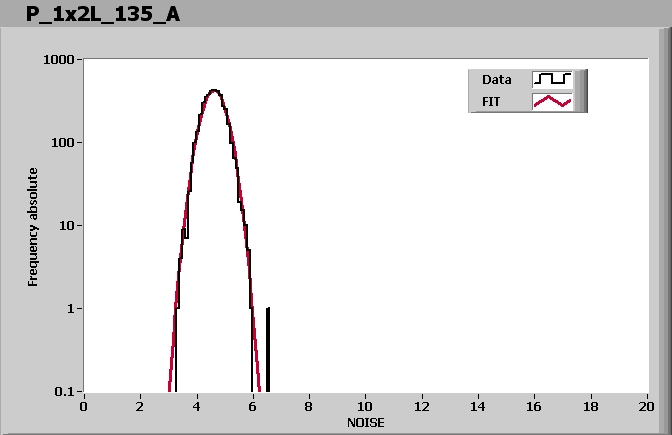

| ROC1 NOISE | ![[IMAGE] of](P_1x2L_135_A-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_135_A-580-noise-ROC1-HISTO.jpg) | MEAN = 4.610647SIGMA = 0.392487 |
Comment (if any): Good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:55 AM
