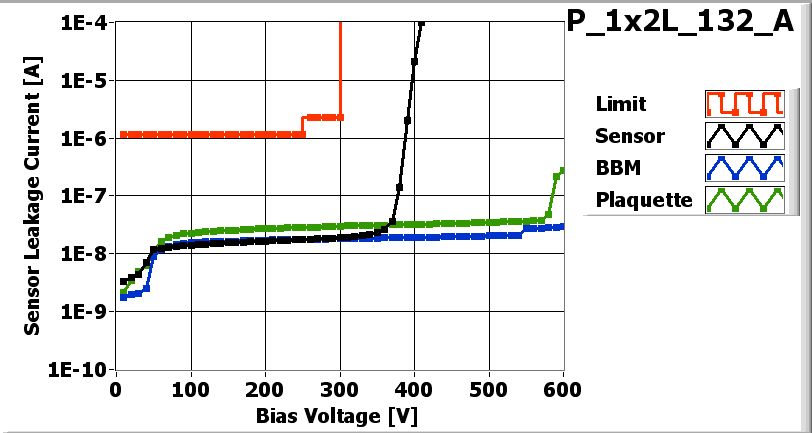

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2L_132_A_LASER.jpg)

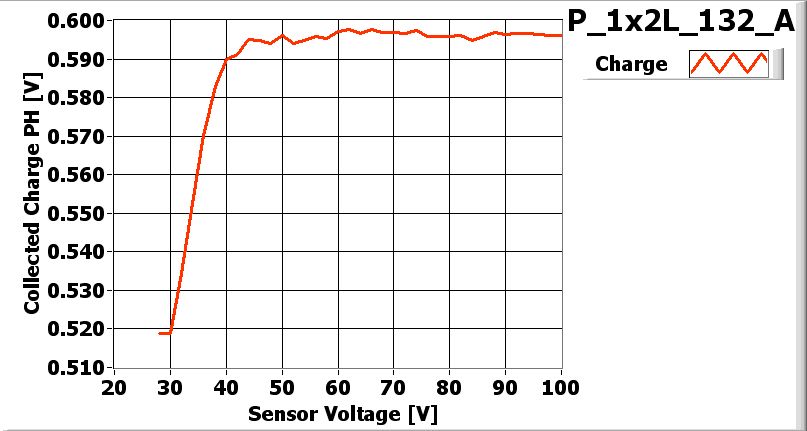

| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_132-1x2T |
| VHDI | 1x2L_280 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W45_D3LQFLT | 40C |
| ROC1 | W45_D3LQFLT | 40B |
Inspected by Lockwood Gale on date 6/28/2007
| LR_dev | 0.050 |
| LL_dev | 0.008 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/28/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/28/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/28/2007 by Kozak Brian
P_1x2L_132_Aon 6/29/2007 11:33 AM
P_1x2L_132_Aon 6/29/2007 11:33 AM
PLAQUETTE TESTED on 2007-06-29 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 156 | 144 | |
| Vana | 133 | 131 | |
| Cal_Del | 85 | 93 | |
| Vthrs_Comp | 90 | 84 | |
| Unbumped | 0 | 0 | |
| Dead | 1 | 1 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 1 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2L_132_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2L_132_A_Vana.jpg) |

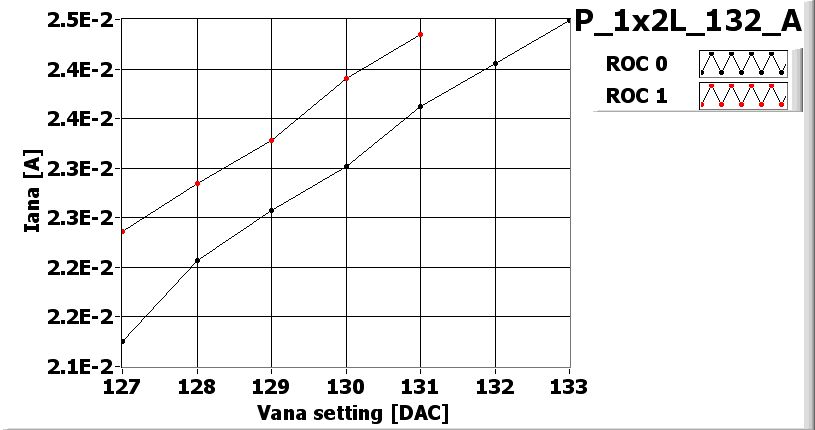

VANA_XML-File |
![[IMAGE] of](P_1x2L_132_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_132_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_132_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_132_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 110 | 120 |
| Vsf | 140 | 140 |
| VoffsetOp | 105 | 100 |
| VIbias_PH | 100 | 95 |

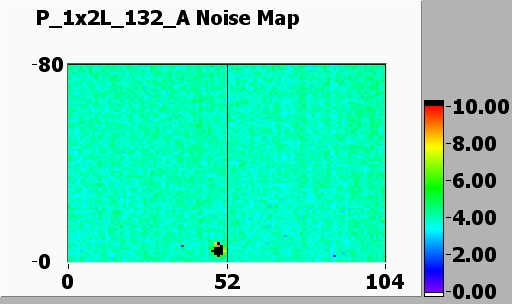

Noise MAP at VMAX
![[IMAGE] of](P_1x2L_132_A-580-noise.jpg)

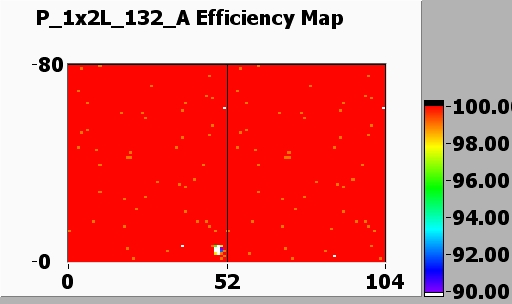

Efficiency MAP
![[IMAGE] of](P_1x2L_132_A-580-efficiency.jpg)

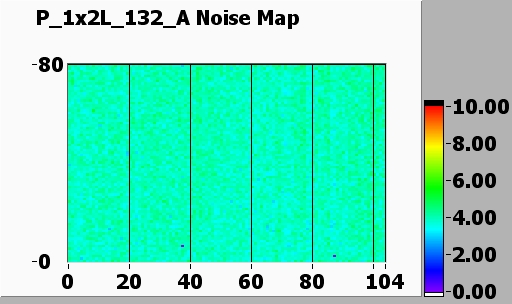

Noise MAP at -200 V
![[IMAGE] of](P_1x2L_132_A-200-noise.jpg)

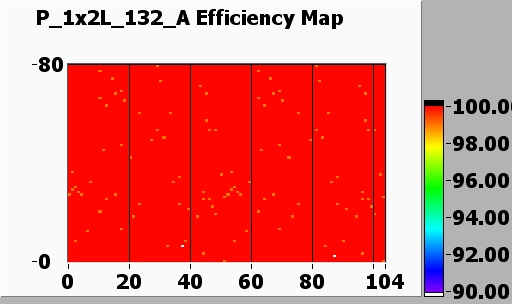

Efficiency MAP
![[IMAGE] of](P_1x2L_132_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
