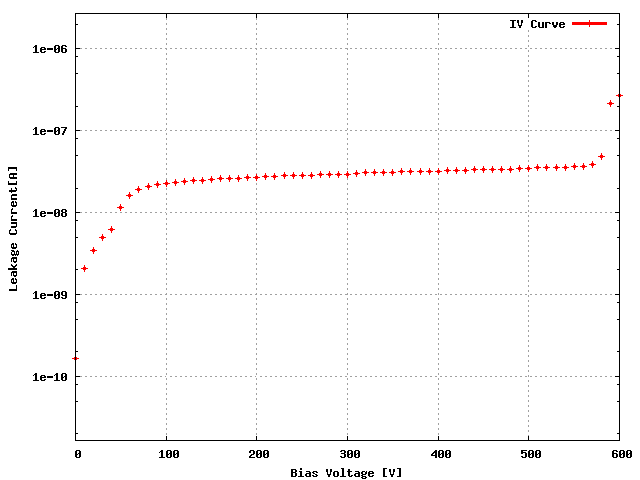

Sensor: S_1x2L_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W45_D3LQFLT | 40C |
| ROC1 | W45_D3LQFLT | 40B |
| Ibias_DAC, Ibias_DAC Data | 156 | 144 |
| Vana, VanaData | 133 | 131 |
| CalDelData and plots | 85 | 93 |
| VthrCompData and plots | 90 | 84 | Depletion Voltage is -44 and suggested operational voltage is -84
| TestDdata ,TestD Plots | 1 | 2 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP at VMAX
![[IMAGE] of](P_1x2L_132_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_132_A-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 110 | 120 |
| Vsf | 140 | 140 |
| VoffsetOp | 105 | 100 |
| VIbias_PH | 100 | 95 |

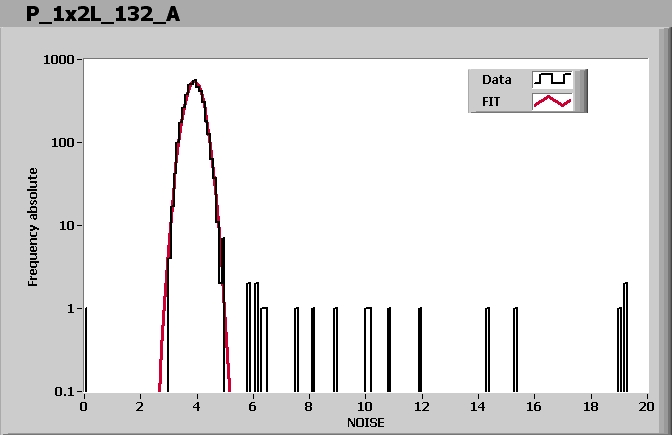

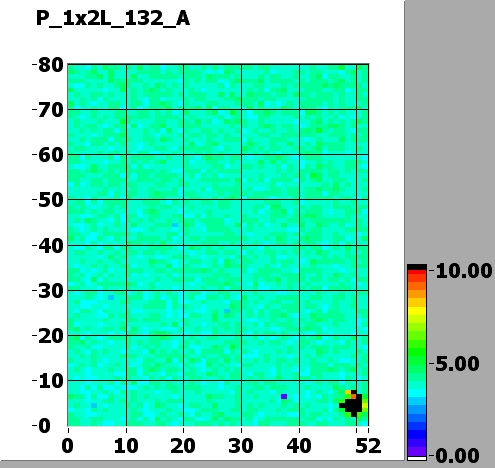

| ROC0 NOISE | ![[IMAGE] of](P_1x2L_132_A-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_132_A-580-noise-ROC0-HISTO.jpg) | MEAN = 3.908821SIGMA = 0.301424 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2L_132_A-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_132_A-580-noise-ROC1-HISTO.jpg) | MEAN = 3.891889SIGMA = 0.316760 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 11:57 AM
