![[IMAGE] of](P_1x2L_122_C_IV.jpg)

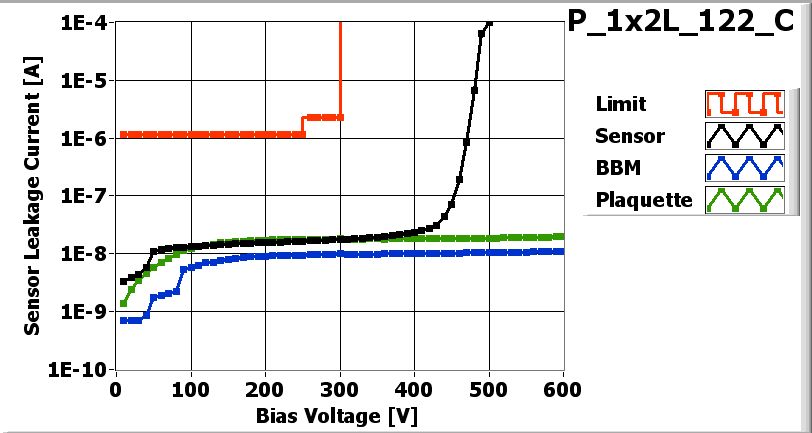

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2L_122_C_LASER.jpg)

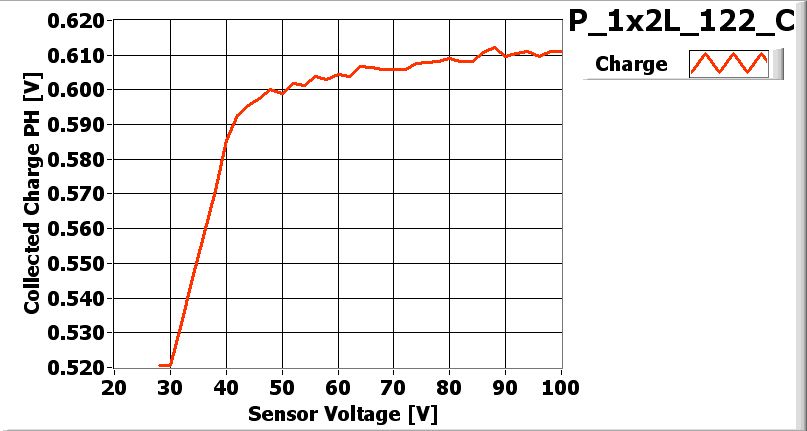

| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_122-1x2T |
| VHDI | 1x2L_281 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KMNG2DT | 12D |
| ROC1 | KMNG2DT | 42A |
Inspected by Lockwood Gale on date 5/24/2007
| LR_dev | 0.045 |
| LL_dev | 0.069 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/24/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/24/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/24/2007 by Perera Rajiv
P_1x2L_122_Con 5/25/2007 11:50 AM
P_1x2L_122_Con 5/25/2007 11:50 AM
PLAQUETTE TESTED on 2007-05-25 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 156 | 170 | |
| Vana | 144 | 165 | |
| Cal_Del | 64 | 70 | |
| Vthrs_Comp | 83 | 94 | |
| Unbumped | 8 | 1 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 8 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2L_122_C_Ibias-dac.jpg) |

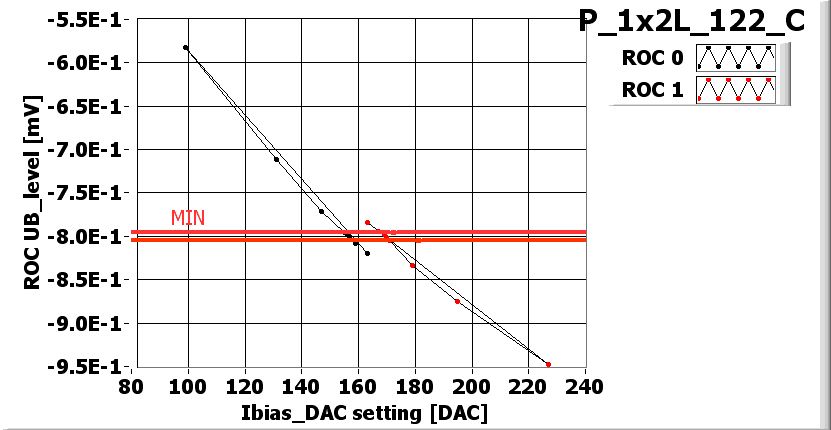

I_BIAS_DAC_XML-File |

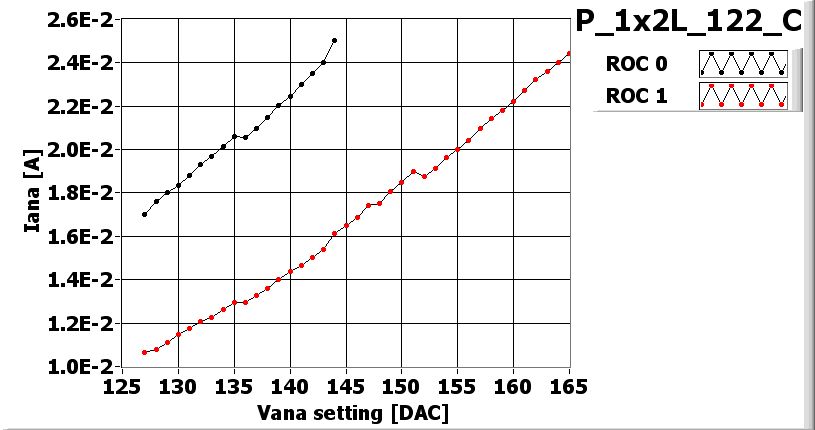

![[IMAGE] of](P_1x2L_122_C_Vana.jpg) |
VANA_XML-File |

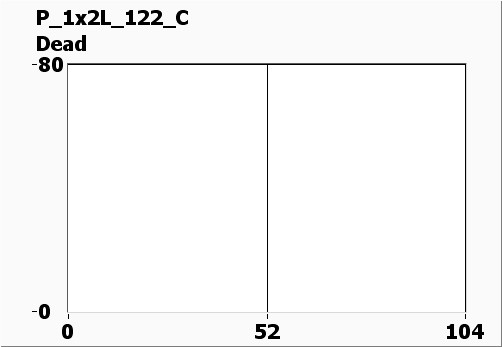

![[IMAGE] of](P_1x2L_122_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_122_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_122_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_122_Cno-bump-light.jpg) |

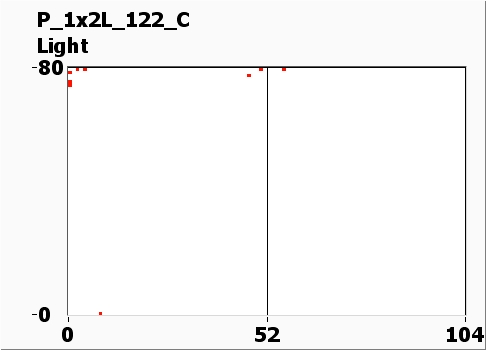

LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 100 |
| Vsf | 140 | 165 |
| VoffsetOp | 100 | 115 |
| VIbias_PH | 100 | 100 |

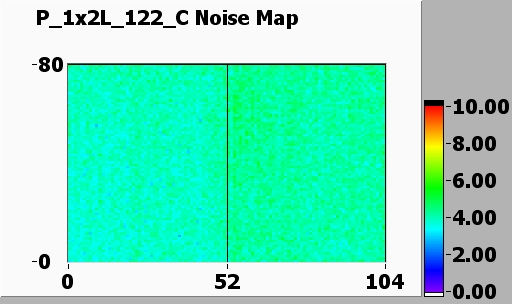

Noise MAP at VMAX
![[IMAGE] of](P_1x2L_122_C-580-noise.jpg)

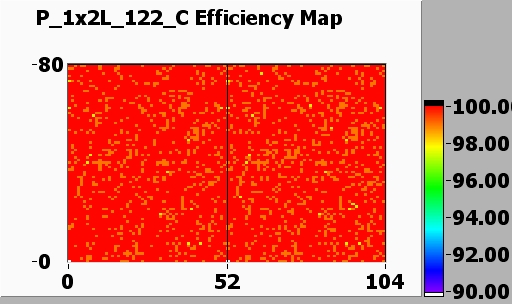

Efficiency MAP
![[IMAGE] of](P_1x2L_122_C-580-efficiency.jpg)

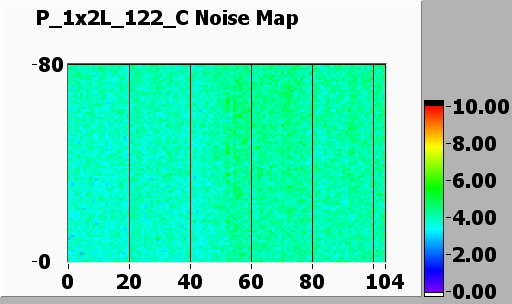

Noise MAP at -200 V
![[IMAGE] of](P_1x2L_122_C-200-noise.jpg)

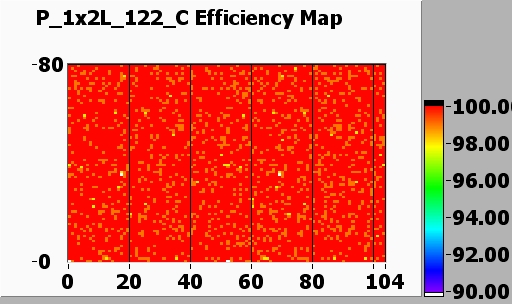

Efficiency MAP
![[IMAGE] of](P_1x2L_122_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
