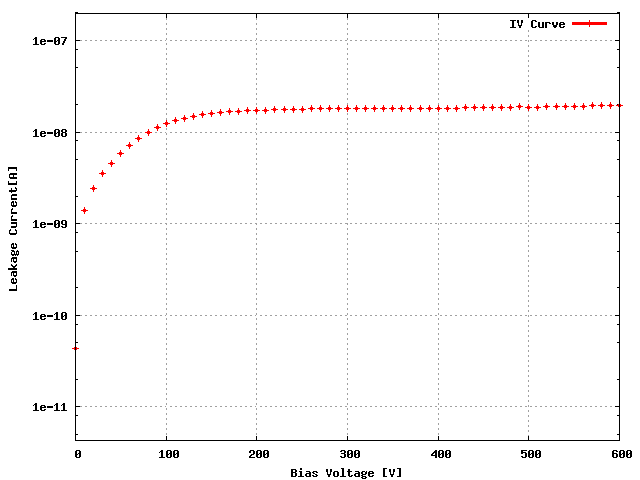

Sensor: S_1x2L_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KMNG2DT | 12D |
| ROC1 | KMNG2DT | 42A |
| Ibias_DAC, Ibias_DAC Data | 156 | 170 |
| Vana, VanaData | 144 | 165 |
| CalDelData and plots | 64 | 70 |
| VthrCompData and plots | 83 | 94 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 4 | 1 |
| LightData ,Light Plots | 8 | 1 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP at VMAX
![[IMAGE] of](P_1x2L_122_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_122_C-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 95 | 100 |
| Vsf | 140 | 165 |
| VoffsetOp | 100 | 115 |
| VIbias_PH | 100 | 100 |

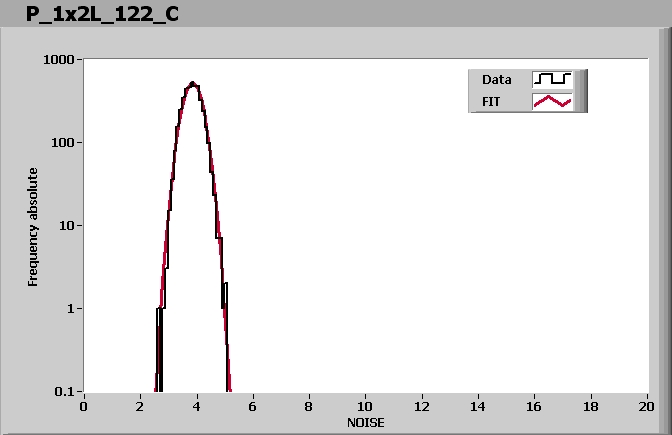

| ROC0 NOISE | ![[IMAGE] of](P_1x2L_122_C-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_122_C-580-noise-ROC0-HISTO.jpg) | MEAN = 3.848974SIGMA = 0.319487 |

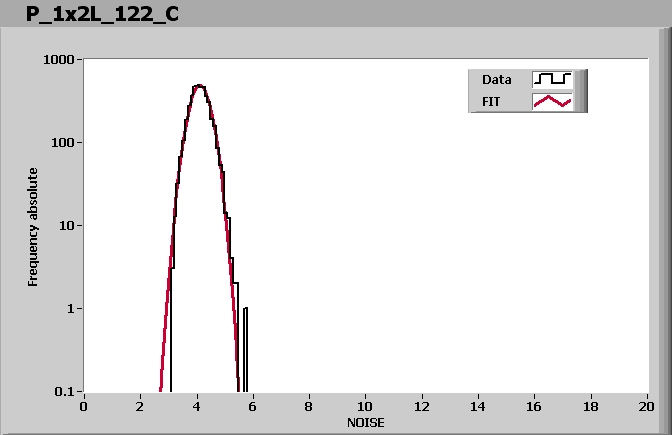

| ROC1 NOISE | ![[IMAGE] of](P_1x2L_122_C-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_122_C-580-noise-ROC1-HISTO.jpg) | MEAN = 4.107161SIGMA = 0.337702 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:15 PM
