P_1x2L_117_A

Parts committed by Bolla Gino on date 1/4/2007

PartID
BBMBBM_117-1x2T
VHDI1x2L_226

ROCROC waferLabel
ROC0W32_XA4K5NT16D
ROC1W32_XA4K5NT16C

Inspected by Lockwood Gale on date 1/8/2007
LR_dev0.086
LL_dev0.095
FINAL COMMENT by Lockwood GaleNo assembly problems. NO problems wirebonding.

PLAQUETTE made READY for testing on 1/8/2007 by Lockwood Gale

P_1x2L_117_Aon 1/8/2007 9:56 AM

PLAQUETTE TESTED on 2007-01-08 by Gino Bolla

[IMAGE] of

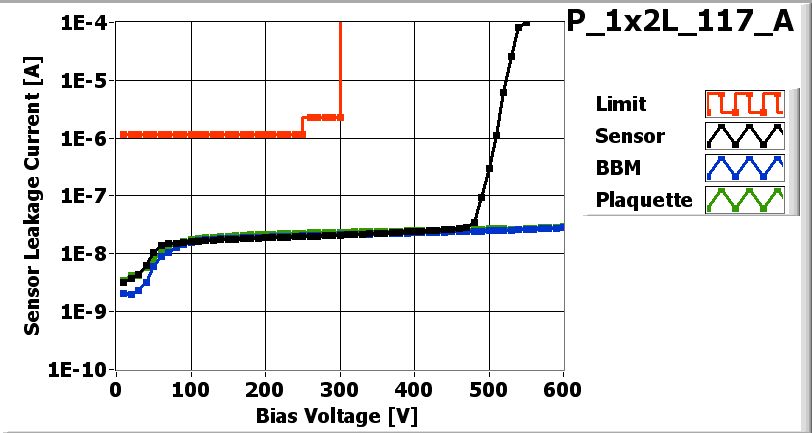

IV_XML-File
Maximum Voltage 600 V
[IMAGE] of

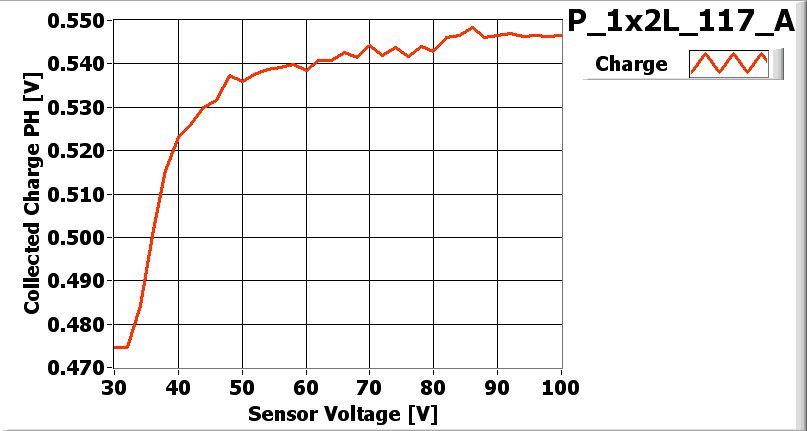

LASER_XML-File
Depletion Voltage 46 V
Operational Voltage 86 V

ROCROC0ROC1
Ibias_DAC126134
Vana127146
Cal_Del7277
Vthrs_Comp7377
Unbumped00
Dead00
Noisy00
Undecoded00
Total BAD00

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

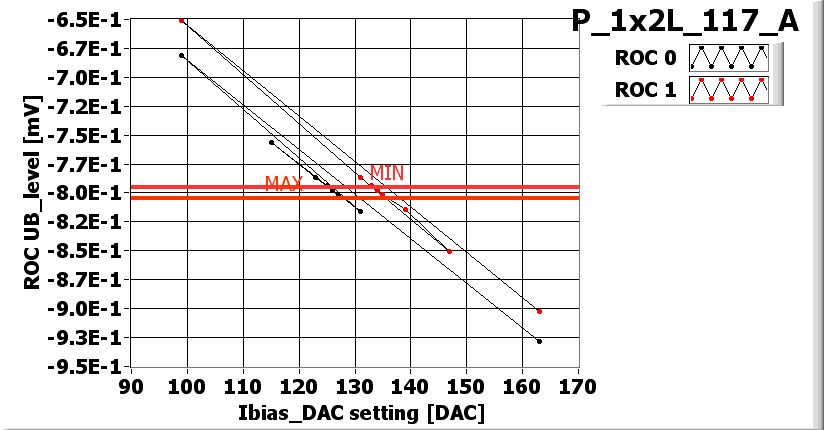

[IMAGE] of I_BIAS_DAC_XML-File

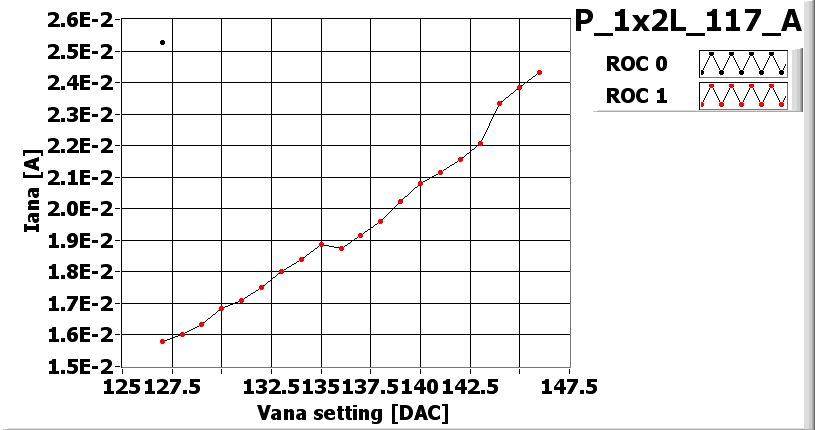

[IMAGE] of VANA_XML-File

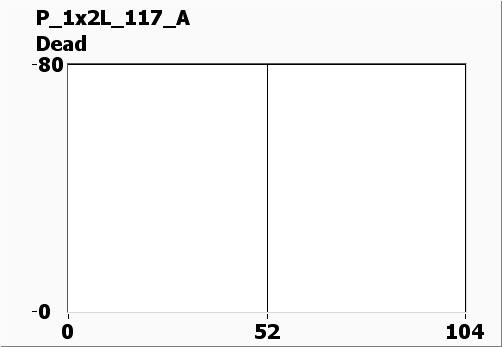

[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File

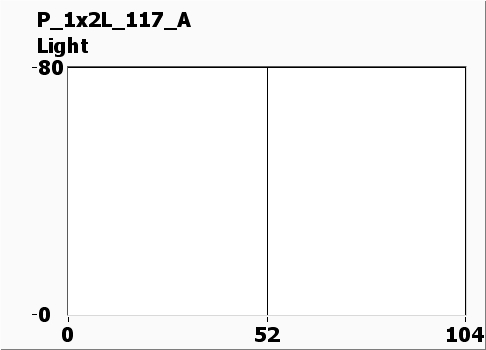

[IMAGE] of LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

PLAQUETTE encapsulated on 1/17/2007 by Arndt Kirk

P_1x2L_117_A-1on 1/17/2007 11:15 AM

P_1x2L_117_A-1on 1/17/2007 11:15 AM AFTER POTTING

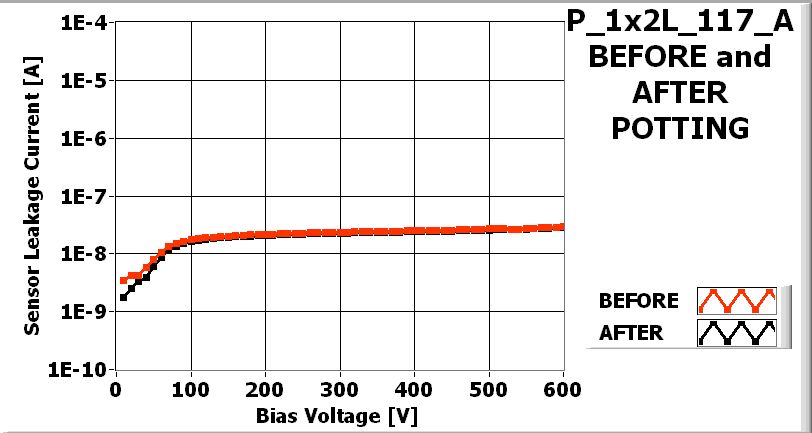

[IMAGE] of

BAD CHANNELS COMPARISON Before/after ENCAPSULATION

ROCDEADNOISYUNDECODEDTESTDLIGHT
ROC00/00/00/00/00/0
ROC10/00/00/00/00/0

DEVICE READY FOR SHIPPING

Shipped on date 2007-01-18

Plaquette assigned to panel P4L_026
