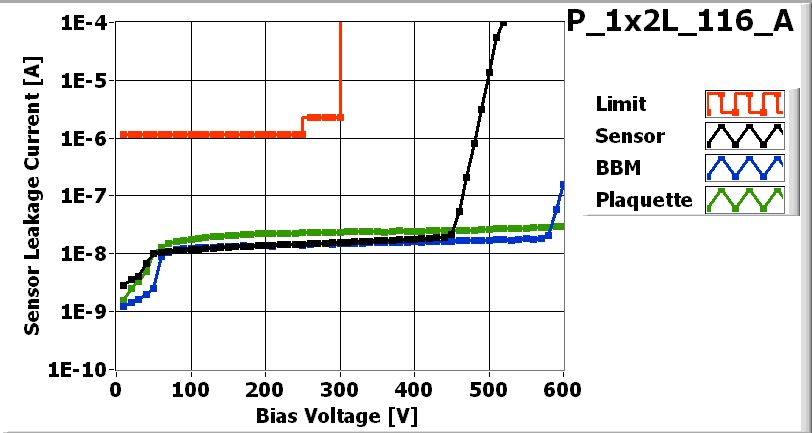

![[IMAGE] of](P_1x2L_116_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

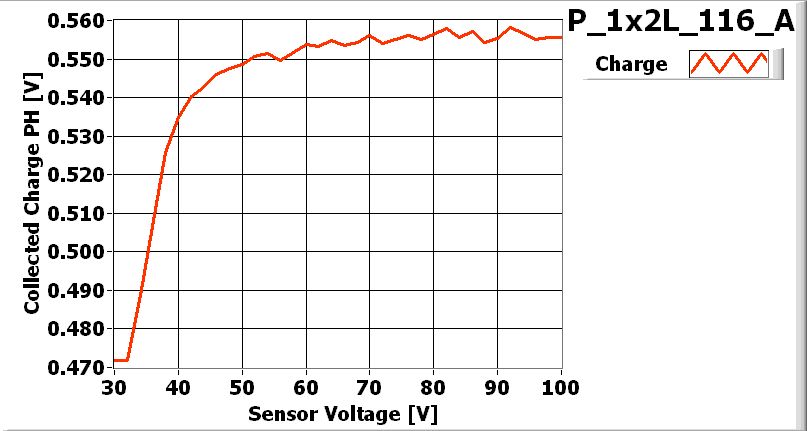

![[IMAGE] of](P_1x2L_116_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Arndt Kirk on date 3/1/2007
| Part | ID |
|---|---|
| BBM | BBM_116-1x2T |
| VHDI | 1x2L_249 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W34_XA4K3PT | 26D |
| ROC1 | W34_XA4K3PT | 26C |
Inspected by Arndt Kirk on date 3/5/2007
| LR_dev | 0.080 |
| LL_dev | 0.071 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem |
PLAQUETTE made READY for ENCAPSULATION on 3/5/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/6/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/6/2007 by Ozhan Koybasi
P_1x2L_116_Aon 3/7/2007 1:01 PM
P_1x2L_116_A-1on 3/7/2007 1:10 PM
P_1x2L_116_A-1on 3/7/2007 1:10 PM
PLAQUETTE TESTED on 2007-03-07 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 146 | 144 | |
| Vana | 138 | 123 | |
| Cal_Del | 77 | 72 | |
| Vthrs_Comp | 74 | 87 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

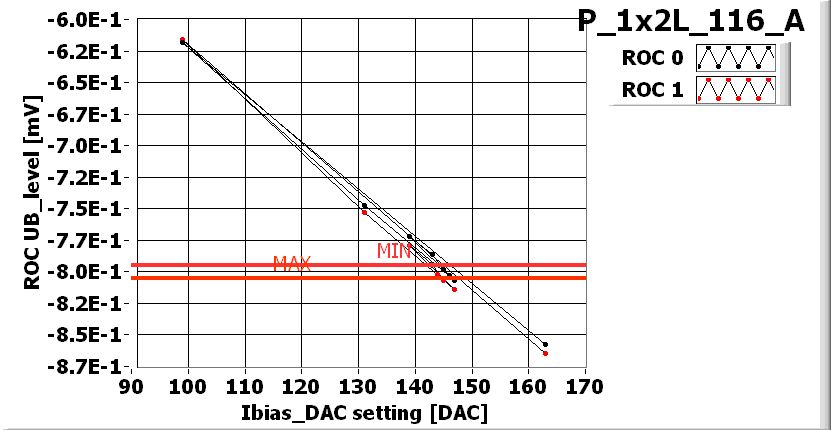

![[IMAGE] of](P_1x2L_116_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

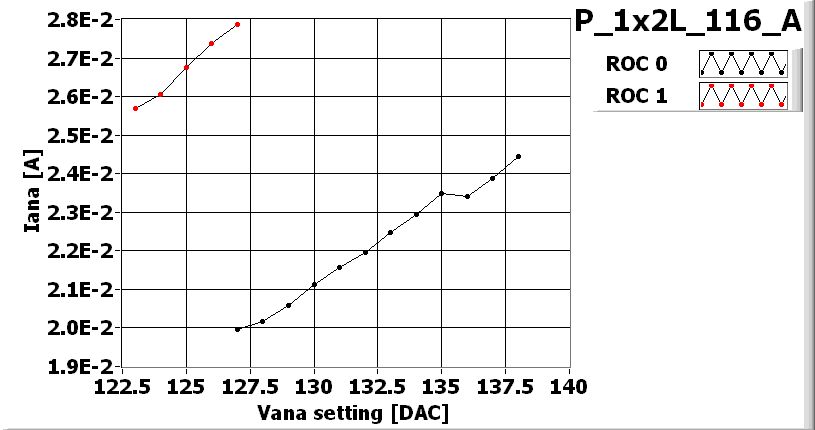

![[IMAGE] of](P_1x2L_116_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_116_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_116_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_116_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_116_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 110 | 130 |
| Vsf | 140 | 140 |
| VoffsetOp | 95 | 90 |
| VIbias_PH | 100 | 100 |
Noise MAP
![[IMAGE] of](P_1x2L_116_A-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_116_A-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
