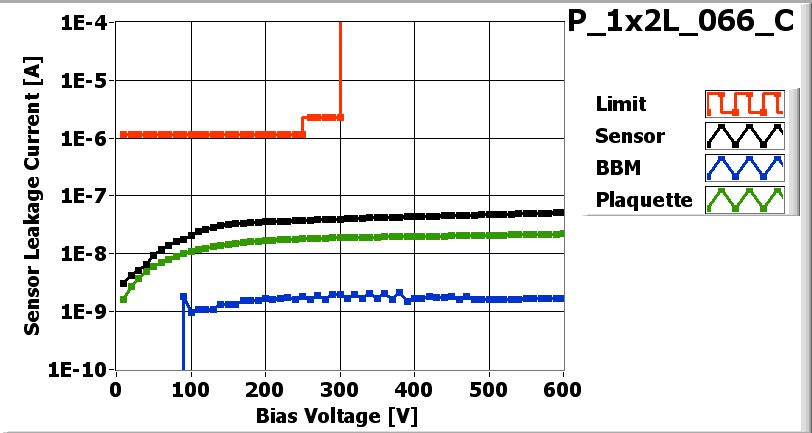

![[IMAGE] of](P_1x2L_066_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2L_066_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 4/16/2007
| Part | ID |
|---|---|
| BBM | BBM_066-1x2T |
| VHDI | 1x2L_257 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X94KFJT | 64C |
| ROC1 | X94KFJT | 64D |
Inspected by Lockwood Gale on date 4/19/2007
| LR_dev | 0.044 |
| LL_dev | 0.058 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/19/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/20/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/20/2007 by Ozhan Koybasi
P_1x2L_066_Con 4/23/2007 10:03 AM
P_1x2L_066_Con 4/23/2007 10:03 AM
PLAQUETTE TESTED on 2007-04-23 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 132 | 144 | |
| Vana | 127 | 132 | |
| Cal_Del | 94 | 79 | |
| Vthrs_Comp | 83 | 85 | |
| Unbumped | 2 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 2 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

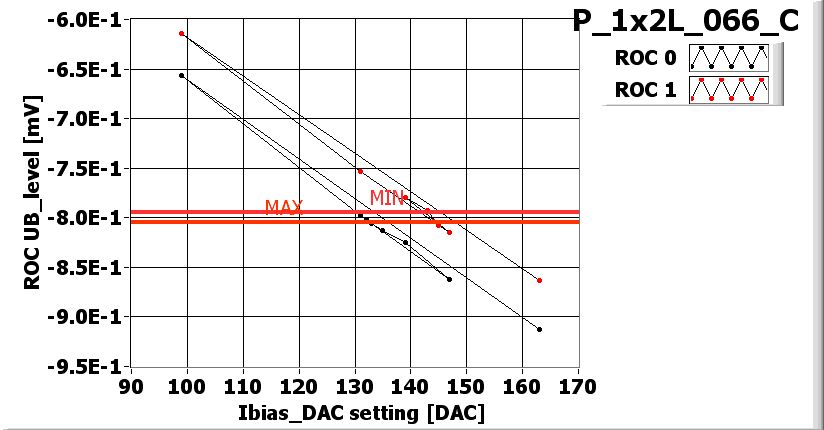

![[IMAGE] of](P_1x2L_066_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

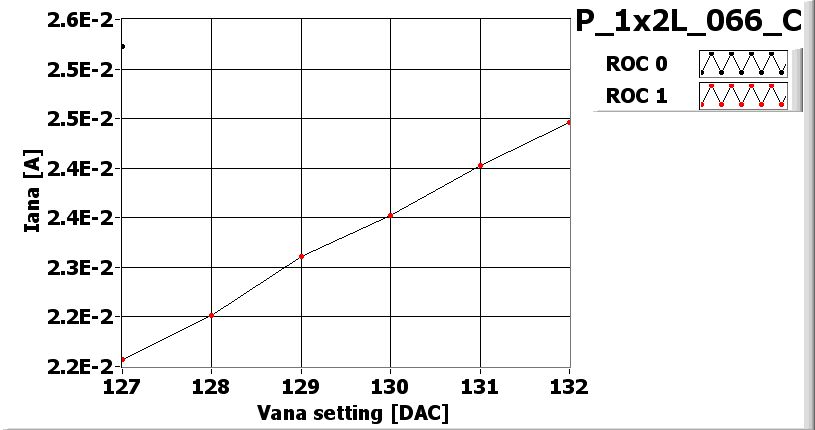

![[IMAGE] of](P_1x2L_066_C_Vana.jpg) |
VANA_XML-File |

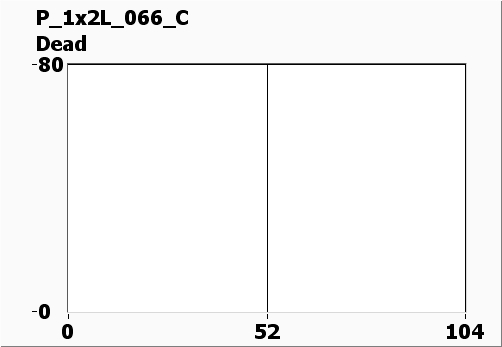

![[IMAGE] of](P_1x2L_066_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_066_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |

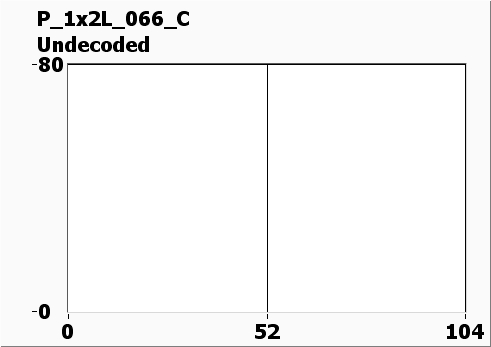

![[IMAGE] of](P_1x2L_066_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_066_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 130 | 140 |
| Vsf | 135 | 140 |
| VoffsetOp | 65 | 65 |
| VIbias_PH | 95 | 100 |

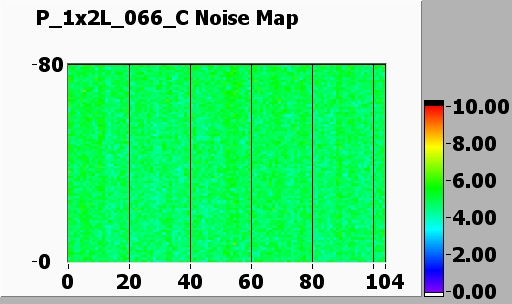

Noise MAP
![[IMAGE] of](P_1x2L_066_C-580-noise.jpg)

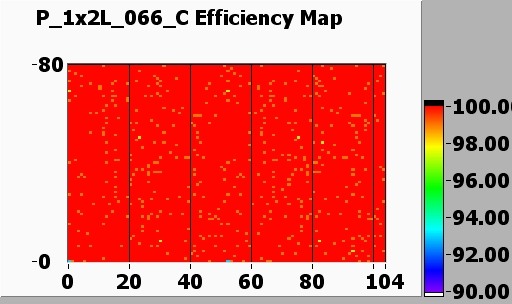

Efficiency MAP
![[IMAGE] of](P_1x2L_066_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
