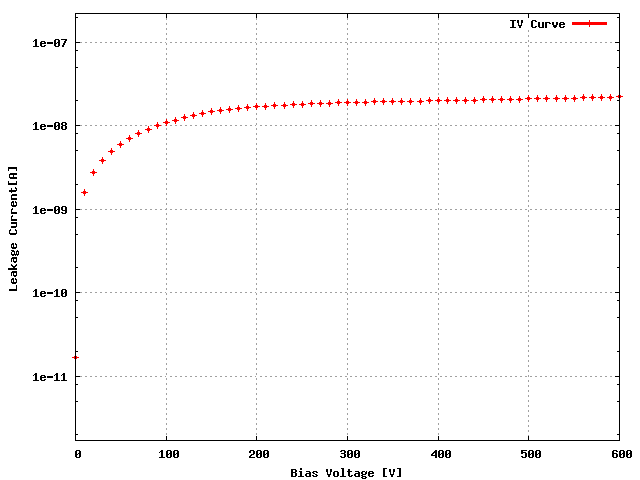

Sensor: S_1x2L_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X94KFJT | 64C |
| ROC1 | X94KFJT | 64D |
| Ibias_DAC, Ibias_DAC Data | 132 | 144 |
| Vana, VanaData | 127 | 132 |
| CalDelData and plots | 94 | 79 |
| VthrCompData and plots | 83 | 85 | Depletion Voltage is -44 and suggested operational voltage is -84
| TestDdata ,TestD Plots | 2 | 0 |
| LightData ,Light Plots | 2 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP
![[IMAGE] of](P_1x2L_066_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_066_C-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 130 | 140 |
| Vsf | 135 | 140 |
| VoffsetOp | 65 | 65 |
| VIbias_PH | 95 | 100 |
| ROC0 NOISE | ![[IMAGE] of](P_1x2L_066_C-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_066_C-580-noise-ROC0-HISTO.jpg) | MEAN = 4.772598SIGMA = 0.411320 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2L_066_C-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_066_C-580-noise-ROC1-HISTO.jpg) | MEAN = 4.809128SIGMA = 0.410571 |
Comment (if any): Good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:21 AM
