![[IMAGE] of](P_1x2L_064_C_IV.jpg)
| IV_XML-File |

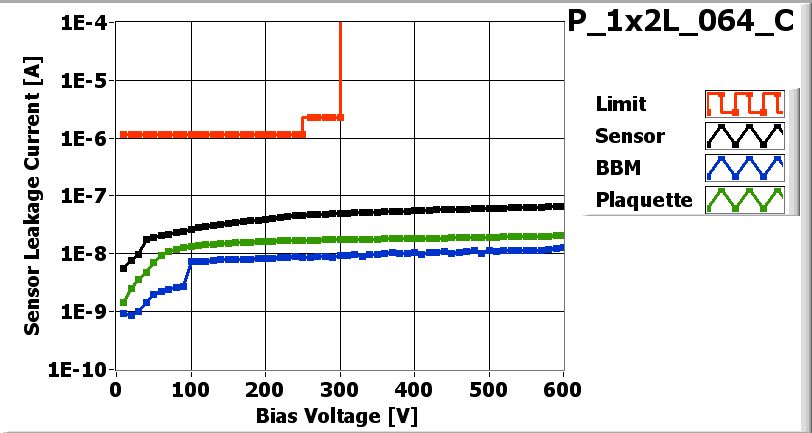

| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2L_064_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 4/4/2007
| Part | ID |
|---|---|
| BBM | BBM_064-1x2T |
| VHDI | 1x2L_255 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XH4KFBT | 27B |
| ROC1 | XH4KFBT | 28A |
Inspected by Lockwood Gale on date 4/6/2007
| LR_dev | 0.060 |
| LL_dev | 0.072 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/6/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/9/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/9/2007 by Ozhan Koybasi
P_1x2L_064_Con 4/11/2007 12:36 PM
P_1x2L_064_Con 4/11/2007 12:36 PM
PLAQUETTE TESTED on 2007-04-11 by Cameron McKinney
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 134 | 130 | |
| Vana | 134 | 121 | |
| Cal_Del | 84 | 103 | |
| Vthrs_Comp | 66 | 72 | |
| Unbumped | 0 | 7 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 7 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2L_064_C_Ibias-dac.jpg) |

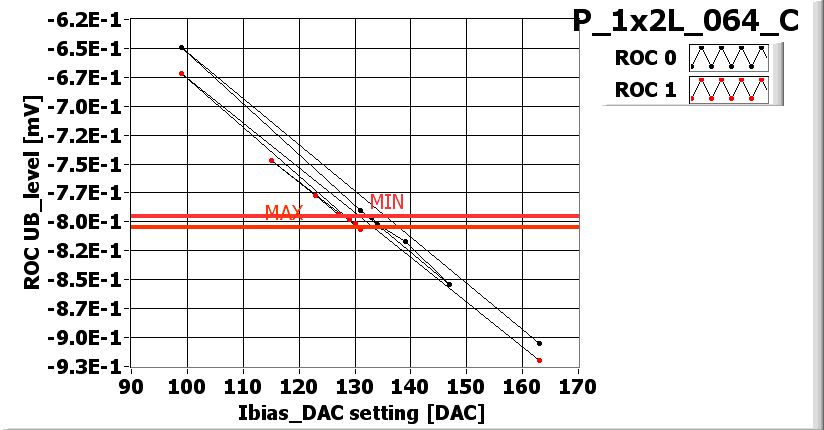

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2L_064_C_Vana.jpg) |

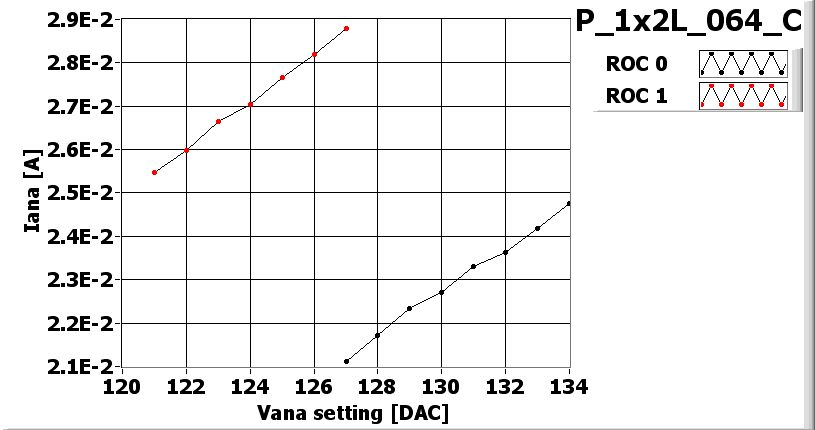

VANA_XML-File |
![[IMAGE] of](P_1x2L_064_CDead-PixelAlivetest.jpg){kind=tracking} |

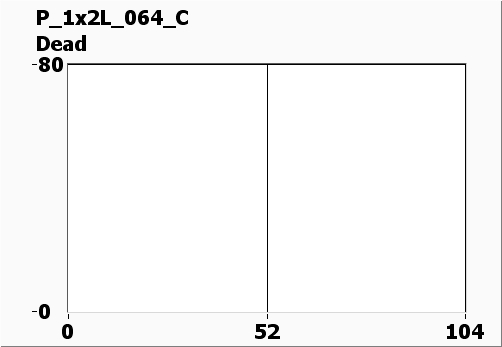

DEAD_XML-File |
![[IMAGE] of](P_1x2L_064_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_064_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_064_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 125 |
| Vsf | 140 | 135 |
| VoffsetOp | 65 | 60 |
| VIbias_PH | 105 | 105 |

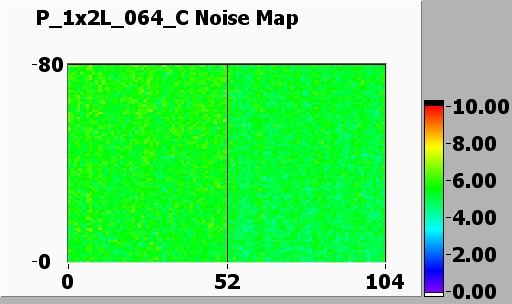

Noise MAP
![[IMAGE] of](P_1x2L_064_C-580-noise.jpg)

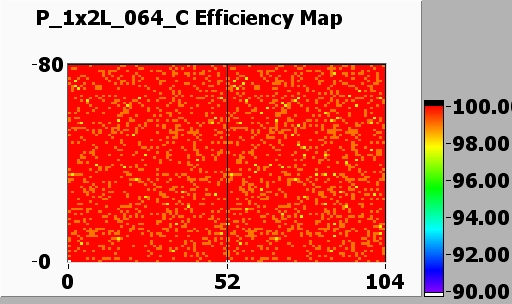

Efficiency MAP
![[IMAGE] of](P_1x2L_064_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
