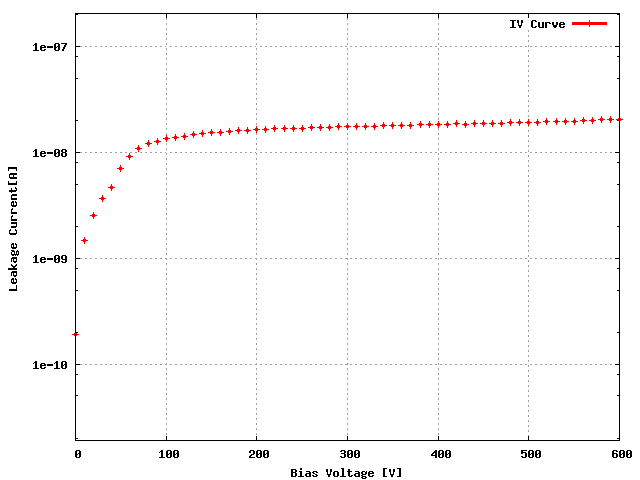

Sensor: S_1x2L_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XH4KFBT | 27B |
| ROC1 | XH4KFBT | 28A |
| Ibias_DAC, Ibias_DAC Data | 134 | 130 |
| Vana, VanaData | 134 | 121 |
| CalDelData and plots | 84 | 103 |
| VthrCompData and plots | 66 | 72 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 4 |
| LightData ,Light Plots | 0 | 7 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP
![[IMAGE] of](P_1x2L_064_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_064_C-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 95 | 125 |
| Vsf | 140 | 135 |
| VoffsetOp | 65 | 60 |
| VIbias_PH | 105 | 105 |
| ROC0 NOISE | ![[IMAGE] of](P_1x2L_064_C-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_064_C-580-noise-ROC0-HISTO.jpg) | MEAN = 5.521087SIGMA = 0.449282 |

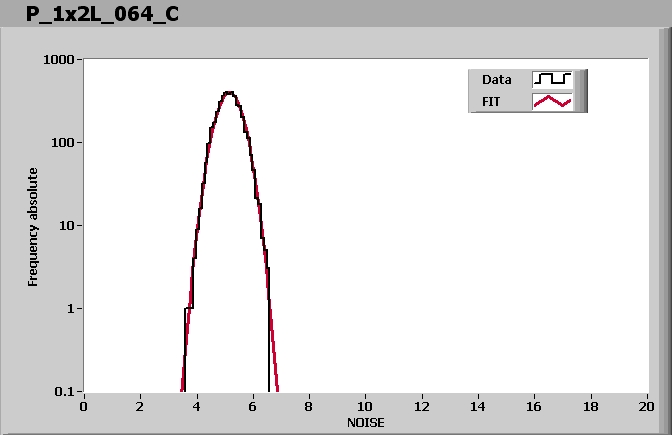

| ROC1 NOISE | ![[IMAGE] of](P_1x2L_064_C-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_064_C-580-noise-ROC1-HISTO.jpg) | MEAN = 5.156245SIGMA = 0.416038 |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:54 PM
