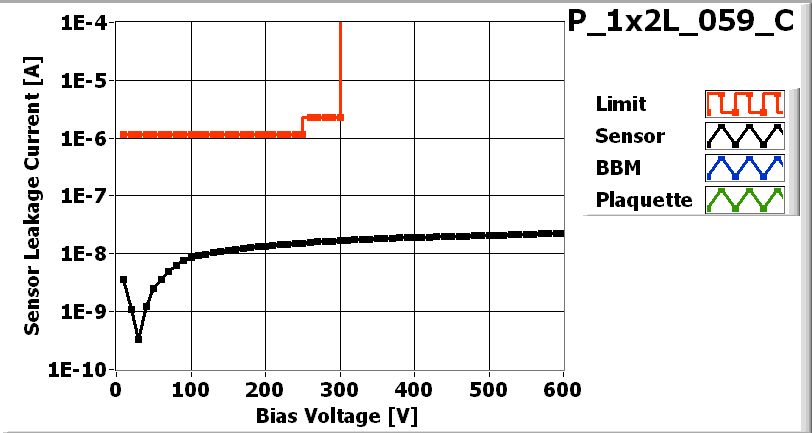

![[IMAGE] of](P_1x2L_059_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2L_059_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 52 V |
| Operational Voltage 92 V |
Parts committed by Bolla Gino on date 10/5/2006
| Part | ID |
|---|---|
| BBM | BBM_059-1x2T |
| VHDI | 1x2L_238 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XF4K3JT | 20C |
| ROC1 | XF4K3JT | 43D |
Inspected by Arndt Kirk on date 10/6/2006
Inspected by Arndt Kirk on date 10/6/2006
Inspected by Bolla Gino on date 10/6/2006
Inspected by Arndt Kirk on date 10/6/2006
| LR_dev | 0.036 |
| LL_dev | 0.052 |
| FINAL COMMENT by Arndt Kirk | No assembly problems No assembly problem. No wirebonding problem, second time ROC1 pads wirebonded (reworked BBM) = irregular shaped bond feet on ROC1, all wirebonds look OK |
PLAQUETTE made READY for testing on 10/6/2006 by Arndt Kirk
PLAQUETTE TESTED on 2006-10-06 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 157 | 142 | |
| Vana | 124 | 133 | |
| Cal_Del | 89 | 91 | |
| Vthrs_Comp | 82 | 71 | |
| Unbumped | 92 | 16 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 92 | 16 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

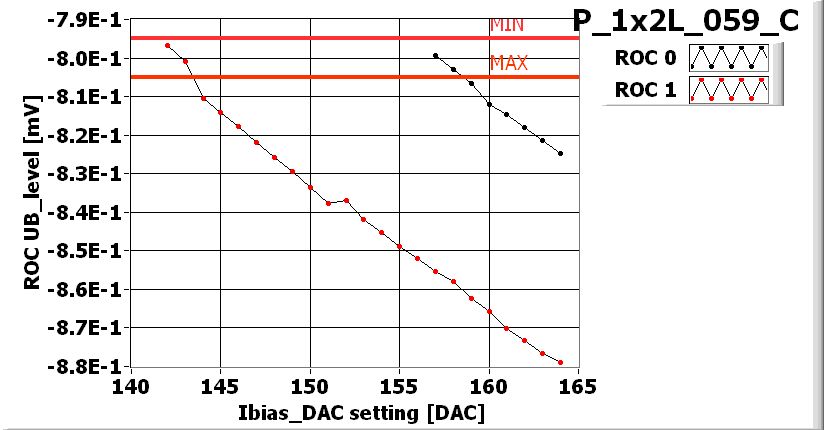

![[IMAGE] of](P_1x2L_059_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

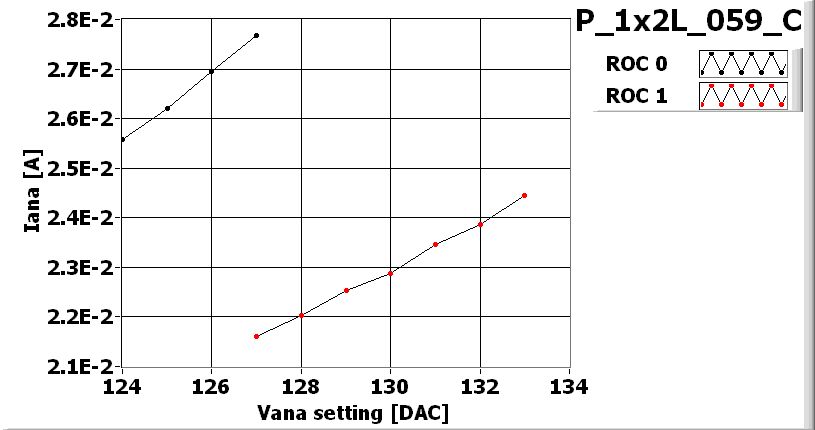

![[IMAGE] of](P_1x2L_059_C_Vana.jpg) |
VANA_XML-File |

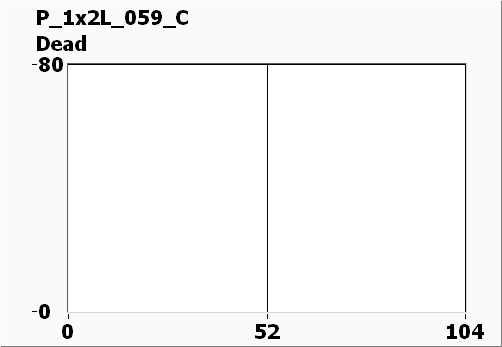

![[IMAGE] of](P_1x2L_059_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_059_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |

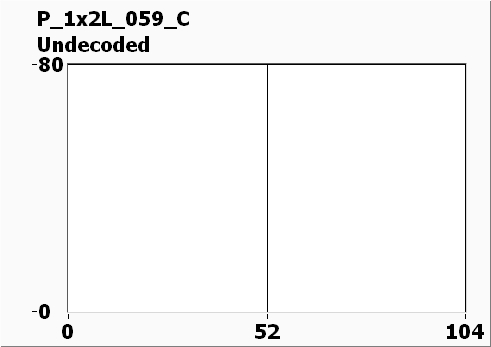

![[IMAGE] of](P_1x2L_059_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_059_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
