BBM_059-1x2T

RECEIVED by Bolla Gino on date 10/5/2006 From RTI

ROC	ROC wafer	Label
ROC0	XF4K3JT	20C
ROC1	XF4K3JT	43D

Inspected by Bolla Gino on date 10/5/2006

Picture	Comment
	ROC 20C is now ROC0 as of documentation from RTI
	looks like there are some shadow or residues on the ROC that has been replaced. This was visible also on the previous picture.
	This is a picture on ROC1 just to show the feet of the wirebonds left from the first assembly. It also show how the colors on the ROC seems to be quite different but similar residues as in ROC0 are visible.
	some dirt on the GR and AA close to row 0 between the two ROCs

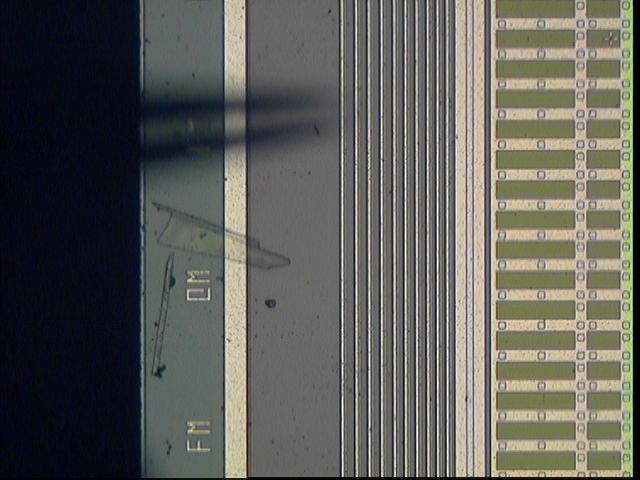

	picture showing some left over of an unknown layer close to the first column of the first ROC. Similar but smaller things are visible along the whole periphery of the sensor.

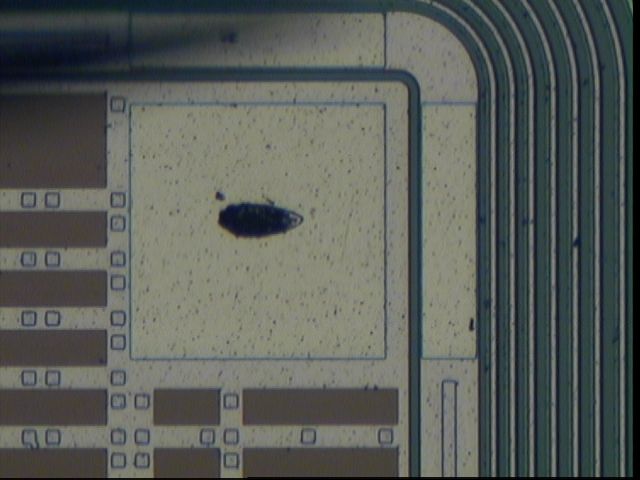

	FOOT of the wirebond on the sensor left over from first assembly

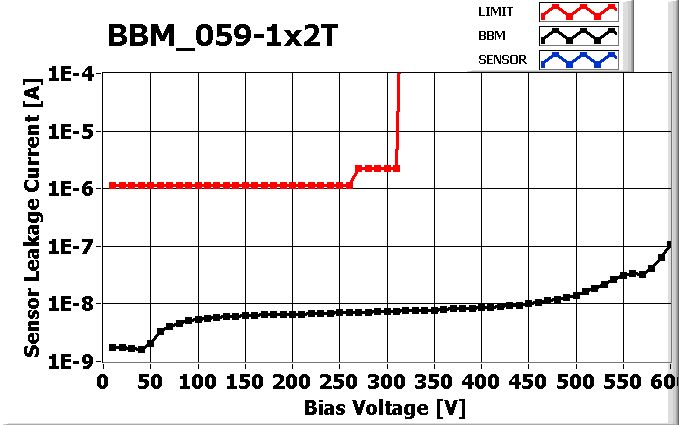

IV Measured by Bolla Gino on date 10/5/2006

IV XML File

DEVICE ready for Plaquette assembly

ACCEPTED by Bolla Gino on date 10/5/2006

committed to PLAQUETTE P_1x2L_059_C by Bolla Gino on date 10/5/2006
