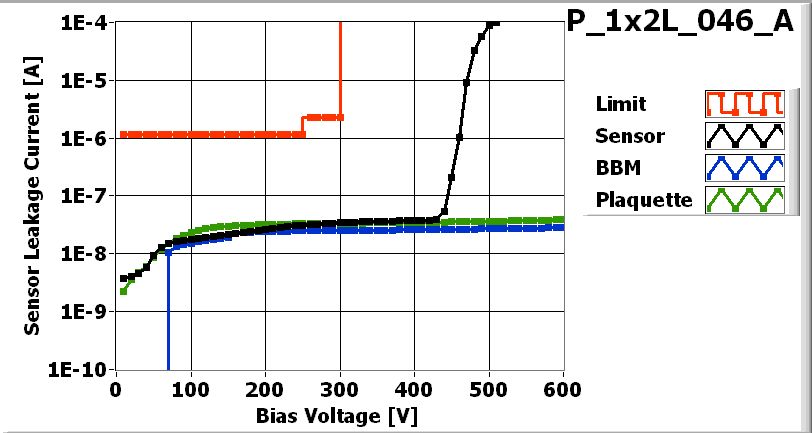

![[IMAGE] of](P_1x2L_046_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2L_046_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Isaac Childres on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_046-1x2T |
| VHDI | 1x2L_268 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W36_XD4K3LT | 03D |
| ROC1 | W36_XD4K3LT | 03C |
Inspected by Lockwood Gale on date 5/23/2007
| LR_dev | 0.075 |
| LL_dev | 0.087 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/23/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/23/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/23/2007 by Perera Rajiv
P_1x2L_046_Aon 5/24/2007 2:49 PM
P_1x2L_046_Aon 5/24/2007 2:49 PM
PLAQUETTE TESTED on 2007-05-24 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 154 | 146 | |
| Vana | 142 | 131 | |
| Cal_Del | 85 | 91 | |
| Vthrs_Comp | 88 | 69 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2L_046_A_Ibias-dac.jpg) |

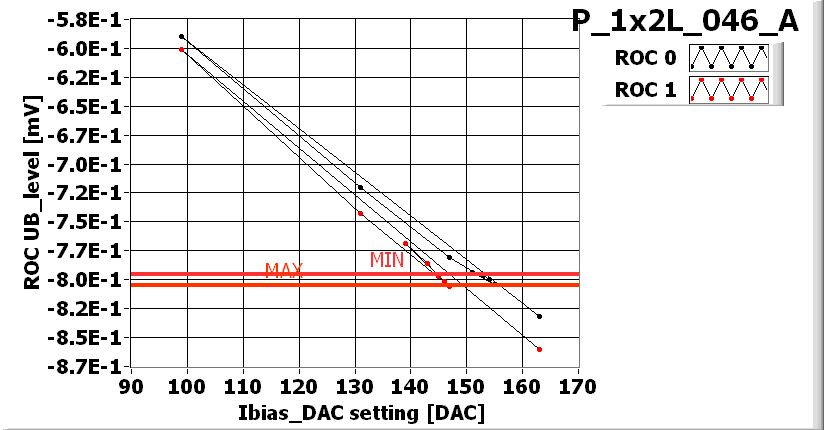

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2L_046_A_Vana.jpg) |

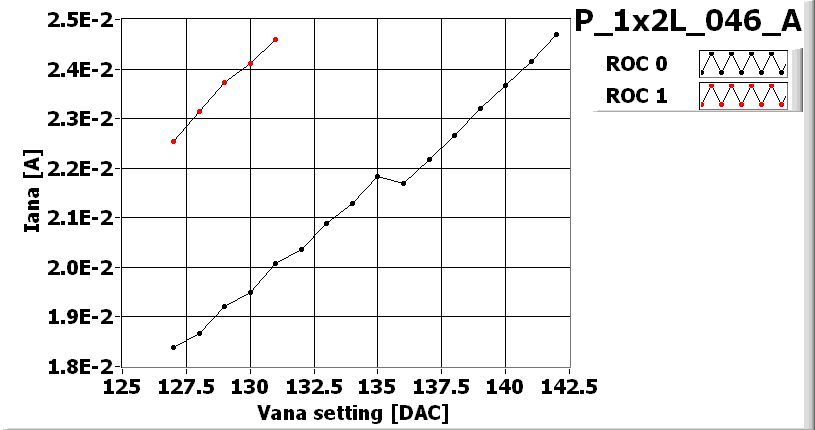

VANA_XML-File |
![[IMAGE] of](P_1x2L_046_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_046_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_046_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_046_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 115 |
| Vsf | 140 | 135 |
| VoffsetOp | 85 | 65 |
| VIbias_PH | 105 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_1x2L_046_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_046_A-580-efficiency.jpg)

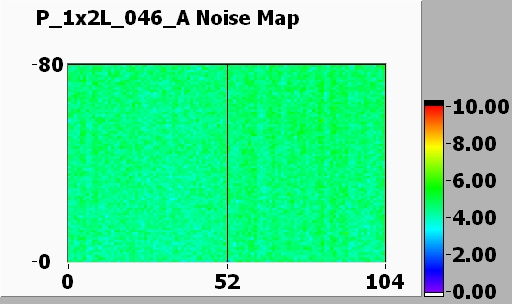

Noise MAP at -200 V
![[IMAGE] of](P_1x2L_046_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_046_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
