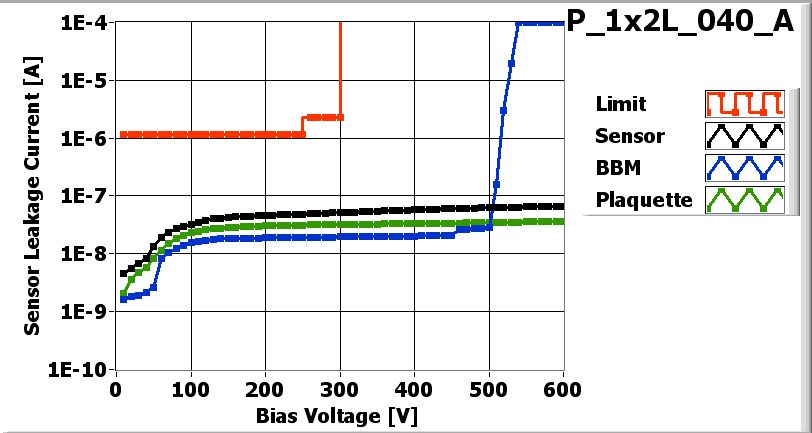

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2L_040_A_LASER.jpg)

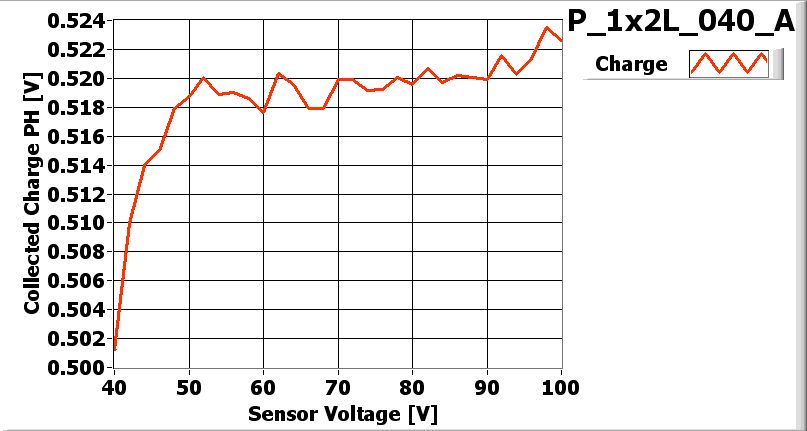

| LASER_XML-File |
| Depletion Voltage 52 V |
| Operational Voltage 92 V |
Parts committed by Isaac Childres on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_040-1x2T |
| VHDI | 1x2L_267 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K3HT | 53D |
| ROC1 | W33_XC4K5LT | 03A |
Inspected by Lockwood Gale on date 5/21/2007
| LR_dev | 0.059 |
| LL_dev | 0.063 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Released pusher before releasing joining force. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/21/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/21/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/21/2007 by Perera Rajiv
P_1x2L_040_Aon 5/22/2007 11:02 AM
P_1x2L_040_Aon 5/22/2007 11:02 AM
PLAQUETTE TESTED on 2007-05-22 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 158 | 144 | |
| Vana | 133 | 137 | |
| Cal_Del | 86 | 86 | |
| Vthrs_Comp | 73 | 92 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2L_040_A_Ibias-dac.jpg) |

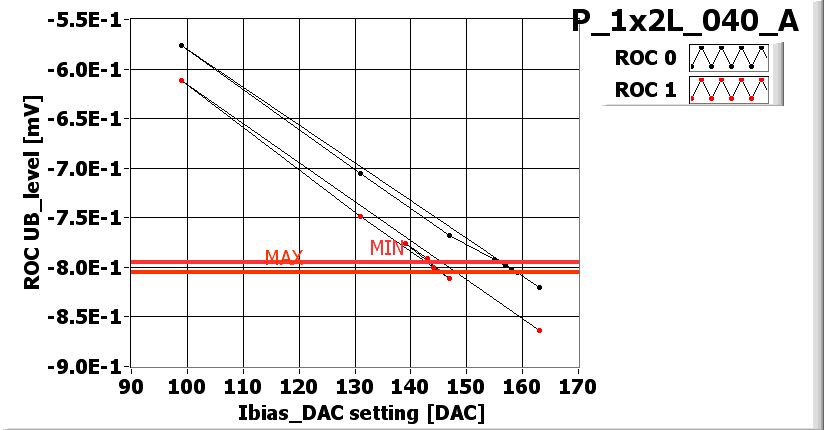

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2L_040_A_Vana.jpg) |

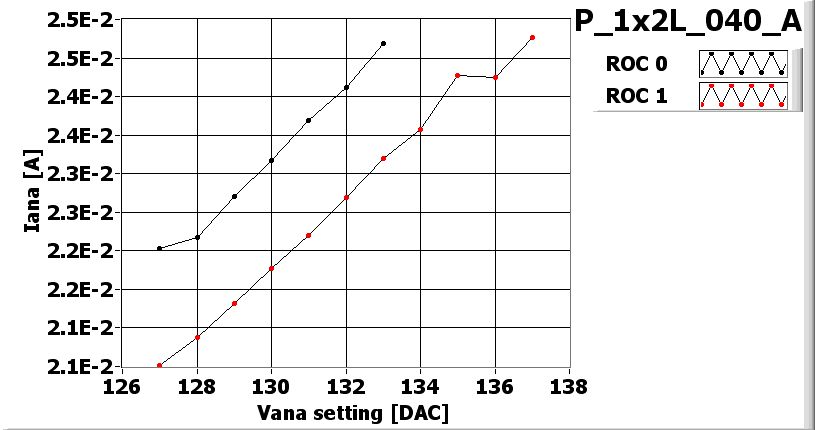

VANA_XML-File |
![[IMAGE] of](P_1x2L_040_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_040_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_040_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_040_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 110 |
| Vsf | 140 | 140 |
| VoffsetOp | 70 | 95 |
| VIbias_PH | 95 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_1x2L_040_A-580-noise.jpg)

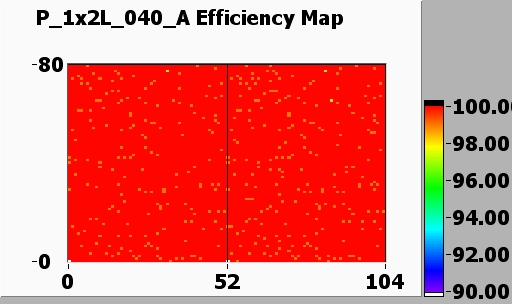

Efficiency MAP
![[IMAGE] of](P_1x2L_040_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_1x2L_040_A-200-noise.jpg)

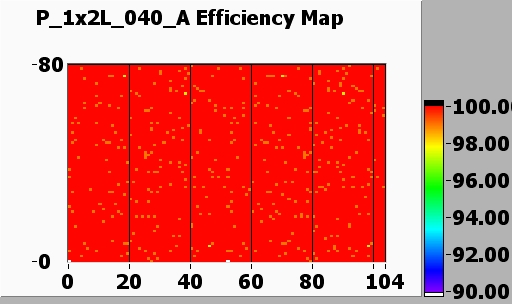

Efficiency MAP
![[IMAGE] of](P_1x2L_040_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
